Aplex TB-587 User Manual

Machine vision lighting & i/o control board
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TB-587
Machine Vision
Lighting & I/O Control Board

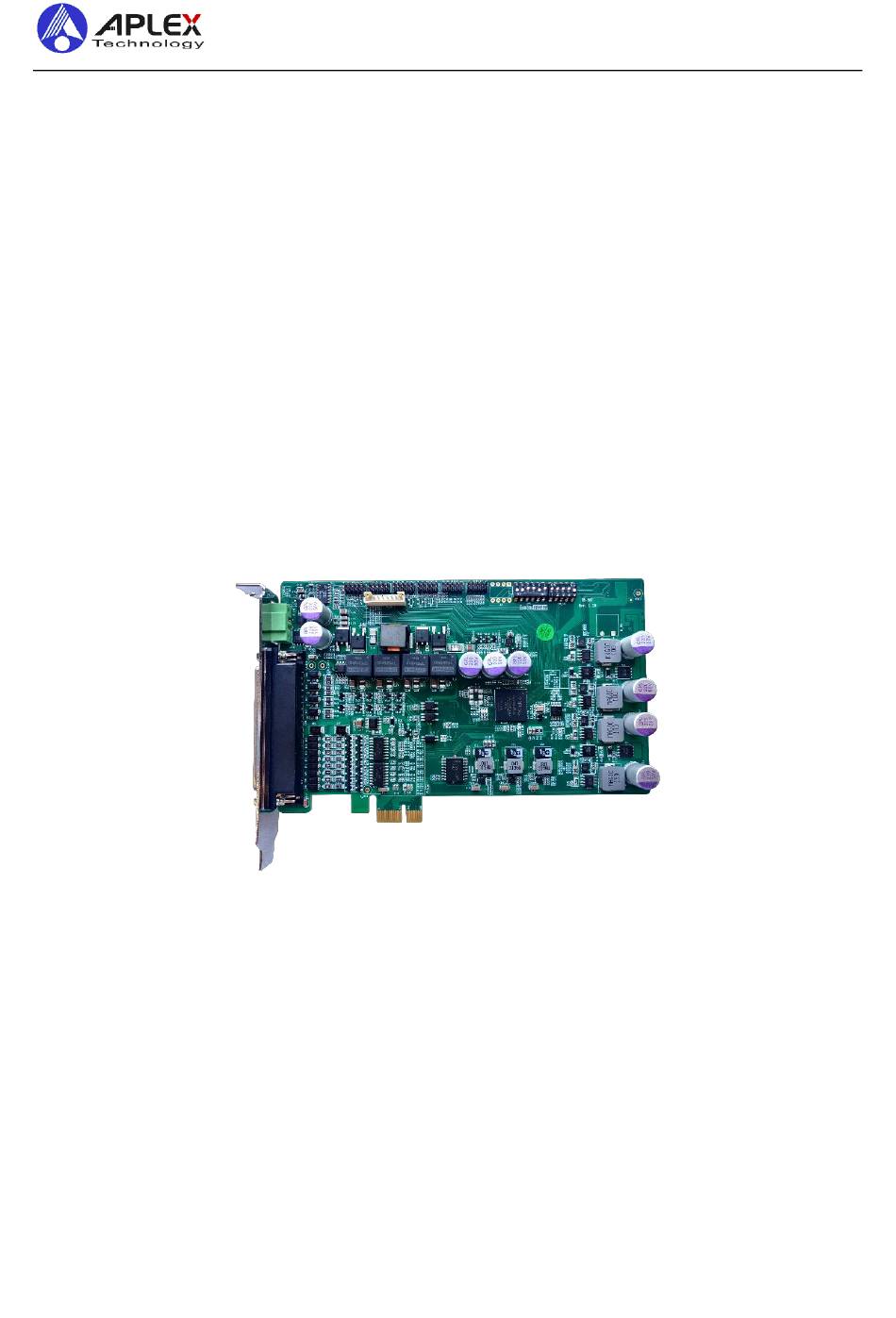

User Manual
Version：V1.10（20201209）

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TB-587 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aplex TB-587

  • Page 1 TB-587 Machine Vision Lighting & I/O Control Board User Manual Version：V1.10（20201209）...

  • Page 2: Table Of Contents

    2. DC_IN1 (Internal) option:........................- 6 - 3. DC_IN2 (External) default: ......................... - 6 - 4. SW1(TB-587,Internal of Expansion Board): ..................- 7 - 5. PWR_SW(TB-587,Internal): ........................ - 7 - 6. External Trigger/Lightinh Source Output Control Interface (LIGHTING_OUT，External) : ....- 8 - 7.

  • Page 3: Disclaimer

    Note：Shipping accessories are based on customer requirements. 2 Disclaimer The information in this manual is subject to change without notice. For the latest information, consult your supplier. Under no circumstances will Weizhun Electronic Technology (Shenzhen) Co., Ltd. be responsible for any type of hidden defect or damage (whether indirect or incidental) caused by improper use or improper installation of products.

  • Page 4: Product Introduction

    5 Product Introduction TB-587 uses FPGA and is designed with the base of effective time and logic judgment, it offers 4 x lighting connector, 4 x trigger in，4 x trigger out, 8 x DI 8 x DO isolation, NPN/PNP mode Selection. It is used widely in vision inspection business in industrial automation field, and can extremely enhance the production effectiveness and product quality.

  • Page 5: Structural Dimension Drawing

    5.2 Structural Dimension Drawing 5.2.1Expansion card interface position (front) 5.2.2Expansion card interface position (reverse) - 5 -...

  • Page 6: Fpga (Internal)

    5.3 Jumpers and Connectors Introduction 1. FPGA(Inner): Onboard FPGA Chipset 2. DC_IN1 (Internal) option: (Pitch 5.08mm 1x2 Pin Connector), DC24-36V power input for Lighting using. Before plug in this Phoenix Connector, please make sure that the power polarity is correct. The more Power consumption for system, the high power adapter will be needed.

  • Page 7: Sw1(Tb-587,Internal Of Expansion Board)

    Caution：DC_IN1 and DC_IN2 either one. It`s not allowed to use at the same time, or the circuit will be burnt out. 4. SW1 (TB-587, Internal of the expansion card): Dip switch ，Pin1 to 4 and Pin6 are reserved for debug use.
  • Page 8 6. External Trigger/Lighting Source Output Control Interface (LIGHTING_OUT, External): (Pitch2.5mm 1x2 Pin Connector, PN#H510M02 Terminal), +DC14~24V Output, maximum power supply up to 60 Watt for total; single channel power supply up to 30 Watt. DC level adjustable mode should be concerned with high-level shaking situation. * Power input for lighting using shall be higher than 80 Watts, and the output voltage shall be between +DC24V~36V.

  • Page 9: Tb-587-Db37

    CTRL_IN2_P CTRL_OUT1_N CTRL_IN1_N CTRL_OUT1_P CTRL_IN1_P 8. TB-587-DB37: Standard DB37 Female connector inserts, 4 x Trigger In (4x dedicated input channels, 24V differential signal, with isolated.) TI1+,TI1-, TI2+,TI2-,TI3+,TI3- ,TI4+,TI4- ---Combined to DB-37connector 4x Trigger Out (4x dedicated output channels, 24V differential signal, with isolated.)
  • Page 10 GPIO1: Phoenix Terminal Connector, Signals define as below: Signal Pin# Pin# Signal CTRL_IN1P CTRL_OUT1_P CTRL_IN1N CTRL_OUT1_N CTRL_IN2P CTRL_OUT2_P CTRL_IN2N CTRL_OUT2_N CTRL_IN3P CTRL_OUT3_P CTRL_IN3N CTRL_OUT3_N CTRL_IN4P CTRL_OUT4_P CTRL_IN4N CTRL_OUT4_N 24V_GND_GPIO GND_24V_GPIO GP_IN1 GP_OUT1 GP_IN2 GP_OUT2 GP_IN3 GP_OUT3 GP_IN4 GP_OUT4 GP_IN5 GP_OUT5 GP_IN6 GP_OUT6 GP_IN7...
