Summary of Contents for Denali DAI-MONITRON-ENCL

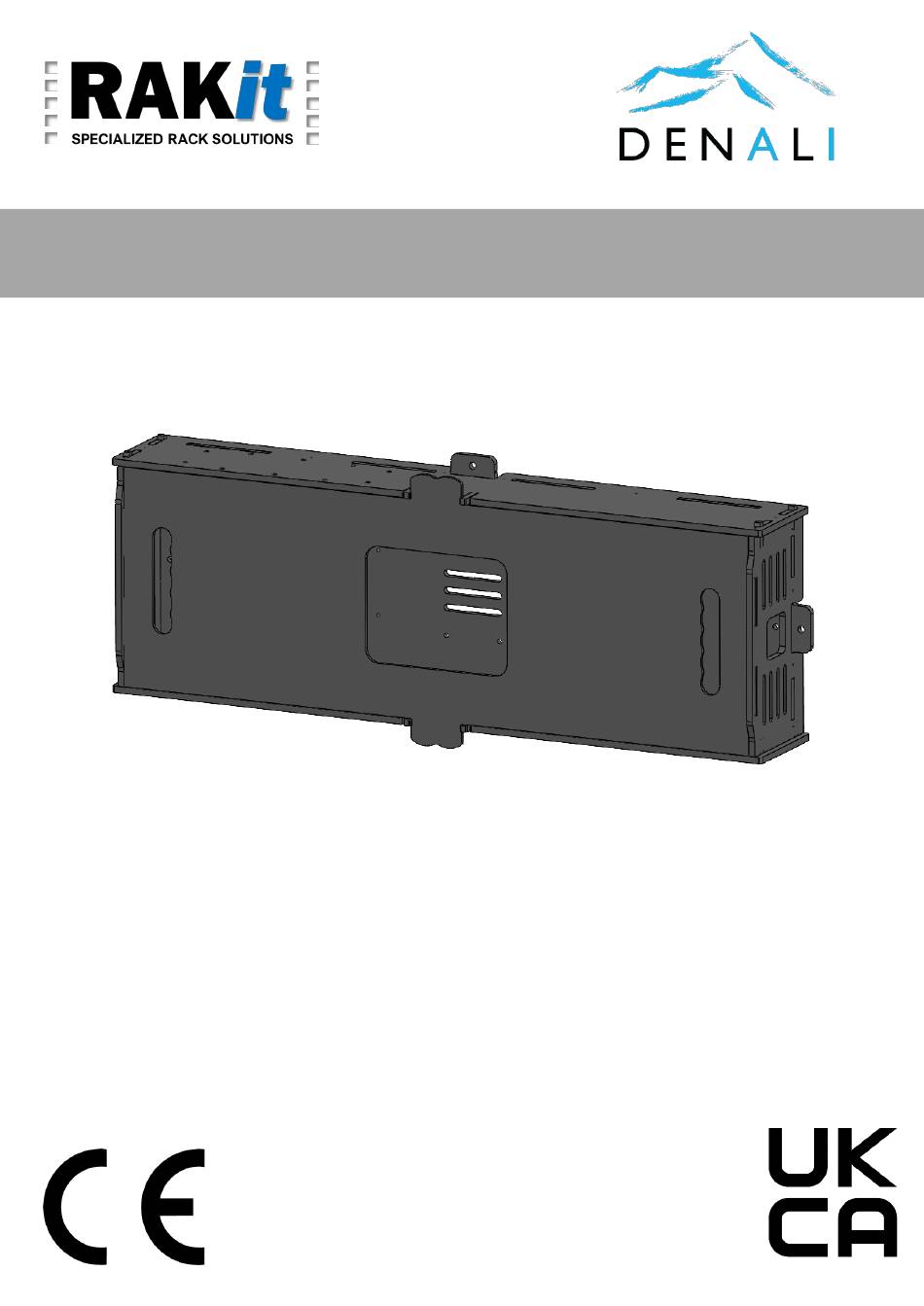

- Page 1 RACKIT – MONITRON ENCLOSURE User Manual SKU#: DAI-MONITRON-ENCL Initial Release: August 2022...
-
Page 2: Safety Instructions
It has a low attenuation to Bluetooth and Wi-Fi signals and is well-ventilated for optimal cooling of equipment. Product Improvements Denali Advanced Integration has a policy to continuously improve its product design. All specifications and designs are subject to change without notice. - Page 3 Features • Stores suitable equipment for the operation of the AWZ Monitron Gateway. • Lightweight and heavy-duty enclosure. • Components can be easily configured prior to mounting or after mounting. • Highly adaptable mounting capabilities to most structural supports (mounting equipment not included).
-
Page 4: Equipment Installation
Equipment Installation Below are the steps for the installation of the equipment. The configuration and connection of the equipment is not part of this manual and should be undertaken by a professional person. Note: Thin Client, PoE injector and Monitron Gateway are not provided with the Monitron Enclosure Install the Thin Client &... - Page 5 Install the Monitron Gateway Remove the 4 flat head black screws from the white nylon spacers. Put the Monitron Gateway support plate on the white Nylon spacers and install back the 4 screws. Note: a TORX screwdriver or wrench is needed for this operation. Figure 4.
- Page 6 Connect the Equipment as appropriate Connect the equipment as appropriate and connect the PDU cable to a C13 plug. Figure 6. Proposed connections and cables path Install the Front Cover of the Monitron Enclosure Apply the front cover on the Monitron Enclosure and press smoothly and firmly to fix it in its position.
-
Page 7: Mounting Options
Mounting Options The Monitron Enclosure can have a large number of adaptive mounting options depending on mounting location and needed use. Below are some proposed mounting options. The Monitron Enclosure should be mounted by professional persons since it may fall causing serious injury or death. Note: Mounting fasteners, struts, clamps are not provided with the Monitron Enclosure. - Page 8 Below you can find some mounting options. Figure 9. Monitron Enclosure mounting options...
-
Page 9: Technical Specifications
Limitation of Liability In no event shall the liability of DENALI AI (or their officers, employees, or agents) for any damages (direct, indirect, incidental, consequential, or otherwise), loss of profits, loss of business, arising out of or related to the use of the product exceed the... - Page 10 Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy this equipment from DENALI AI, they are entitled to: Send old similar equipment for recycling on a one-for-one, like-for-like basis Send the new equipment back for recycling when it becomes obsolete.
