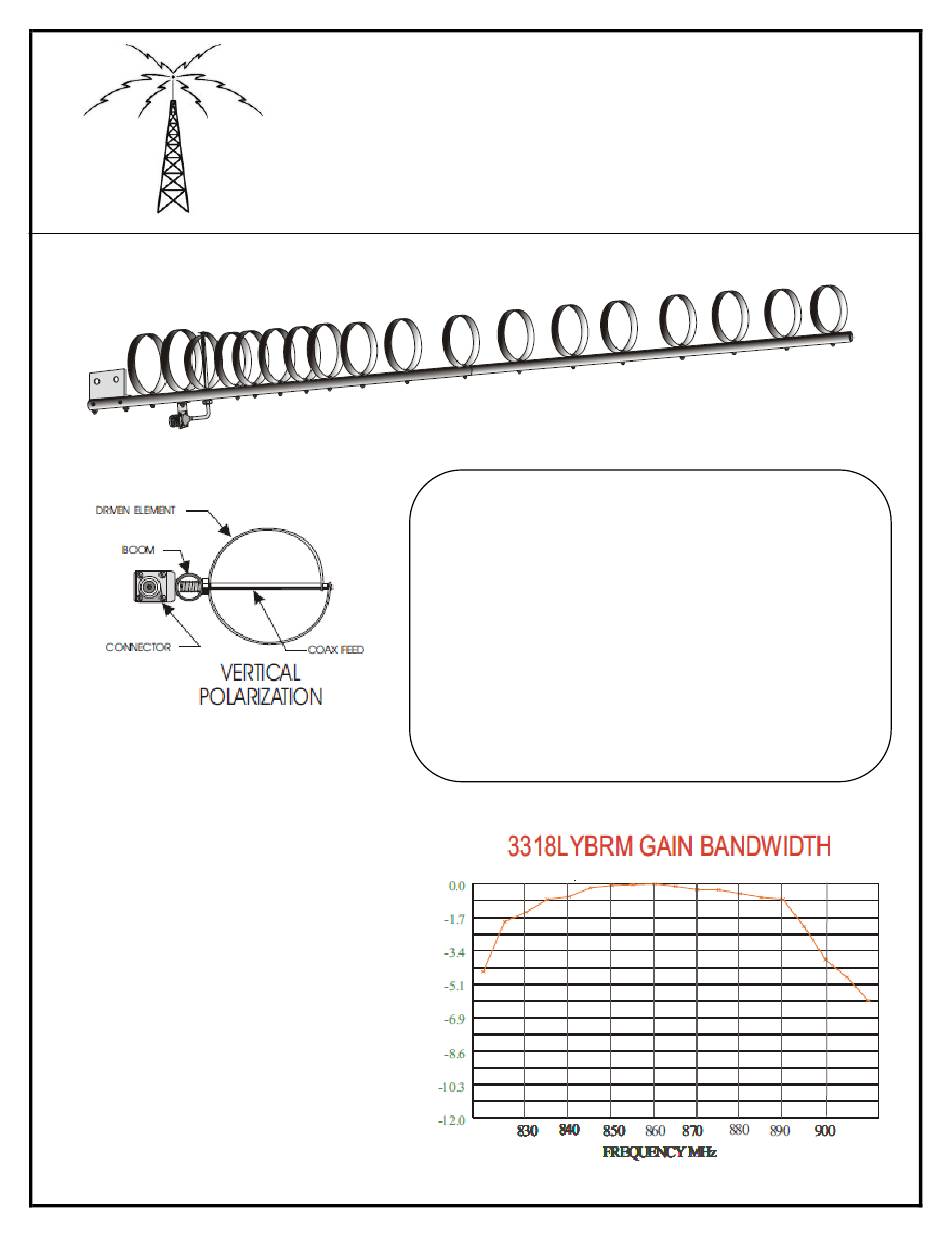

Cellular Loop Yagi (Rear Mount), Model DSE3318LYBRM
The DSE3318LYBRM has been designed to
produce very high gain from 826 to 896
MHz and will find many uses in improving
performance in marginal areas. Special
care has been given to produce an
antenna that combines extremely high
forward gain with no compromise in
antenna pattern.
DSE3318LYBRM Rev 4/14
Directive Systems & Engineering
2702 Rodgers Terrace
Haymarket, VA 20169-1628
www.directivesystems.com
703-754-3876
Frequency Range:
Number of elements:
Boom Length:
Boom diameter:
Mast diameter:
Weight:
Connector:
Gain:
3 dB Beamwidth (E Plane):
F/B ratio:
Maximum Power:
Stacking Distance:
SPECIFICATIONS
H Plane
E
Plane
826-896 MHz
18
726 inches
1 inch
1 1/2 inch max.
5 lbs
(8 lbs shipping)
Type N female
18.5 dBi
28°
>20 dB
550 W. average
18 inches vertical
21 in. horizontal
