MM ECO PICK-UP 500L and MM ECO PICK-UP 1000L

Advertisement

Table of Contents
loading

Summary of Contents for MM ECO PICK-UP 500L

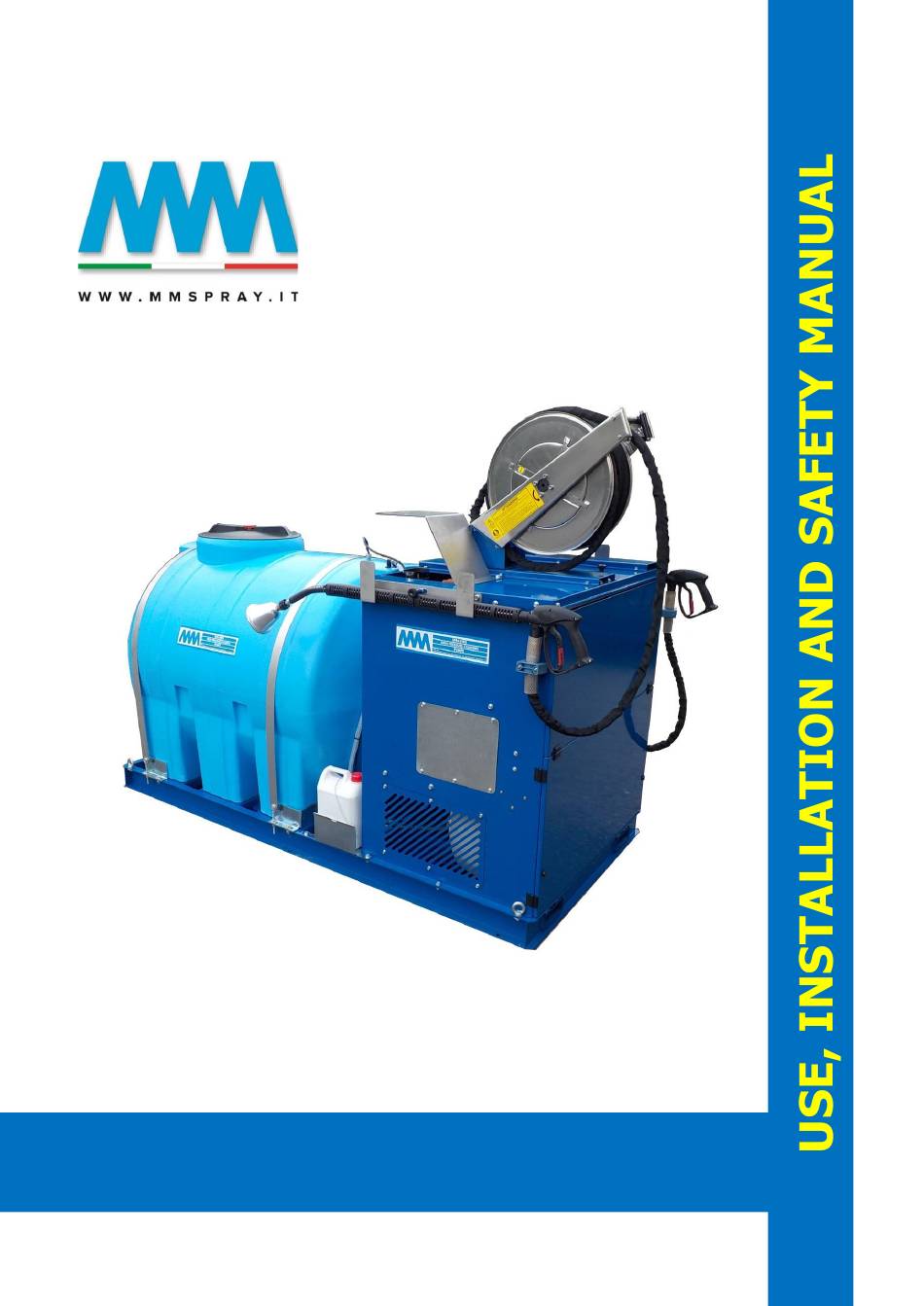

  • Page 1 MM ECO PICK-UP 500L and MM ECO PICK-UP 1000L...

  • Page 3: Intended Use

    INTRODUCTION Thank you for choosing a quality product MM. Several years of experience led us to the creation of a multifunction machine for the ecological steam weeding and the hot water high pressure cleaning. Every machine is carefully tested and inspected before leaving our factory to assure you the right operation.
  • Page 4 WARNING SIGNS ON THE MANUAL AND ON THE MACHINE Below are all the pictograms applied to the machine in order to illustrate the warnings, prohibitions and the correct methods of use. Legend of the symbols 1- Read the use and maintenance manual 2- Stop the machine and read the manual before performing any intervention 3- Injury hazard.

  • Page 5: Characteristics And Technical Data

    CHARACTERISTICS AND TECHNICAL DATA This booklet is valid for multipurpose machines, ECO PICK-UP type for steam weeding, steam disinfection, high pressure washing with hot water. These multipurpose machines manufactured by M.M. srl are uniquely identifiable from the CE plate, upon which the data, main characteristics and serial number are printed.

  • Page 6: Noise Level Of The Machine

    NOISE LEVEL OF THE MACHINE The level of the sound pressure at the user’s position is of Lp = 82 (+ /0.5) dB (A) The level of the acoustic power measurement is of Lw = 92 (+ /0.5) dB (A) The sound pressure level is raised in accordance with the standards in IEC 60704-1:2021 and UNI EN ISO 3744:2010.

  • Page 7: Safety Rules

    SAFETY RULES The worker must wear long clothing, gloves, safety goggles and earmuffs. However the waterproofing protective clothing don’t provide protection against jets of water. In case of direct contact with the water high pressure jet, they don’t give a sufficient protection against the risk of injury During the transport and the use the machine has to be anchored to the floor of the vehicle or of the trailer in four points.
  • Page 8 Caution: when the machine is operating, all the exposed metallic parts where the steam circulates (nozzles, hose reels, weeding shield, booms, etc.) can cause burn. Always use appropriate cloche and protective gloves Put the MM unit in a place that is: - protected from cold - well-ventilated...
  • Page 9 Dispose of the waste oil and exhausted products in accordance with the environmental rules. Store them in an enclosed space and then take them to the closer storage. Don’t dumping and don’t empty it in the ground or in the drains. The maximum pressure of work for the weeding with water at a temperature of more than 80 °C doesn’t have to overcome 20 BAR Don’t enter in the working area of the machine (about 10m)
  • Page 10 The user has not done the normal periodical maintenance operations shown in the table to the authorized maintenance section. The machine is equipped with accessories or components not given by MM or not original. The operator doesn’t respect the indications and the instruction of the manual.
  • Page 11 SAFETY RULES: • Make sure that the lifting means are proper to support the weight • Make sure that there is sufficient space to move the machine in height. • Make sure that there is sufficient space to turn and/or to operate the trailer on which the machine is placed.
  • Page 12 PLACEMENT ON MOTORIZED VEHICLE OR ON TRAILERS For the placement on trailers make reference to the point above where characteristics and dimensions are indicated. Make sure that the weight at full load is compatible with the characteristics of the means of transport used. The fixing of this unit on the means of transport has to be done by qualified person who knows the specific features of the mean of transport.

  • Page 13: Description Of The Machine

    The filter prevents the pump to suck impurities. It is supplied with a yellow or red cap and allows to be cleaned with the full tank thanks to a valve that also allows to suck water from an external source The minimum diameter of the suction pipe (not fitted) is of 20 mm. PRESSURE REGULATOR (pos. 18) The pressure regulator allows the pressure regulation shown on the pressure gauge (pos.
  • Page 14 VALVES (Pos. 4) Two stainless steel ball valves allow to open or close the water/steam supply to the lances or to the booms. THERMOSTAT / THERMOMETER (Pos. 5) The thermostat / thermometer indicates the working temperature shown in red on the display. The thermostat / thermometer allows to adjust the desired working temperature in green indicated on the display The machine is fitted with the thermostat create to operate at a temperature between 40 °...
  • Page 15 HOSEREEL – OPTIONAL (Pos. 21) Specific techniques: automatic spring or manual hosereels for 20m of insulated pipe for the washing and steam weeding. Pay attention to your hand during the rolling up of the pipe and to the danger of burns. For any other information consult the instruction manual of the hose reel delivered with the machine.
  • Page 16 LANCE (pos. 14) The two lances fitted with the machine is proper to the weeding or the washing according to the accessories that the worker uses. Watering lances can be supplied on demand. The lances are equipped with swivel quick-couplings. The ring-nut has the only function to prevent the detachment of the accessories from the lance.
  • Page 17 SAFETY NORMS-GENERATOR never start the generator near petrol or fuel gas stations because of the potential danger of explosion Don’t fill the fuel tank while the motor is operating. Don’t smoke or use free fire near the fuel tank. Refuel (gasoline or diesel fuel o diesel), in well ventilated areas and with the machine off. Pay attention not to invert the two types of fuel.
  • Page 18 CONTROL, PROTECTION AND SAFETY DEVICES A) FLOW METER It starts and stops the burner during the opening and closing of the lance or the boom in order to avoid the overheating and to have a more constant temperature The flashing light (10) indicates an insufficient flow of water in the circuit when the steam outputs are open B) WATER SUPPLY FILTER Preserve the system from impurities like sand or rust.

  • Page 19: Starting The Generator

    STARTING PROCEDURE OF THE MACHINE The machine is provided with the level of the oil in the pump ready to use; however, it is necessary always to check it at the first operation. 1. Fill the tank with clean water till the level desired through the upper cap of the tank or through the floater placed in the upper part behind the tank.
  • Page 20 Follow one of the two procedures shows below to do the weeding or the washing: WEEDING MODE PROCEDURE To obtain the best weeding results you have to work with one or two weeding shields at the same time (one for each lance) or with a 40 cm boom on only one lance. The use with a weeding shield on a lance and the boom on the other lance doesn’t allow to reach the maximum temperature of work.
  • Page 21 USE OF THE ACCESSORIES FOR THE STEAM WEEDING The best using conditions and so the best weeding results will be obtained with the weeding shield very close to the ground in order to reduce as much as possible the heat dispersion. It is recommended to arrange the speed of the treatment according to the different types of ground (more or less flat), the density, the height or the type of weed you have to treat.

  • Page 22: Stopping The Machine

    IRRIGATION MODE You can operate with one or two lances equipped with head irrigation supply as optional Adjust the pressure of the pump at 20 BAR with the pressure gauge. 1) Connect the head to the lance using a quick connector. 2) Open the valves of the pipes you have to use.

  • Page 23: Precautions For Use

    EMERGENCY STOP OF THE MACHINE In case of emergency to stop the pressure water jet and/or the temperature, you have to release the lance and block it. Turn the generator’s key counter clockwise in OFF position (pos. 16). PRECAUTIONS FOR USE A) Make sure that the water supply is always sufficient.

  • Page 24: Maintenance

    MAINTENANCE the table below illustrates the checks and maintenance operations it is required to do on the machine and their frequency. CHECK FREQUENCY WHO MAKES WEAR / OBSTRUCTION OF NOZZLES / HOLES OF THE BEFORE EACH USE USER BOOM SEALING OF FITTINGS AND CLAMPS WHENEVER YOU USE IT USER INTEGRITY OF H.P.
  • Page 25 the inner side of the metallic box that protect the essential parts as the generator, pump, diesel tank, boiler…) doesn’t require a particular maintenance. Never use water jets, even those of the machine, to clean the inner and the external side of the machine. •...
  • Page 26 PROCEDURE TO FOLLOW FOR THE CHECKS CARRIED OUT BUY THE USER • Integrity of the high pressure pipes: visual check, in case of leakages or significant cracks contact your dealer. Never try to find with bare hands leakages of the high pressure pipe. The leakage of a high pressure or high temperature jet should not be visible but can cause serious damages.

  • Page 27: After Use

    A) Disconnect the inlet supply pipe of the machine and replace it with a hose of 1,5 m of length and 20 mm of inner diameter. B) Insert the loose end of the pipe in a container with a solution of 50% antifreeze and 50% water.
  • Page 28 1 x nozzle for one lance washing APPLICATORS 2 nozzles for washing with 2 lances 1 x rotating brush kit GENERAL mm 1020x1700x1160 (with 500L tank) DIMENSIONS OF THE FRAME mm 1020x2100x1600 (with 1000L tank) from 2 to 8 L/min for weeding...

  • Page 29: Problems And Solutions

    PROBLEMS AND SOLUTIONS All the maintenance operations must be done by qualified personnel, when the machine has been turned off and with proper wears and protection PROBLEM CAUSE SOLUTION GENERATOR Problem on the Read the manual of the Read the manual of the generator. generator.
  • Page 30 PROBLEM CAUSE SOLUTION The valves of the pump are dirty or worn. Clean or replace The seals of the pump are worn Replace The pressure is not The pump sucks air Check the supply pipes constant. Make sure that the flow rate is Water supply is insufficient proper for the pump Bearings are worn...

  • Page 31: Oil Burner

    PROBLEM CAUSE SOLUTION REGULATOR The lance isn’t completely closed. Adjust or repair the lance. The regulator operated and There are leakages in the high pressure circuit Repair the leakages disengages when The non-return valve of the regulator doesn’t the lance is not Replace the faulty parts completely close.
  • Page 32 The electrodes are faulty or they have moved. Repair or replace The motor of the burner is faulty. Repair or replace All the technical data are indicatives and they aren’t binding for per MM that can vary the, without any notice.
  • Page 37 180209-00...

  • Page 38: Warranty Conditions

    WARRANTY CONDITIONS The warranty doesn’t apply to the accessories or equipments which are not sold by M.M. The manufacturer’s responsibility is limited only to the substitution and/or the repairing of parts that, after inspection, present manufacturing defects or assembly defects. The warranty doesn’t apply to normal wear, poor maintenance, negligence or accident (see the manual of use) The warranty doesn’t apply to normal wear parts such as: seals, pistons, valves, hoses, lances, couplings, electrical parts or damages caused by transport.
  • Page 39 Warranty card Model: Date of purchased: Name of the buyer: Address: CAP: City : Stamp of the dealer...

  • Page 40: Declaration Of Conformity

    DECLARATION OF CONFORMITY We hereby declare that the following machine: MODEL: MULTIPURPOSE MACHINE TYPE: ECO PICK-UP 500, ECO PICK-UP 1000 NAME: "de-mount multi-function unit for the low pressure steam weeding and the warm water high pressure clearing” Conforms to the relevant and applicable rules of: 2006/42/EC (“Machine”...
  • Page 44 M.M. srl P.IVA/C.F. 02330550365 Via Raimondo Dalla Costa, 110 - 41122 Modena (Italy) Tel: +39 059 251654 Fax: +39 059 251711 e-mail: mm@mmspray.it sito: www.mmspray.it...
