NRD Staticmaster 4068 Installation, Operation & Maintenance Manual

Staticmaster

Overview

®

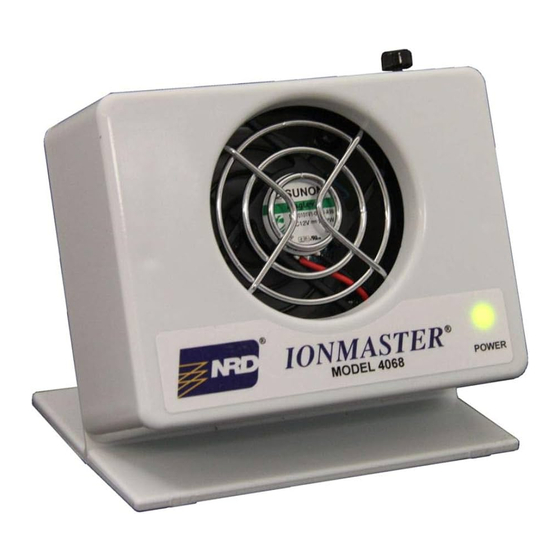

The Fan model 4068 ionizing fan is used to create airflow passing
®
by the Staticmaster model 2U500 ion cell. This system delivers
ionized air to neutralize static charge. The target's neutralization
time will be optimal when placed 1" to 6" directly in front of the
ionizing blower and will increase as the distance increases.

Installation

®
1. Locate the Staticmaster
• To allow the target to be put into the airflow at a distance of
1" to 6" from the Staticmaster
•
A working electrical outlet within reach of the 4' long de-
tachable cord that is supplied with the Staticmaster
2. Connect the barrel plug of the AC adapter to the receptacle in
the back of the Staticmaster
3. ®
Slide the Staticmaster model 2U500 into opening in top of
fan. When properly installed the body of the 2U500 will be
flush with the top of the fan. Note: the ground tab and label
tab will protrude from the top of the fan. See fig. 3.

Trouble Shooting Guide

Symptom
1. Static charges are not elimi-
nated.
2. Fan inoperative
Installation / Operation / Maintenance
®
Mini Low Air Flow Ionizing Fan
model 4068:
®
.
®
fig. 1
®
.
Probable Cause
Ion cell may be out of date and need to
be replaced.
Possible oil contamination of ion cell.
Ions generated are being recombined
before they reach the charged parts.
Loss of power.
NRD, LLC / 2937 Alt Boulevard / Grand Island, NY 14072
PHONE 716 773 7634 / FAX 716 773 7744 / EMAIL sales@nrdllc.com / WEB
NRD Asia Pte. Ltd
PHONE +65 6679 1707 / EMAIL sales@NRDasia.com / WEB www.nrdllc.com
Model 4068
Label Tab
2U500
Power button
Note: The Staticmaster
Refer to the Staticmaster
handling, cleaning, and disposal of this device.
4. Connect the AC adapter to a 120 VAC, 60 Hz electrical outlet.
5.
Turn the Staticmaster
located on the top of the unit. The green LED, located on the
front of the unit, will illuminate indicating the unit has been
.
activated.

Maintenance

Calibration is not required.
•
To ensure maximum static neutralization, the Staticmas-
•
®
ter model 2U500 must be replaced once a year
regardless of usage.
• To ensure maximum fan performance, keep the fan
blades and protective grids free of dust and dirt buildup.
•
The Staticmaster
clean dry cloth or cotton swab as needed.
Grounding Tab
Power receptacle
fig. 2
®
model 2U500 ion cell is sold separately.
®
model 2U500 instructions for proper
®
"ON" by pressing the power button,
®
model 4068 can be cleaned with a
Corrective Action
Call NRD for ion cell replacement.
Return ion cell to NRD for evaluation. Do
not attempt to clean the device.
Position the charged part closer to the fan.
Check all electrical connections.
www.nrdllc.com
2U500 properly
installed
fig. 3
INST4068 – 12/22
