- Page 1 9 LITRE EVAPORATIVE AIR COOLER INSTRUCTION MANUAL IMPORTANT: Please read these instructions before using the product and retain for future use. HHGL Limited, MK9 1BA HHGL (ROI) Limited, D02 X576...
-
Page 2: Safety Warnings
SAFETY WARNINGS Read this information carefully before installation or use of this product. Keep this manual with the product for future reference. This appliance can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way and if they understand the hazards involved. - Page 3 Do not insert your fingers in the opening of the guard. 16. Never use the fan without guard. Do not use the fan if the fan blade is damaged or cracked. 17. Do not leave hair, tissue, tablecloths, clothes or curtains near any opening on the fan, they could be sucked into the fan and taken within the internal moving parts, which could cause injury or damage.
-
Page 4: Technical Specification

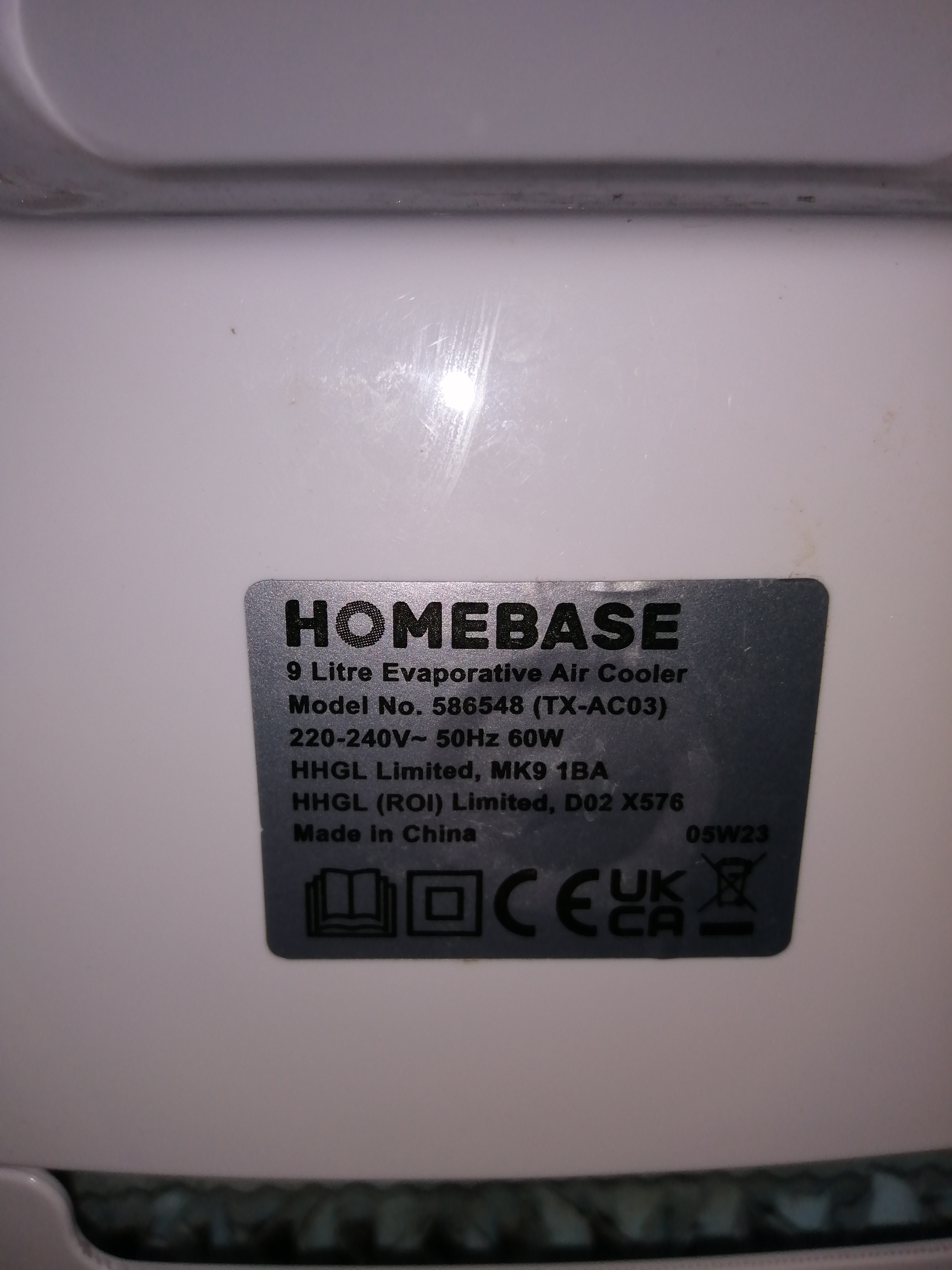

TECHNICAL SPECIFICATION MODEL TX-AC03 ARTICLE NO. 586548 WATTAGE WEIGHT 5.5KG VOLTAGE 220-240V~ FREQUENCY 50Hz TECHINCAL INFORMATION Information to identify the model(s) to which the information relates to : Description Symbol Value Unit Maximum fan flow rate 14,71 /min Fan power input... -
Page 5: Icon Explanation
ICON EXPLANATION This appliance conforms to relevant directives of The European Community. The product complies with the applicable UK directives. Class II appliance. This marking indicates that this product should not be disposed with other household waste. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. -
Page 6: Product Structure

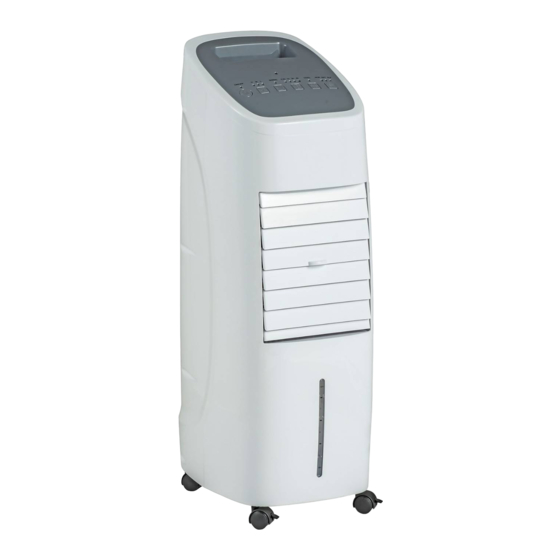

PRODUCT STRUCTURE 1 - Castors 2 - Water level indicator 3 - Air outlet 4 - Control panel 5 - Remote control warehouse 6 - Handle 7 - Filter 8 - Water tank ACCESSORIES Ice packs x 2 Remote control (2 x AAA batteries - not included) -
Page 7: Control Panel
CONTROL PANEL On/Off Mode Cool Fan Speeds Swing Timer BEFORE OPERATION WARNING! The appliance must be switched off and unplugged before filling with water. HOW TO USE THE ICE PACKS Before using, add water to the ice pack do not fill more than the maximum, put it into the freezer until frozen. - Page 8 Put the frozen ice pack into the Fill the water tank with cold water. water tank. Ensure the water level is between Min. and Max. Push back the water tank gently into the machine. Adjust the water tank lock knob to the vertical position to lock the water tank. Connect the unit to the power supply.
-
Page 9: Operation
OPERATION ON/OFF: Press button to switch the air cooler on and off. FAN SPEED: Press button to adjust the fan speed at L-LOW / M-Medium / H-High position, the relevant LED indicator light will be on. SWING: Press button one time to control the swing function. Press a second time to cancel the swing function. -
Page 10: Normal Mode
NORMAL MODE You can set the fan speed Low / Medium / High. NATURAL MODE The device can give you a feeling of a natural breeze in NATURAL mode. The fan speed can be set Low / Medium / High. Low speed: Provides a light natural breeze. -
Page 11: Cleaning And Maintenance
CLEANING AND MAINTENANCE Dust may accumulate on the air outlet, which would affect the fans performance. Therefore, it's recommended to clean the fan at least once a month. 1. Turn off and unplug the fan. Attention: make sure to unplug the power cord when cleaning the fan, otherwise it might cause electric shock or damage the machine. -
Page 12: Plug Replacement
PLUG REPLACEMENT Fuse Approved to BS 1362 Connect Blue to N (Neutral) Brown L (Live) Outer sleeve Cable grip firmly clamped If you need to replace the fitted plug, then follow the instructions below. WARNING! The wires in the mains lead are coloured in accordance with the following code: Blue –... -
Page 13: Warranty
finish. Any claim under this warranty must be made by going to your nearest Homebase store, taking your proof of purchase with you, and claims must be made within 2 years of the date of purchase. We will offer you a free repair of the item where this is possible, or a replacement or a refund.
