Summary of Contents for MistAway 700-HEPA-SMK

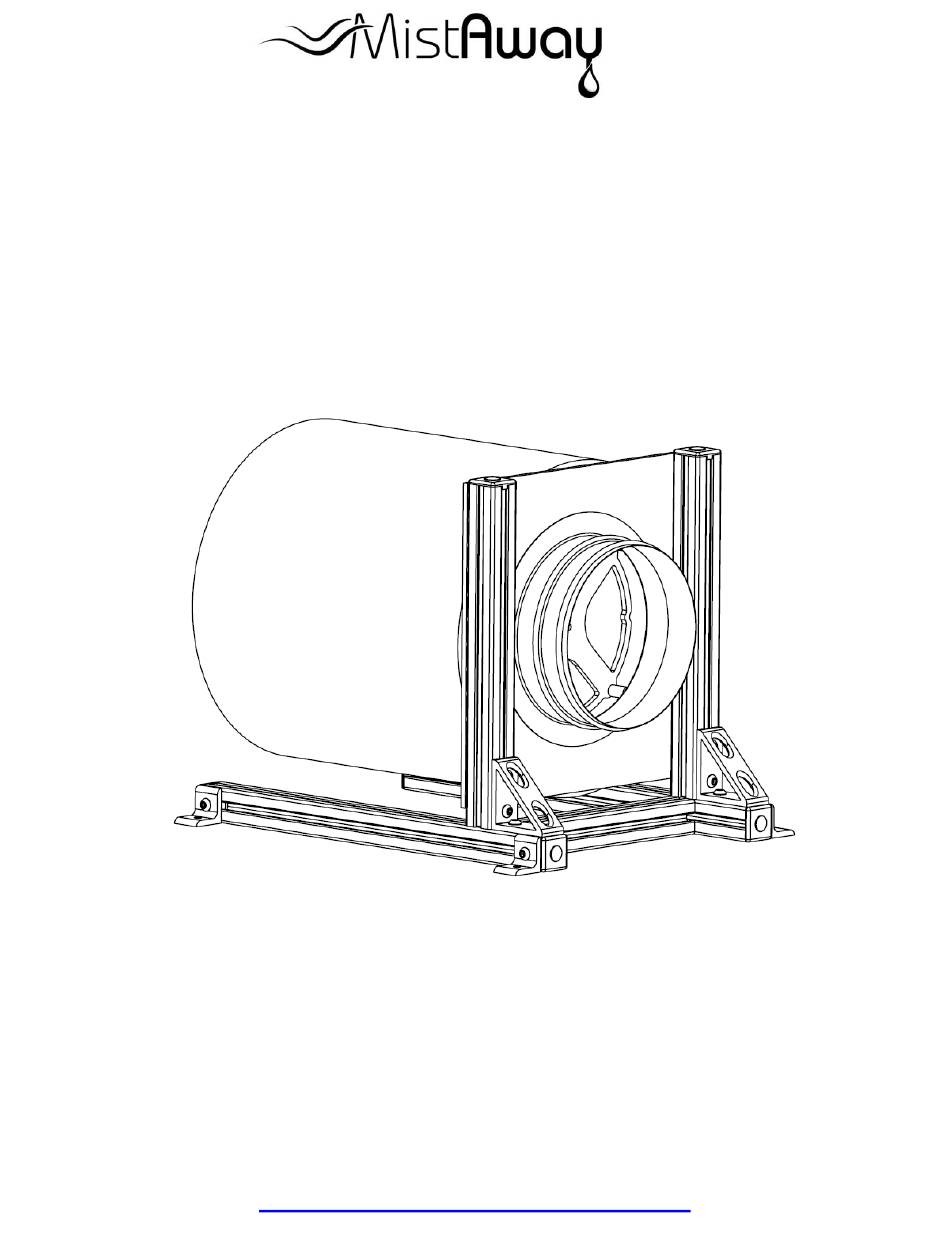

- Page 1 Assembly Instructions P/N: 700 – HEPA – SMK Side HEPA Filter Mounting Kit Manufactured by: MistAway Filtration Systems 14 Industrial Park Rd. Troy, NY 12180 www.mistawaycollector.com Phone: 518-273-7389...
- Page 2 Side Mount Filter Assembly Step 1: Assemble Cross Frame (2) to (2x) Base Frame (1) using (2x) L Corner Brackets (3) 3” from edge of Base Frame as shown. Page | 1 MA 700 Side Filter Mount MistAway, Rev 1...
- Page 3 Step 3: Assemble Mounting Plate Assembly (7) to (2x) Upright Frame (1) using (4x) T Nuts & Screws (6). Align Assembly Plate flush with upright frame as shown below. Page | 2 MA 700 Side Filter Mount MistAway, Rev 1...
- Page 4 Insert Hepa Rod Assembly (8) into the Mounting Ring on the Mounting Plate Assembly. Step 5: Attach (4x) Single Corner Brackets (9) using (4x) T Nuts & Screws as shown below. Page | 3 MA 700 Side Filter Mount MistAway, Rev 1...
- Page 5 Hepa End Cap (13), Washer (12) & Wing Nut (11) as shown above. Step 8: Fasten to machine with (4X) Single Corner Brackets (9) & customer supplied screws. Page | 4 MA 700 Side Filter Mount MistAway, Rev 1...
