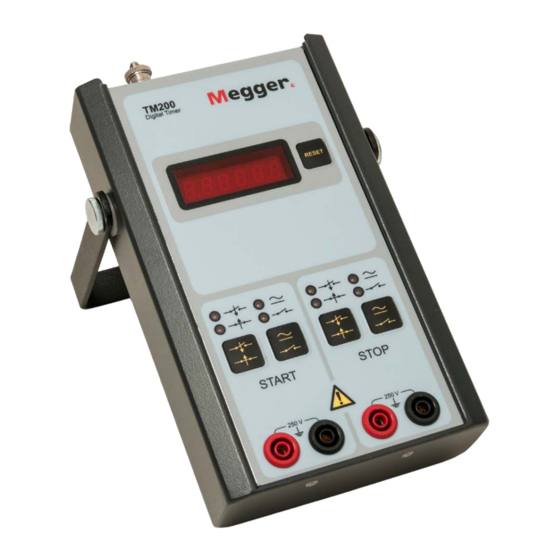

Summary of Contents for Megger TM200
- Page 1 TM200 Digital Timer User’s Manual Art No. ZP-BE02E Doc. BE0058JE V03a 2016...
-
Page 3: Digital Timer
© 2010-2016, Megger Sweden AB. All rights reserved. The contents of this manual are the property of Megger Sweden AB. No part of this work may be reproduced or transmitted in any form or by any means, except as permitted in written license agreement with Megger Sweden AB. Megger Sweden AB has made every reasonable attempt to ensure the completeness and accuracy of this document. -
Page 4: Symbols On The Instrument
Always keep the equipment connected to protective earth (ground), when any input lead is connected. High voltage on input terminals Always use safety connecting leads IMPORTANT Do not use liquid detergents or aerosols when cleaning TM200. Use a damp cloth. TM200 ZP-BE02E BE0058JE... - Page 5 When activating with: DC contactor with 110 V DC over a closing contact under load. A. Applying voltage Connect the TM200 to protective ground (earth). Set the buttons to start as A, “Applying volt- age”. Connect the start leads across the contactor coil (regardless of polarity).
-
Page 6: Specifications
3 SPECIfICATIONS Specifications Specifications TM200 Measurement section Range 0-999.999 s Specifications are valid at nominal input voltage and an ambient Resolution 1 ms temperature of +25°C, (77°f). Specifications are subject to change Inaccuracy ±0.02% + 1 digit of displayed value without notice. - Page 7 BE0058JE ZP-BE02E TM200...
