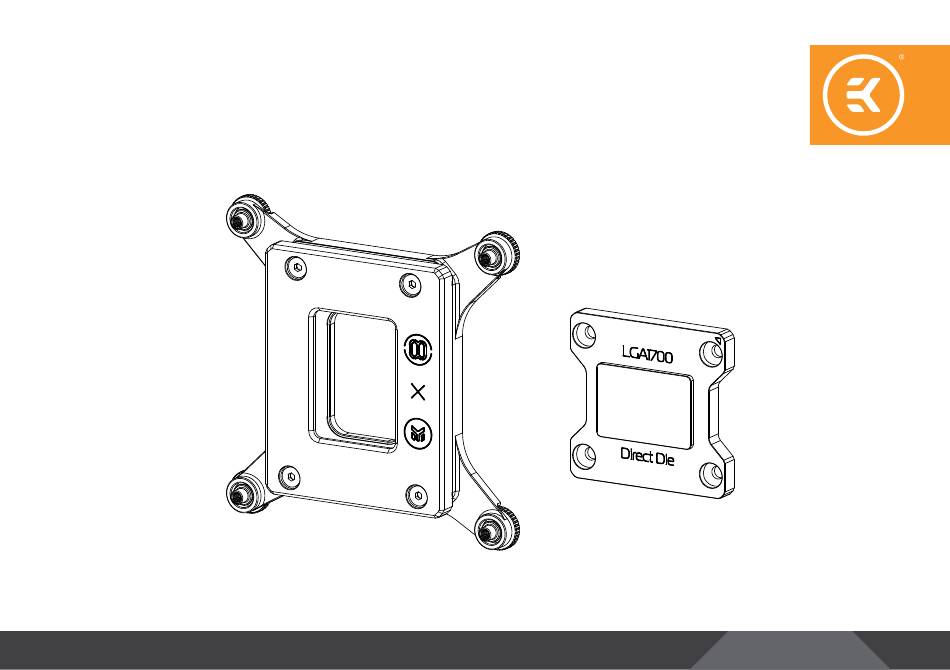

- Page 1 EK-Quantum Velocity² Direct Die Upgrade Kit USER GUIDE...
- Page 2 Please note the installation of the product is intended to be undertaken by an adequately trained and experienced person. You are installing the product at your own risk. If you are not properly trained or experienced or feel unsure about the installation procedure, please refrain from installing the product yourself and contact our tech support for assistance.
-
Page 3: Table Of Contents
TABLE OF CONTENTS BOX CONTENTS UPGRADE KIT DIMENSIONS TECHNICAL SPECIFICATIONS AND UPGRADE KIT PARTS PREPARING THE WATER BLOCK PREPARING THE MOTHERBOARD INSTALLING THE DIE GUARD AND APPLYING THE PASTE INSTALLING THE CPU WATER BLOCK SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: Box Contents
BOX CONTENTS Protective Foam 5mm (1 pc) Allen Key 2 mm (1 pc) Allen Key 2.5 mm (1 pc) TX20 L-Shaped Wrench (1 pc) Protective Sticker (1 pc) Thermal grease (1 pc) - 4 -... -
Page 5: Upgrade Kit Dimensions
UPGRADE KIT DIMENSIONS 19.6 mm 90 mm 13.1 mm 78 mm 6 mm 36 mm 40 mm - 5 -... -
Page 6: Technical Specifications And Upgrade Kit Parts
TECHNICAL SPECIFICATIONS AND UPGRADE KIT PARTS Position Description Quantity 105575 Jet Plate (Plexi) 104773 OR Coldplate 105574 Coldplate Direct Die (Ni) 104686 Screw M4 x 14 DIN7991 8202 Screw M3 x 12 DIN7991 105584 Alu - Die Guard 3831109897874 Exact Mount Velocity Direct Die - 6 -... -
Page 7: Preparing The Water Block
PREPARING THE WATER BLOCK M4 x 14 DIN7991 SCREW STEP 1 Take your Velocity 1700 block, unscrew the M4 x 14 screw, and COLDPLATE remove the coldplate, jet, and O-ring. JET PLATE COLDPLATE O-RING STEP 1 STEP 2 Install Direct Die Coldplate, Direct Die Jet, and O-ring on the water M4 x 14 DIN7991 block using the M4 x 14 screws. -
Page 8: Preparing The Motherboard
PREPARING THE MOTHERBOARD STEP 1 Remove the CPU from the socket. STEP 1 STEP 2 Remove the stock Torx screws from the motherboard. For this step, you must use TX20 Key ( included in the mounting bag) TX SCREW STEP 2 - 8 -... - Page 9 STEP 3 Remove the stock mounting mechanism from the motherboard. STEP 3 STEP 4 Install the Delidded CPU in the socket. STEP 4 - 9 -...
-
Page 10: Installing The Die Guard And Applying The Paste
STEP 5 Cleaning the CPU: Wipe the DIE clean using a non-abrasive cloth or Q-tip. Non-abrasive Cloth STEP 5 INSTALLING THE DIE GUARD AND APPLYING THE PASTE STEP 1 M3 x 12 SCREW Place the DIE GUARD on the motherboard and align it with the holes. On the back of the motherboard place the BACKPLATE. - Page 11 STEP 2 Take the Protective FOAM and glue it to the Protective STICKER on the side of the STICKER with no glue. Now you can glue the Protective FOAM and STICKER on the CPU. PROTECTIVE FOAM WITH STICKER STEP 2 STEP 3 Put the protective FOAM with a sticker on the CPU so that it doesn’t touch the DIE with the glue part of the facing the CPU.
-
Page 12: Installing The Cpu Water Block
STEP 4 Apply a small drop of Thermal Grizzly Conductonaut liquid metal paste and spread it evenly over the DIE with cotton swabs that are included in the bag. Use the provided needle accessory that is included in the bag. Don’t press the syringe too hard! Use the provided needle accessory that is included in the bag. -
Page 13: Support And Service
SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “ TECHNICAL SPECIFICATIONS AND UPGRADE KIT PARTS” where you can find the EAN number of each part you might need.
