Summary of Contents for Schubert S3

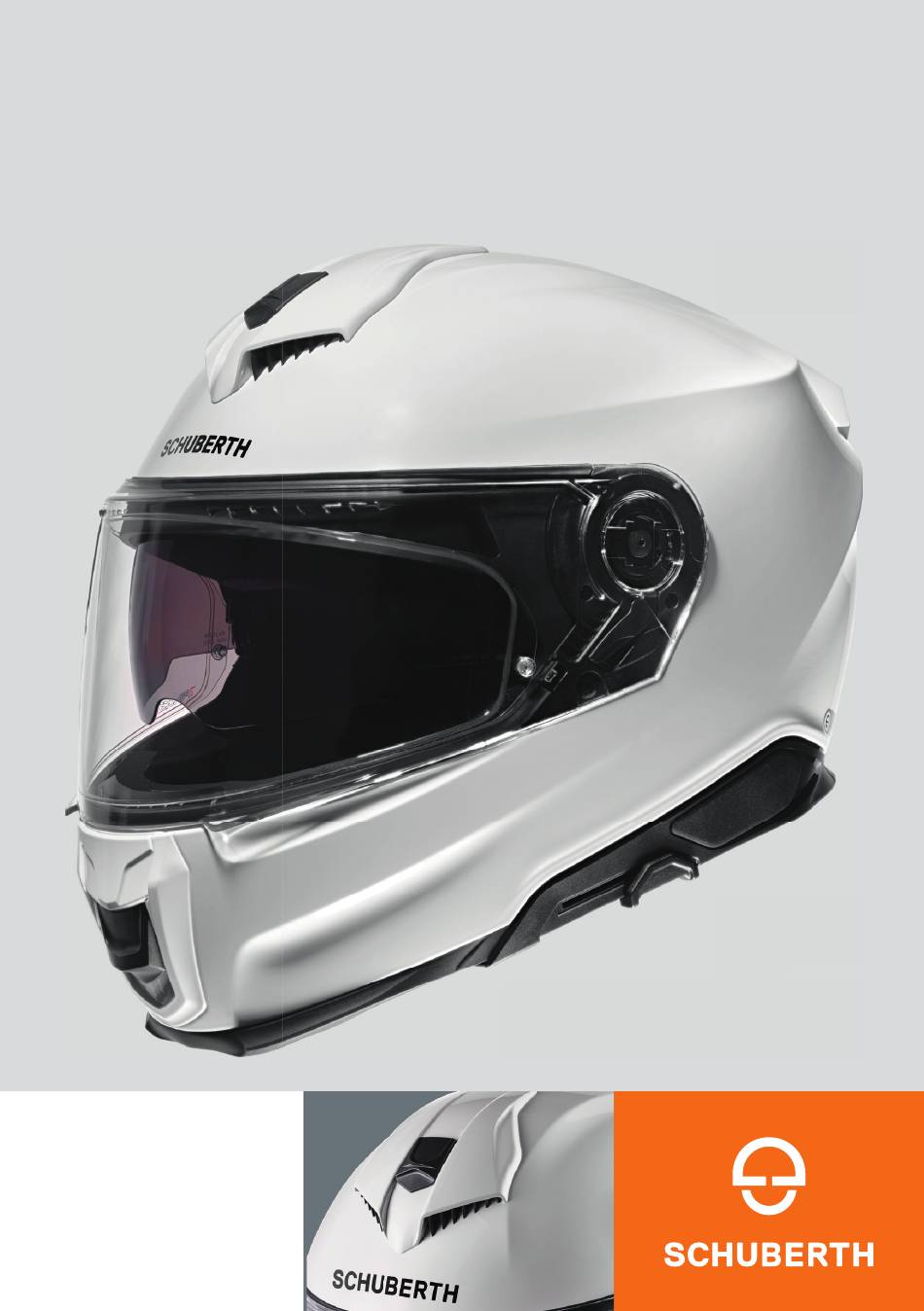

  • Page 1 MANUAL...
  • Page 3 4 – 47...

  • Page 4: How To Use The Manual Correctly

    A. HOW TO USE THIS MANUAL CORRECTLY Please take time to read through this manual carefully so that your helmet protects you properly when riding your motorcycle. In order to ensure that you do not overlook any aspect of the manual that is relevant to your safety, we recommend that you read it in the order in which it appears.

  • Page 5: Table Of Contents

    B. CONTENTS HOW TO USE THE MANUAL CORRECTLY CONTENTS THE HELMET Standard ECE approval Anatomy of the helmet Helmet shell Inner shell Aerodynamics and Aeroacoustics Additional wind deflector Chinstrap with Micro-Lock ratchet fastener Visor with anti-fog lensr Sun visor Inner lining Ventilation systems Additional safety features PUTTING ON THE HELMET AND TAKING IT OFF...
  • Page 6 B. CONTENTS FOR YOUR SAFETY Safety advice concerning the helmet Safety advice concerning the visor / sun visor Safety advice concerning modifications / accessories MAINTENANCE AND CARE Helmet shell Visor and sun visor Inner lining Ventilation Retention system Storing the helmet ACCESSORIES AND SPARE PARTS Communication system Accessories and spare parts...

  • Page 7: The Helmet 7 En

    Please note that this S3 with ECE approval is not certified for the United States of America. It is only permitted for use in countries where the ECE standard is valid.

  • Page 8: Anatomy Of The Helmet

    SC2 main unit 4. HELMET SHELL The helmet shell of the S3 combines an aerodynamically optimal shape with consistent protection. It consists of a new fiberglass shell from our patented Direct Fiber Technology reinforced with carbon fiber for improved shock...

  • Page 9: Inner Shell

    The large side panels ensure the helmet fit optimally and comfortably. 6. AERODYNAMICS AND AEROACOUSTICS The S3 produces practically no uplift even at speed, Various features developed in SCHUBERTH’s wind tunnel make the helmet notably quiet as far as aeroacoustics are concerned, while providing optimized hearing capability when riding.
  • Page 10 C. THE HELMET Note: With faired motorcycles, strong currents occur at the edges of the wind shadow. These may signifi cantly reduce the aeroacoustic performance of the helmet. The motorcycle fairing should be adjusted so that the turbulence created does not reach the bottom surface of the helmet. aeroacoustically non-critical area aeroacoustically critical area aeroacoustically non-critical area...

  • Page 11: Additional Wind Deflector

    8. CHINSTRAP WITH MICRO-LOCK RATCHET FASTENERS The S3 is fi tted with a ratchet strap. This locking system is easy to use and enables you to adjust the chinstrap perfectly to your head every time you put the helmet on.
  • Page 12 C. THE HELMET Tip: Both chin straps are adjustable in length. Caution: When adjusting the strap, make sure that the helmet cannot be pulled off in a forward direction with the chinstrap closed. Caution: Check the adjustment of the chinstrap length at regular intervals. OPENING AND CLOSING To close the chinstrap fastener, slide the ratchet tongue step by step into the locking buckle.

  • Page 13: Visor With Anti-Fog Lensr

    C. THE HELMET 9. VISOR WITH ANTI-FOG LENS The visor is a fog-free double-lens visor. By fi xing the inner anti-fog lens using eccentric pins, the two visor panes are pre-tensioned together and are thereby sealed. An insulating air cushion is thus formed between the visor’s main plate – i.e.
  • Page 14 C. THE HELMET Open the visor for this purpose • the city position is usually skipped • but it is easy to fi nd this position by moving it downwards again. The visor mechanism requires no additional lubrication. The visor can be operated at any time irrespective of the position of the sun visor.
  • Page 15 C. THE HELMET 2. Operate the spring elements on the right and left below the visor mechanism in the direction of the visor opening. Move the visor back until it is released from the visor mechanism. Installing the visor 1. Using both hands, guide the visor locking studs into the respective recesses in the visor mechanism.
  • Page 16 C. THE HELMET 3. Check the function of the visor mechanism by closing the visor once and opening it as far as possible. ANTI-FOG LENS Removal 1. Before starting to remove the antifog lens, fi rst lay the visor on a soft, clean cloth so that its top edge is facing you.
  • Page 17 C. THE HELMET Fitting 1. Remove the visor from the helmet. 2. Use the notch to help position one side of the Use the notch to help position one side of the anti-fog lens on one of the eccentric holding pins.
  • Page 18 C. THE HELMET Note: To avoid scratching the visor, never remove or fit the anti-fog lens unless the visor unit is clean and dry. When fitting the anti-fog lens, check that neither dust nor moisture are able to get between the two surfaces. When removing or fitting the anti-fog lens, it is always best to lay the visor unit on a clean, dry cloth.

  • Page 19: Sun Visor

    C. THE HELMET Caution: Petrol, solvent and fuel vapors can cause cracking of the visor. Make sure that the visor is never exposed to such vapors! Never place the helmet on the tank of your bike. 10. SUN VISOR SUN VISOR The sun visor has a scratch-resistant coating and uses a special polycarbonate to ensure eff ective protection against harmful UV radiation.
  • Page 20 C. THE HELMET Note: Only use the slide to operate the sun visor. Caution: Never ride in the dark or in conditions of poor visibility with the sun visor down. Always raise the sun visor before entering a tunnel. Caution: Riding without the visor or with an open visor can result in injury to the eyes and face from stones, dust, insects and other flying objects.
  • Page 21 C. THE HELMET 4. Press the retaining element inwards out of the sun visor. Repeat this step on the other side. 5. Move the slider of the sun visor slightly forward. 6. Press the sun visor inwards on both sides and remove it downwards.

  • Page 22: Inner Lining

    C. THE HELMET 11. INNER LINING The interchangeable, washable and seamless inner linings of the S3 ensures a secure and comfortable fi t, as well as improved helmet ventilation. The high-comfort cheek pads ensure that the helmet fi ts comfortably around the cheeks, and the head pad provides an optimal fi t all around the head.
  • Page 23 C. THE HELMET 4. Pulling the three pins out of the corresponding plug-in devices. 5. Repeat step 2 to 5 to remove the cheek pad on the other side. Removing the head pad 1. Loosen the pins of the forehead padding and pull it out of the 4 holders.
  • Page 24 C. THE HELMET 4. Loosen the back pins of both the cheek pads and the two pins of the head pad back to free it. Removing the neck pad 1. Pulling the neck pad in order to free the eyelets by the two pins. INSTALLATION INNER LINING Installation the head pad 1.
  • Page 25 C. THE HELMET 3. The back pad is linked to the helmet with the plug-in devices held by the cheek pads. to install it is necessary to install the cheek pads as well. Installation the cheek pad 1. Slide the chin strap through the cheek pad pocket.
  • Page 26 C. THE HELMET Installing the neck pad 1. Pushing the neck pad in order to to snap the eyelets over the two pins. Note: Ensure that the A.R.O.S. straps are not twisted. Caution: Never ride when parts of the inner lining have been removed. Caution: Excessive heat (e.g.
  • Page 27 C. THE HELMET S.R.S. - SCHUBERTH RESCUE SYSTEM S.R.S. - SCHUBERTH RESCUE SYSTEM is a safety mechanism realized to support the emergency services. The cheek pads can be safely removed by pulling on the 2 lashes and reducing the forces applied to the rider's neck, facilitating the removal of the helmet 1.

  • Page 28: Ventilation Systems

    12. VENTILATION SYSTEMS VENTILATION SYSTEM 1 – VISOR SETTING The S3 has a visor that adjusts to several positions. Depending on your road speed and the tendency of the visor to mist up, open the visor suffi ciently wide to stop it from misting up but so that it still protects your eyes from excessive draft.
  • Page 29 SUMMER AND WINTER ADJUSTMENT FLAPS The ventilation of the S3 can also be adjusted to suit the seasons, weather conditions or your personal preferences. While you will prefer the cooling air...

  • Page 30: Additional Safety Features

    C. THE HELMET VENTILATION SYSTEM 5 – INTERIOR AIR EXTRACTION The S3 is equipped with an innovative air extraction system. Fresh air flowing in through the head vent is directed via the air channels in the inner shell to the back of the helmet.

  • Page 31: Putting On The Helmet And Taking It Off

    D. PUTTING THE HELMET ON AND TAKING IT OF 1. PUTTING ON THE HELMET 1. Make sure the sun visor is retracted into the helmet shell. 2. Open the chinstrap and chinstrap comfort pad. 3. Pull apart the lower ends of the chinstrap. 4.

  • Page 32: Before Every Journey

    E. BEFORE EVERY JOURNEY For your safety, check the following points before every journey: 1. CHECKING THE HELMET Check the helmet regularly for damage. Small superficial scratches will not impair the protective function of your helmet. In the case of more serious damage (cracks, dents, flaking and cracking paint, etc.), the helmet should no longer be used.

  • Page 33: Checking The Visor And Sun Visor

    E. BEFORE EVERY JOURNEY 3. CHECKING THE VISOR AND SUN VISOR Before every journey, check that the mechanisms of the visor and sun visor are working properly and that the visor and sun visor will provide sufficiently clear visibility. Any dirt should be removed before riding. Check the visor and sun visor for physical damage and cracks.

  • Page 34: For Your Safety

    F. FOR YOUR SAFETY 1. SAFETY ADVICE CONCERNING THE HELMET Motorcycling is associated with particular risks and dangers for the rider and passenger. Wearing a helmet can reduce but not eliminate the risk of serious injuries. It is impossible to state precisely what the protective effect of a helmet will be in the event of an accident.

  • Page 35: Safety Advice Concerning The Visor/ Sun Visor

    F. FOR YOUR SAFETY Examine the helmet for damage at regular intervals. Small scratches will not impair the protective function of your helmet. The helmet should be replaced after 5 to 7 years, depending on use and care. Although the outer shell is in principle capable of a longer service life, the occurrence of material fatigue and wear to other components, as well as the overall action of the helmet and the unknown conditions in which the helmet has been used, make it advisable for your own safety to replace...

  • Page 36: Safety Advice Concerning Modifications/ Accessories

    F. FOR YOUR SAFETY 3. SAFETY ADVICE CONCERNING MODIFICATIONS/ ACCESSORIES Original components (in particular on the outer shell, inner shell and restraint system) should not be altered or removed. The fitting of additional parts from other manufacturers that have not been recommended can reduce the protective effect and renders the ECE certification and all warranty and insurance claims invalid.

  • Page 37: Maintenance And Care

    G. MAINTENANCE AND CARE 1. HELMET SHELL To clean the helmet shell, you can use water, soap or one of the commonly available motorcycle shampoos, cleaners, polishes, plastic cleaners or cleaning fluids. Using water and soap is usually sufficient. Make sure when using the other cleaning materials that these do not come into contact with the visor, since they can cause damage to the visor and its coating.
  • Page 38 G. MAINTENANCE AND CARE ANTI-FOG LENS The anti-fog lens must only be cleaned with a soft cloth, which may be slightly dampened if required (we recommend a microfibre cloth). Do not use any cleaning agents. SUN VISOR The sun visor should only be cleaned with a soft and, if necessary, slightly damp cloth (we recommend a microfibre cloth).

  • Page 39: Inner Lining

    3. INNER LINING The inner lining of the S3 can be removed completely. The neck pad, head and cheek pads can be washed by hand using a mild soap solution (e.g. with highly diluted standard mild detergent) at a maximum temperature of 30 °C. Allow the lining to dry at room temperature and with good ventilation.

  • Page 40: Retention System

    G. MAINTENANCE AND CARE 2. Push it up and to the front side until the ventilation hood is released from the helmet shell 3. After cleaning, attach the ventilation hood by placing it on the bracket and pushing it downward under slight pressure until it clicks into place.

  • Page 41: Accessories And Spare Parts

    H. ACCESSORIES AND SPARE PARTS 1. COMMUNICATION SYSTEM Your S3 comes with pre-installed HD speakers, HD microphone and 3 antennas for Bluetooth Intercom, Mesh Intercom and FM Radio - ready for the use of the brand new SC2 communication system.
  • Page 42 2. SCHUBERTH INDIVIDUAL PROGRAM To develop the inner linings of the S3 SCHUBERTH used a scientific approach commissioning a Study to the "HOHENSTEIN INSTITUT FOR TEXTILINNOVATION". The result is an interior that optimally fits head shapes from round to oval, which make up more than 98% of the population.

  • Page 43: Accessories And Spare Parts

    H. ACCESSORIES AND SPARE PARTS Round head custom fi t Round head custom fi t Oval head custom fi t Oval head custom fi t THINNER SIDE THINNER SIDE THINNER SIDE THINNER SIDE PADDING PADDING PADDING PADDING THICKER SIDE THICKER SIDE THICKER SIDE THICKER SIDE PADDING...

  • Page 44: Schuberth Service

    I. SCHUBERTH SERVICE Please contact your dealer if necessary, or you can call our service center directly. Find your local dealer as well as the contact details for our service center on the SCHUBERTH website at WWW.SCHUBERTH.COM...

  • Page 45: Warranty

    Please check your statutory warranty entitlement in your country. You can also enjoy the benefits of the “5 YEARS SCHUBERTH STANDARD GUARANTEE”. Register your S3 on the internet at WWW.SCHUBERTH.COM within 6 months from the purchase of the helmet to enjoy the privileges of your extended guarantee.

  • Page 46: Environmental Protection

    K. ENVIRONMENTAL PROTECTION The symbol of the crossed-out trashcan indicates that this electrical or electronic equipment must not be disposed of with household waste at the end of its service life, but must be taken for separate collection. There are free collection points for waste electrical and electronic equipment in your area and, if necessary, other collection points for the reuse of the equipment.

  • Page 47: How To Contact Us

    L. HOW TO CONTACT US HEADQUARTERS Phone +49 (0)391 8106-0 Address SCHUBERTH GmbH Stegelitzer Straße 12 39126 Magdeburg Germany Internet WWW.SCHUBERTH.COM E-mail info@schuberth.com...
  • Page 49 Änderungen vorbehalten. Keine Gewährleistung auf Irrtümer und Druckfehler. Subject to change. Not responsible for mistakes or printing errors. WWW.SCHUBERTH.COM...
