This heater is designed for outdoor use.
HITCHON
INTERNAITONAL
CHRISTCHURCH, NEW ZEALAND
IMPORTANT: Read and understand all of the directions in this manual before
assembling, starting, or servicing the heater. Improper use of this heater can cause
serious injury. Keep this manual for future reference!
▲DANGER:GENERAL HAZARD WARNING:
Be sure to comply with the instructions and warnings provided with this heater, or
death, serious bodily injury and property loss, damage from the hazards of fire,
labels, etc, contact the manufacturer.
▲DANGER:
1．Not for use in residential living areas or non-adequately ventilated enclosed
spaces.
. Never use the heater where flammable vapors may be present, there is
danger of explosion, fire and burning
2. Always provide adequate ventilation during the use. Only use the appliance in
well ventilated area, the air must be regular exchanged during the use (two
times/one hour）, inadequate burning caused by oxygen shortage can cause
carbon monoxide poisoning.
3. Don't expose the appliance to rain or snow, never use it in humidity places
either. Pull out the plug before the routine maintenance and examination.
Page | 1

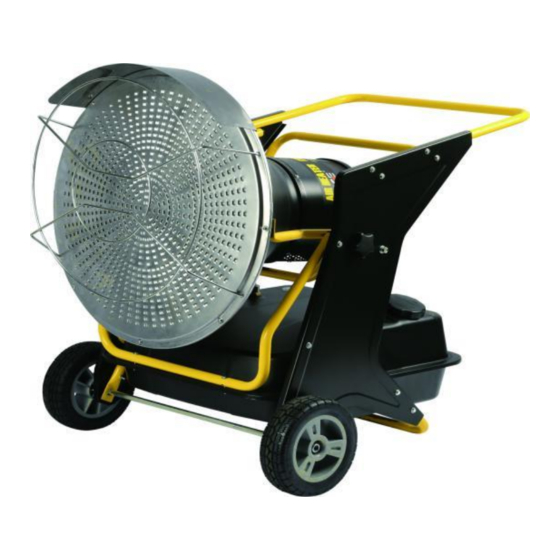

DIESEL RADIANT HEATER
INSTRUCTION MANUAL
Model No.: BGO1402-45
LTD,
32
HAMMERSMITH
DRIVE,
WIGRAM,
Advertisement
Table of Contents
Summary of Contents for Hitchon International BGO1402-45
- Page 1 DIESEL RADIANT HEATER INSTRUCTION MANUAL Model No.: BGO1402-45 This heater is designed for outdoor use. HITCHON INTERNAITONAL LTD, HAMMERSMITH DRIVE, WIGRAM, CHRISTCHURCH, NEW ZEALAND IMPORTANT: Read and understand all of the directions in this manual before assembling, starting, or servicing the heater. Improper use of this heater can cause serious injury.
-
Page 2: Table Of Contents
【Table of Contents】 Warning …………………………………………………………………...2 Safety Information………………………………………………….……3-4 Specifications …………………………………………………….……..4-5 Features…………………………………………………………….……..5 Theory of Operation ……………………………………………….……6 Assembly …………………………………………………………….…..6-7 Fuels ……………………………………………………………….………7-8 Ventilation ………………………………………………………….……..8 Operation …………………………………………………………….……8-9 Maintenance ……………………………………………………….……..9-10 Storage ……………………………………………………………….……10 Trouble Shooting …………………………………………………….……11 WARNING ▲ Fire, burn, inhalation, and explosion hazard. Keep combustibles, such as building materials, paper or cardboard, a safe distance away from the heater as recommended by these instructions. -
Page 3: Warning
【1. Safety information】 -This appliance cannot be used by anyone with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. -
Page 4: Specifications
- ALWAYS unplug the heater when hot in use - NEVER leave heater unattended - Operate only on level ad stable surfaces. 【2. Specification】 Model# BGO1402-45 Power 40 kW Electric supply 220-240V 50Hz 80W Kind of fuel Automotive DIESEL... -
Page 5: Features
Fuel Tank capacity 38 L Max Operating Hours Heat Type Radiant Radiating Area 5 meters (in front within) Overheat Shut-off System Size (LxWxH mm) 925*635*860 Weight(kgs) 28.4 Length Width Height 925mm 635mm 860mm 【3. Features】 Page | 5... -
Page 6: Theory Of Operation
【4. Theory of Operation】 Fuel system: This heater is equipped with a high-pressure pump. The pump draws fuel up from the fuel tank to the nozzle in the burner head. It is sprayed into the combustion chamber in a fine mist where it is mixed with air for combustion. Quick-Fire Ignition: A transformer sends high voltage to a two-pronged spark plug. -
Page 7: Assembly
【Assembly】 Assembly Radiant Visor to the top rear of the Radiant Cone Assembly using 3 included screws 2. Attach Safety Guard to front of heater with screws provided. 3. Place handle on main structure and fasten with screws provided. 【5. FUEL】 ▲... -
Page 8: Operation
For low-temperature operation, use antifreeze supplements. 【6. OPERATION】 ▲ WARNING: Read the section “SAFETY CONSIDERATIONS” carefully before turning the generator on. 【7. RUNNING THE GENERATOR】 ➢ 1.1. Observe all safety instruction at all times. ➢ 1.2. Check the fuel is present in the tank. ➢... - Page 9 We suggest following a maintenance schedule as follows: Filter – The Fuel Filter should be cleaned at least twice per heating season by rinsing it in clean diesel. Contaminated fuel could make this necessary immediately, See below picture: Page | 9...
-
Page 10: Storage
【Maintenance (Continued)】 Fuel/Fuel Tank – Flush every 200 hours of operation or as needed. Do not water to flush the tank. Use fresh diesel only. Nozzle – Nozzles should be cleaned or replaced at least once per heating season. Contaminated fuel could make this necessary immediately. To clean dirt from nozzle, blow compressed air through nozzle front. - Page 11 【11. DISPLAY ERRORS】 See B Fig.3 ERROR CAUSE SOLUTION OPERATION ERROR 1. The “| （ ON） /O (OFF)” switch After disconnecting is turned “| (ON)” when the generator, see that the switch is in the “O (OFF)” position, generator is plugged plug the generator in and turn the switch “(|) ON”...
- Page 12 【12. PREVENTIVE MAINTENANCE SCHEDULE】 WARNING: BEFORE INITIATING REPAIR MAINTENANCE PROCEDURE UNPLUG THE FEEDER CABLE AND MAKE SURE THAT THE GENERATOR IS COOLED DOWN. COMPONENT MAINTENANCE MAINTENANCE FREQUENCY PROCEDURE Clean every 150-200 hours of Empty and rinse with fresh fuel Fuel tank operation when when...
- Page 13 【13. PROBLEM IDENTIFICATION】 PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Generator Generator blocked Restart the generator doesn’t run Turn the switch “(|) ON” The power switch is in the “(O) OFF” position 1)Plug the feeder cable No power properly into the socket 2) Check the power supply network.
- Page 14 Photocell dirty, service center. damaged installed Contact technical improperly service center. Foreign substances Empty and refill the fuel present in the tank tank with clean fuel Electrodes are used up or Contact technical placed at an improper service center. distance Fan blocked or Engine damaged Contact...
- Page 15 Page | 15...
