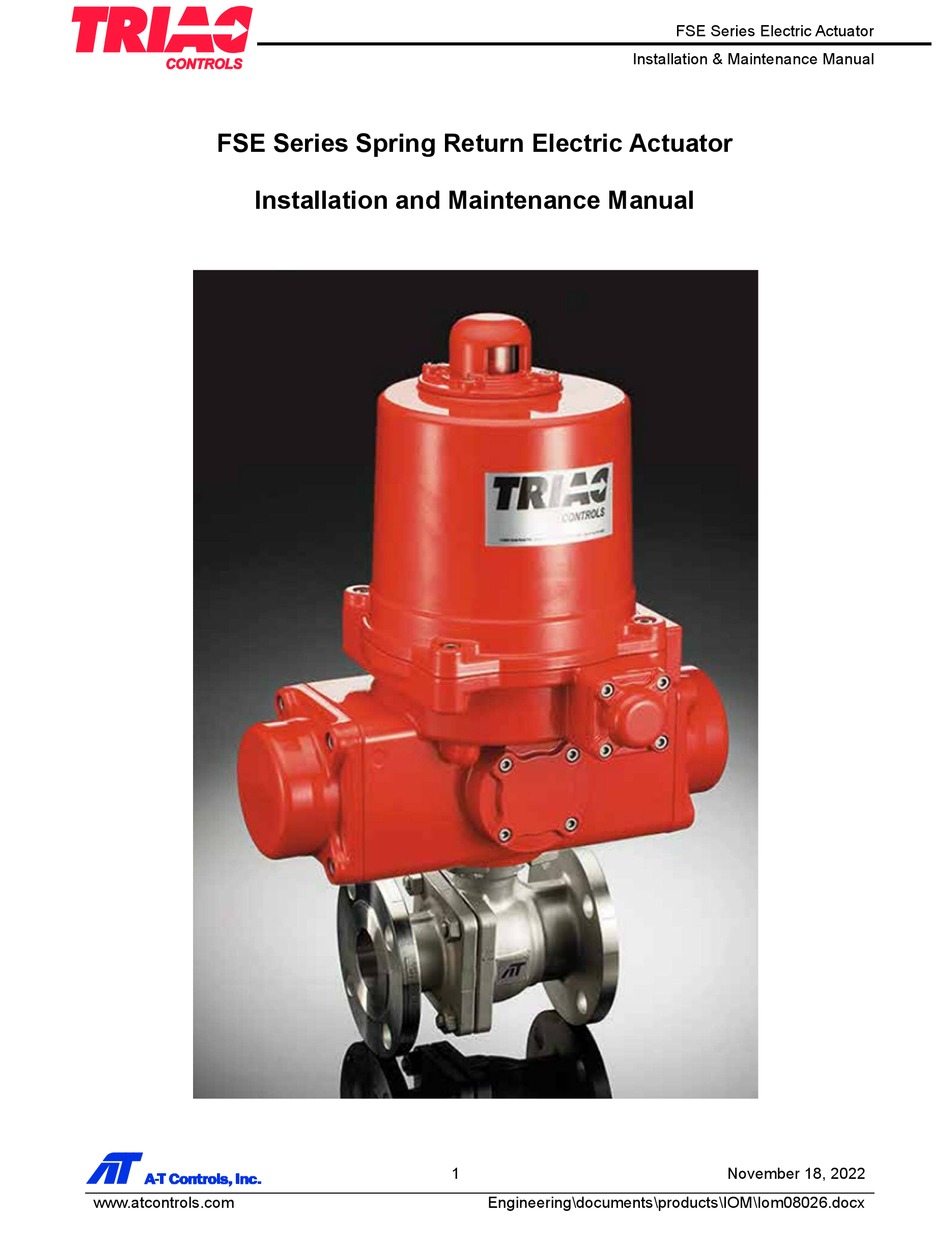

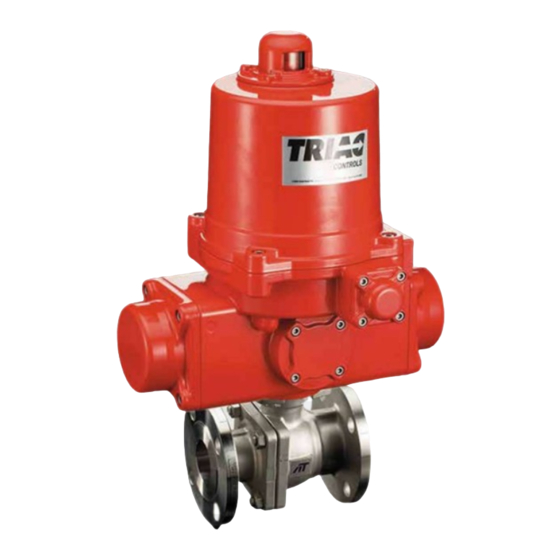

FSE Series Electric Actuator
Installation & Maintenance Manual
FSE Series Spring Return Electric Actuator
Installation and Maintenance Manual
1
November 18, 2022
www.atcontrols.com
Engineering\documents\products\IOM\Iom08026.docx
