BEFORE YOU START
Carefully read these instructions and refer to them constantly during each stage of construction. If you do not have all the necessary
tools or information contact Stratco for advice. Before starting, lay out components and check them against the 'Components' section.
The Stratco Over-Car Bonnet Storage Locker has a maximum safe load rating of 400kg. It is highly recommended that the Storage
Locker be secured to a concrete slab using provided M10 Masonry Anchors at all four footings, mitigating the chance of damage in
the event of a collision with car or due to loads inside the Storage Locker falling over. The 400kg load rating is valid in both situations
where the Storage Locker is and is not bolted to a concrete slab.
A minimum of two people are required to safely assemble the Storage Locker. Ensure safe lifting practices are followed at all times dur-
ing installation. The heaviest lift during installation is 37kg.
to install in windy conditions.
TOOLS AND SAFETY EQUIPMENT
Safety Gloves
Safety Glasses

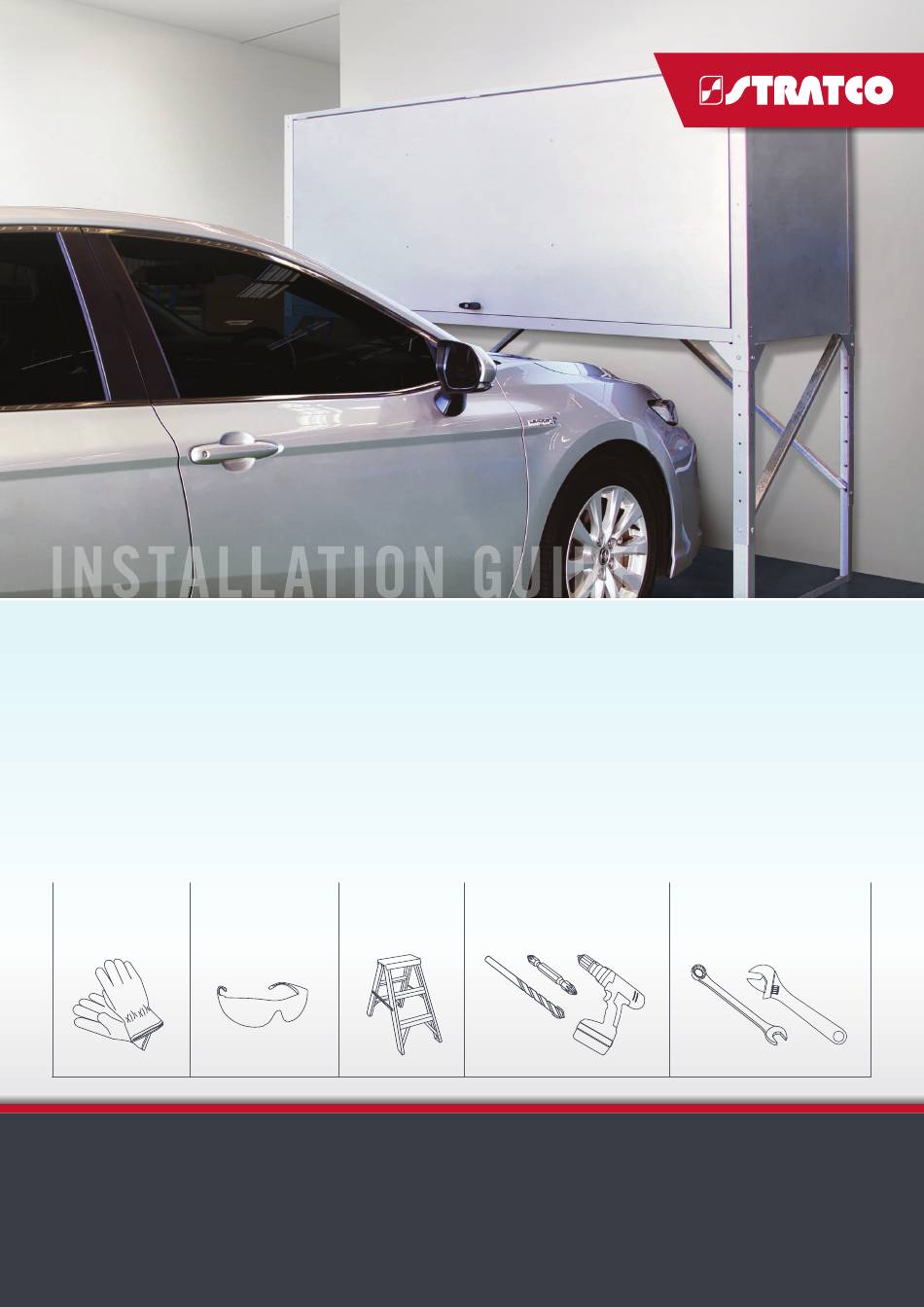

STRATCO OVER-CAR
BONNET STORAGE LOCKER
Use heavy gloves when handling steel components and never attempt
Ladder
Cordless Drill,
12mm Masonry Bit
& Phillips-head bit
INSTALLATION GUIDE
13mm & 16mm Spanners
or Adjustable Wrench
Advertisement
Related Manuals for Stratco Over-Car Bonnet Storage Locker
Summary of Contents for Stratco Over-Car Bonnet Storage Locker
- Page 1 Stratco for advice. Before starting, lay out components and check them against the ‘Components’ section. The Stratco Over-Car Bonnet Storage Locker has a maximum safe load rating of 400kg. It is highly recommended that the Storage Locker be secured to a concrete slab using provided M10 Masonry Anchors at all four footings, mitigating the chance of damage in the event of a collision with car or due to loads inside the Storage Locker falling over.
- Page 2 STRATCO OVER-CAR BONNET STORAGE LOCKER INSTALLATION GUIDE COMPONENTS Floor Panel Door Panel Rear Panel Top Panel Left Panel & Right Panel Shelf Panel Leg - Upper Leg - Lower Leg Brace Bottom Brace Gas Strut Corner Bracket Hinge Bracket Pull Cord &...
-
Page 3: Leg Assembly
LEG ASSEMBLY Slide the Corner Bracket down the Leg - Upper. Fasten two M8 Bolt and Nuts through the holes of the Corner Bracket The Storage Locker can be adjusted in accordance with the and into the holes of the Leg - Upper. height of your car bonnet, or highest point of the car that will be underneath the Storage Locker. -
Page 4: Panel Assembly
STRATCO OVER-CAR BONNET STORAGE LOCKER INSTALLATION GUIDE Confirm the distance from the bottom of the Leg Assembly Position the Left Panel onto the Top Panel. to the Corner Bracket is more than the height of your car bonnet + 100mm. - Page 5 Fit one of the Leg Assemblies onto the front corner of the Fit one of the Leg Assemblies onto the rear corner of the Left Left panel. Loosely fasten an M8 Bolt and Nut through the panel. Loosely fasten an M8 Bolt and Nut through the Corner Corner Bracket and into the Left Panel.
- Page 6 STRATCO OVER-CAR BONNET STORAGE LOCKER INSTALLATION GUIDE The Right Panel and Leg Assemblies are assembled in the Lift the Storage locker upright. This lift is 37kg, requiring a same manner. Repeat steps from Figure 2.1 to Figure 2.6 to minimum of two people. Follow safe lifting practices during assemble the Right Panel and Leg Assemblies.
- Page 7 Fasten the Rear Panel to the Top and Side Panels using six Slide the Floor Panel into the Assembly from the front. The Phillips Screws. Floor Panel sits up against the Rear Panel. Phillips Screw Top Panel - installed from inside Phillips Screw Floor Panel Side...
- Page 8 STRATCO OVER-CAR BONNET STORAGE LOCKER INSTALLATION GUIDE Two Shelf panels are provided which can act as shelves or Phillips Screw dividers. Refer to Figure 2.14 below for available layout configurations. Installation of the Shelf Panels is optional Top Panel and will not reduce the weight loading limit of the Locker if not installed.
- Page 9 Remove the two Phillips Screws from the rear left Leg Assembly. Line up the holes of the Shelf with the Side Panel and leg holes and fasten in place using three Phillips Screws. Rear Left Leg Phillips Screw M8 Nut Shelf Panel Side Panel FIGURE 2.18...
- Page 10 STRATCO OVER-CAR BONNET STORAGE LOCKER INSTALLATION GUIDE If not yet in final anchoring position, shuffle the Assembly Mark hole locations at all four corners through the hole in into the final anchoring position. Note: A piece of cardboard the Leg Footing onto the concrete slab.
-
Page 11: Door Assembly
DOOR ASSEMBLY Fit the Leg Footings onto the Masonry Anchors. Fit the Bottom Brace onto the Masonry Anchors at both ends. Fasten a Strut Bracket to the Left and Right Panels using four Loosely screw an additional M10 Nut onto each Masonry Phillips Screws in each side. - Page 12 STRATCO OVER-CAR BONNET STORAGE LOCKER INSTALLATION GUIDE With two people holding the Door Panel, one person at each end of the Panel, slot the Hinge into the Hinge Bracket at both ends. Hold the Door Panel in Position whilst other person fastens...
- Page 13 Door Handle Tongue FIGURE 4.7 « SCAN THIS QR CODE TO FIND A STRATCO NEAR YOU 1300 155 155 stratco.com.au All brands and logos/images accompanied by ® or ™ are trade marks of Stratco (Australia) Pty Limited. ® Copyright August 2022...
