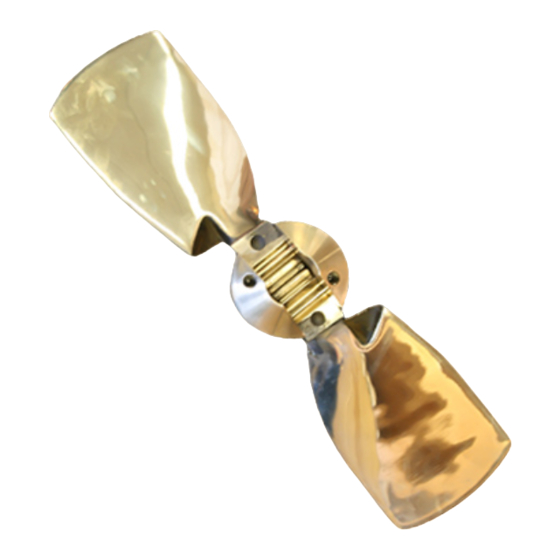

[Gori 2-Blade Saildrive Propeller Installation and Maintenance Instructions, 6/21/2022]
Gori 2-Blade Saildrive Installation Instructions
Gori 2-Blade Saildrive Installation Instructions ................................................................................... 1
Parts List .................................................................................................................................... 1
Schematic Drawings .................................................................................................................... 2
Saildrive Nut Socket Sizes ............................................................................................................ 2
Torque Settings ........................................................................................................................... 2
Installing the Propeller ................................................................................................................. 3
Removing the Propeller ................................................................................................................ 5
Replacing the Collar Zinc .............................................................................................................. 5
Removing the blades from the Blade Housing .................................................................................... 6
Operating Instructions .................................................................................................................... 7
Ahead ........................................................................................................................................ 7
Astern ........................................................................................................................................ 7
Sailing ....................................................................................................................................... 7
Cleaning and Maintenance ............................................................................................................... 8
Annual Maintenance ..................................................................................................................... 8
Underwater Installation ................................................................................................................ 8
1
Hub
2
Blades
3
Pins
4
Washer
5
Shaft nut
6
Split pin
7
Allen screws
8
Allen screws
9
Locking bolt
10
Collar zinc
11
Zinc screws
12
Loctite 243
13
Allen key
14
Allen key
Table of Contents
Parts List
Distributed By
AB Marine, Inc ▪ 747 Aquidneck Ave ▪ Middletown ▪ RI 02842
Tel: 401-847-7960 ▪ Fax: 401-849-0631
Email:
Sales@AB-Marine.com
1 x each
2 x each
2 x each
1 x each
1 x each
1 x each not used on all installations
2 x each
2 x each
1 x each
1 x each ... 2 x halves
4 x each
1 x bottle
4mm
5mm
▪ Website: www.AB-Marine.com
Advertisement
Table of Contents
Summary of Contents for AB Marine Gori
-
Page 1: Table Of Contents
1 x each … 2 x halves Zinc screws 4 x each Loctite 243 1 x bottle Allen key Allen key Distributed By AB Marine, Inc ▪ 747 Aquidneck Ave ▪ Middletown ▪ RI 02842 Tel: 401-847-7960 ▪ Fax: 401-849-0631 Email: Sales@AB-Marine.com ▪ Website: www.AB-Marine.com... -
Page 2: Schematic Drawings
Saildrive Nut M20 x 2.0 72 ft/lb (88- 98Nm) [All] Nut Locking Bolt 9-10 ft/lb (15NM) Distributed By AB Marine, Inc ▪ 747 Aquidneck Ave ▪ Middletown ▪ RI 02842 Tel: 401-847-7960 ▪ Fax: 401-849-0631 Email: Sales@AB-Marine.com ▪ Website: www.AB-Marine.com... -
Page 3: Installing The Propeller
5. Apply locking glue (Loctite 243) to the shaft and nut threads and install the GORI supplied nut (5) and tighten/torque (see above torque settings) the nut. To tighten the nut to the specified torque for your saildrive model, move the shift lever to Ahead and hold the crankshaft V-Pulley clamp nut with a wrench to stop the propeller shaft from rotating. - Page 4 11. Check that the blades will move freely from open to closed. Your Gori is water lubricated. At hauling, after cleaning, & before storage, put a light smear of a waterproof grease over the blade teeth, blade cheeks and hub fork housing contact points. This will allow you to check blade operation and stop oxidization of the metal when out of the water.
-
Page 5: Removing The Propeller
3. Install the new zinc (10) using the Loctite 243 (supplied) on each of the 4 x Allen-head bolts Distributed By AB Marine, Inc ▪ 747 Aquidneck Ave ▪ Middletown ▪ RI 02842 Tel: 401-847-7960 ▪ Fax: 401-849-0631 Email: Sales@AB-Marine.com... -
Page 6: Removing The Blades From The Blade Housing
Apply a “lite” smearing of a lithium based waterproof grease to all blade, hub fork & gear teeth contact surfaces at haul out to stop oxidizing & just prior to launch. Distributed By AB Marine, Inc ▪ 747 Aquidneck Ave ▪ Middletown ▪ RI 02842 Tel: 401-847-7960 ▪ Fax: 401-849-0631 Email: Sales@AB-Marine.com... -
Page 7: Operating Instructions
When sailing, the blades will fold and the shaft will not spin, giving you less drag and more speed. When starting to sail, to fold the Gori blades immediately, go into reverse for a brief second, then back to neutral. This stops the shaft immediately and the blades will fold and align with least resistance. Turn off the engine. -
Page 8: Cleaning And Maintenance
Do Not Use regular thread locking glue not intended for use underwater – attempts to apply it under water will ultimately fail/wash off Bondchem WT03 Thread Locker liquid glue, supplied by Gori, and Loctite Blue 242 liquid (or Red) cannot be used under water - they cure anaerobically and must be applied to a clean dry surface as per their instructions.
