User Manual:

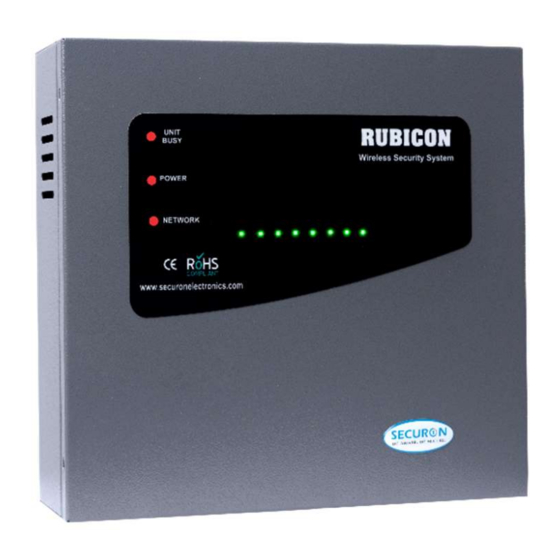

RUBICON
11 Zone Wireless Security System
Securon Electronics
BE AWARE. BE SECURE.
Manufacturer of Security Alarm
System
Contact No.:8446565207,9860003506
Email ID:
info@securonelectronics.com
securonelectronics@gmail.com
Website:www.securonelectronics.com
Contents
1 PCB Layout........................................... 1
2 Connection Diagram..........................
4 Factory Setting.................................... 2
5 Save Mobile Nos................................. 2
6.1 Download App.............................. 2
6.2 Device Selection........................... 2
6.3 Device Settings...........................
6.3.1
nos................................. 3
6.4 Timer Settings............................... 3
6.4.1
6.4.2
Sounder Timing..........
6.4.3
Auto Timer...................
6.5 Zones.............................................. 5
6.6. Device Data Check....................... 5
6.7 Notes.............................................. 5
6.8 History...........................................
7 Specifications...................................... 6
8 Warranty.............................................. 6
1
3
4
4
5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RUBICON and is the answer not in the manual?

Questions and answers

Summary of Contents for SECURON RUBICON

  • Page 1: Table Of Contents

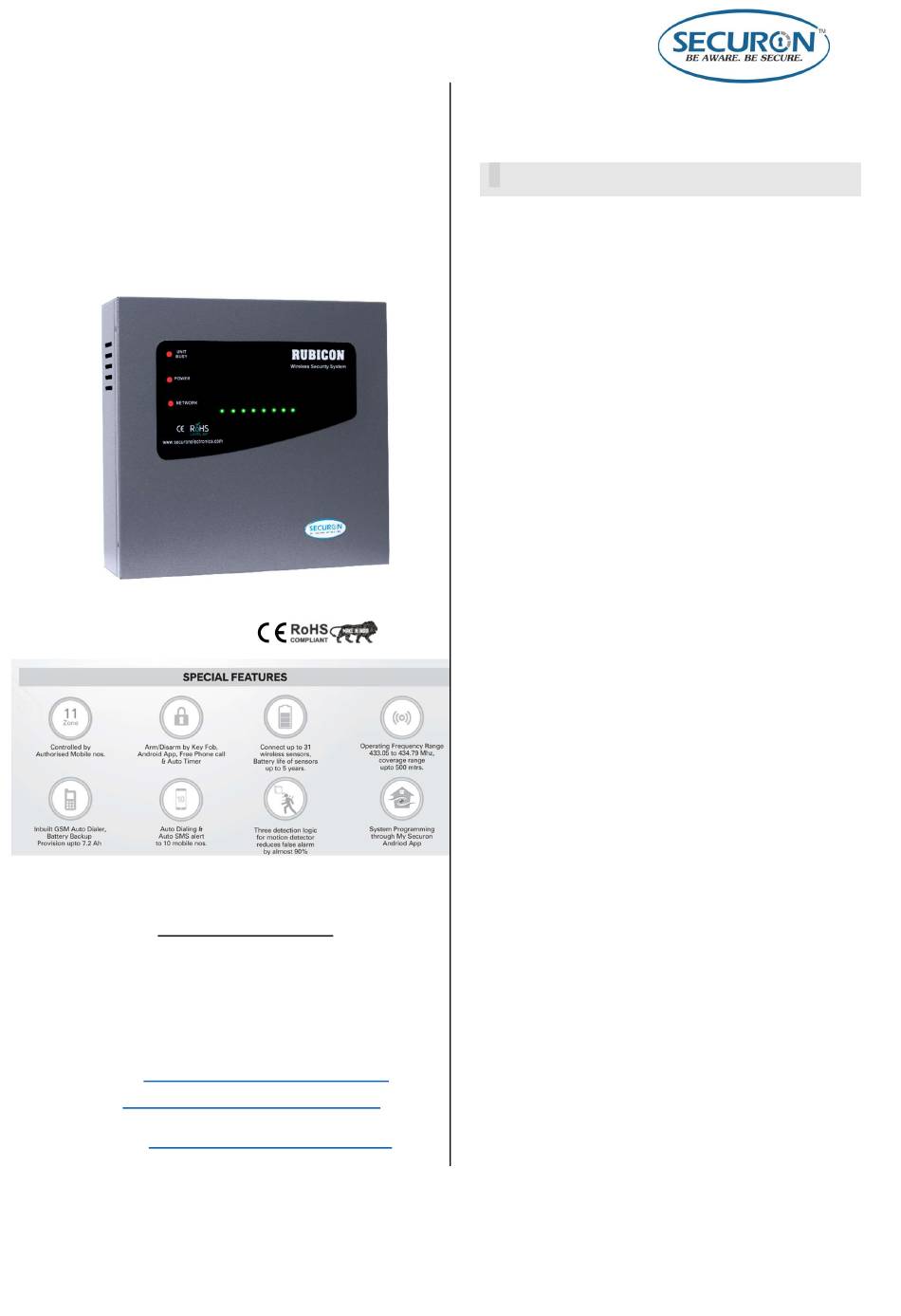

    User Manual: RUBICON Contents 1 PCB Layout……………………………………. 1 11 Zone Wireless Security System 2 Connection Diagram…………………….. 3 Schematic Diagram of Panel…………. 1 4 Factory Setting……………………………… 2 5 Save Mobile Nos…………………………… 2 6. System configuration through App.. 2 6.1 Download App………………………… 2 6.2 Device Selection………………………...

  • Page 2: Pcb Layout

    1. PCB Layout Connections RF Antenna Antenna  Micro socket Battery Connections 2. Connection Diagram (for 1 wired zone) 3. Schematic Diagram of Panel switch SMPS Battery 12v 7.2Ah...

  • Page 3: Factory Setting

    SMS and call as per 3. System configuration through App. sequence of saved 3.1 Download App. mobile nos. Download My Securon android application by scanning below QR code. 2. Save Mobile Nos. Arm mode- In this mode, all sensors are activated.

  • Page 4: Device Settings

    3.3 Device Settings 3.3.1 Set Arm/ Disarm Mobile nos.  Arm/ Disarm mobile nos. are those on Go to Main Menu [Refer Picture B]. Select which daily system activation and Device Settings. deactivation timings will be sent through SMS.  1,2,3 mobile nos. are default for arm/ disarm.

  • Page 5: Sounder Timing

    G. Sounder Timing E. Timer Settings 3.4.3 Auto Timer We can set an auto timer for arming /disarming the system, so system will arm and disarm automatically. Also, autotimer Delayed/quick zone. So Delayed zone can be converted into quick zone by tapping on SET QUICK ZONE TIME and vice versa by tapping on SET DELAYED ZONE TIME.

  • Page 6: Zones

    3.5 Zones 6.6. Device Data Check I. Zones J. Device Data Check Under this tab we can check saved data in the If some sensors are not working in a particular system. [Refer Picture J] zone, we can turn off that zone by tapping on the DISABLE button.

  • Page 7: Specifications

    If in Any doubt consult a qualified electrician. 8. Warranty All Securon products are designed for reliable, trouble-free operation. Quality is carefully monitored by extensive testing. As a result, the Control Panel is covered by a two-year warranty against defects in material or workmanship (details on request).
