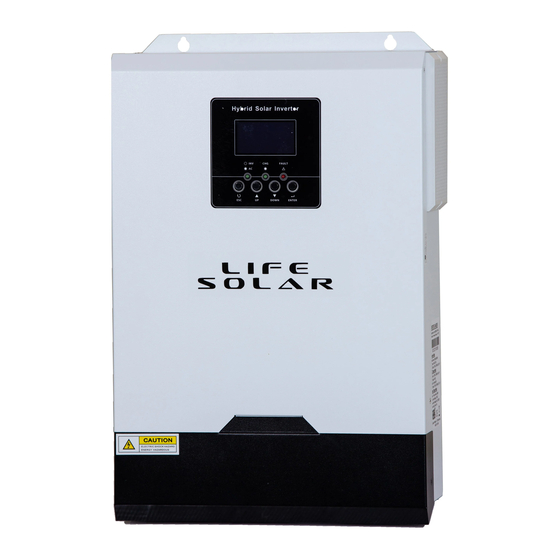

Page 1 USER MANUAL Model LSH5004826 HYBRID SOLAR INVERTER/CHARGER 3KVA 120Vac...
Page 3: Table Of Contents
Table Of Contents ABOUT THIS MANUAL ..............................1 Purpose ..................................... 1 Scope ....................................1 SAFETY INSTRUCTIONS ............................... 1 INTRODUCTION ................................2 Features .................................... 2 Basic System Architecture .............................. 2 Product Overview ................................3 INSTALLATION ................................. 4 Unpacking and Inspection .............................. 4 Preparation ..................................
Page 4: About This Manual
ABOUT THIS MANUAL Purpose This manual describes the assembly, installation, operation and troubleshooting of this unit. Please read this manual carefully before installations and operations. Keep this manual for future reference. Scope This manual provides safety and installation guidelines as well as information on tools and wiring. SAFETY INSTRUCTIONS WARNING: This chapter contains important safety and operating instructions.
Page 5: Introduction
INTRODUCTION This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Page 6: Product Overview
Product Overview LCD display Status indicator Charging indicator Fault indicator Function buttons Power on/off switch AC input AC output PV input Battery input Circuit breaker RS232 communication port Parallel communication port (only for parallel model) Dry contact (Optional) USB communication port RS485 communication port Grounding NOTE: For parallel model installation and operation, please check the parallel installation guide for the details.
Page 7: Installation
INSTALLATION Unpacking and Inspection Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should have received the following items inside of package: The unit x 1  User manual x 1  Preparation Before connecting all wirings, please take off bottom cover by removing two screws as shown below.
Page 8: Battery Connection
Install the unit by screwing three screws. It’s recommended to use M4 or M5 screws. Battery Connection CAUTION: For safety operation and regulation compliance, it’s requested to install a separate DC over-current protector or disconnect device between battery and inverter. It may not be requested to have a disconnect device in some applications, however, it’s still requested to have over-current protection installed.
Page 9: Ac Input/Output Connection
WARNING: Shock Hazard Installation must be performed with care due to high battery voltage in series. CAUTION!! Do not place anything between the flat part of the inverter terminal Otherwise, overheating may occur. CAUTION!! Do not apply anti-oxidant substance on the terminals before terminals are connected tightly.
Page 10 Please follow below steps to implement AC input/output connection: 1. Before making AC input/output connection, be sure to open DC protector or disconnector first. 2. Remove insulation sleeve 10mm for six conductors. And shorten phase L and neutral conductor N 3 mm. 3.
Page 11: Pv Connection
PV Connection CAUTION: Before connecting to PV modules, please install separately a DC circuit breaker between inverter and PV modules. WARNING! All wiring must be performed by a qualified personnel. WARNING! It'’ very important for system safety and efficient operation to use appropriate cable for PV module connection.
Page 12: Final Assembly
PV Module Wire Connection: Please follow below steps to implement PV module connection: 1. Remove insulation sleeve 10 mm for positive and negative conductors. 2. Check correct polarity of connection cable from PV modules and PV input connectors. Then, connect positive pole (+) of connection cable to positive pole (+) of PV input connector.
Page 13: Dry Contact Signal
Dry Contact Signal There is one dry contact (3A/250VAC) available on the rear panel. It could be used to deliver signal to external device when battery voltage reaches warning level. Unit Status Condition Dry contact port: NC & C NO & C Power Off Unit is off and no output is powered.
Page 14: Operation
OPERATION Power ON/OFF Once the unit has been properly installed and the batteries are connected well, simply press On/Off switch (located on the button of the case) to turn on the unit. Operation and Display Panel The operation and display panel, shown in below chart, is on the front panel of the inverter. It includes three indicators, four function keys and a LCD display, indicating the operating status and input/output power information.
Page 15: Lcd Display Icons
LCD Display Icons Icon Function description Input Source Information Indicates the AC input. Indicates the PV input Indicate input voltage, input frequency, PV voltage, battery voltage and charger current. Configuration Program and Fault Information Indicates the setting programs. Indicates the warning and fault codes. Warning: flashing with warning code.
Page 16 Load Information Indicates overload. Indicates the load level by 0-24%, 25-49%, 50-74% and 75-100%. 0%~24% 25%~49% 50%~74% 75%~100% Mode Operation Information Indicates unit connects to the mains. Indicates unit connects to the PV panel. Indicates load is supplied by utility power. Indicates the utility charger circuit is working.
Page 17: Lcd Setting
LCD Setting After pressing and holding ENTER button for 3 seconds, the unit will enter setting mode. Press “UP” or “DOWN” button to select setting programs. And then, press “ENTER” button to confirm the selection or ESC button to exit. Setting Programs: Program Description...
Page 18 Maximum charging current: To configure total charging current for solar and utility chargers. 60A (default) (Max. charging current = utility charging current + solar charging current) Appliances (default) If selected, acceptable AC input voltage range will be within 90-280VAC. If selected, acceptable AC input voltage range will be within 170-280VAC.
Page 19 110V 120V (default) Output voltage 115V 50Hz (default) 60Hz Output frequency Auto bypass manual(default) auto When selecting “auto”, if the mains power is normal, it will automatically bypass, even if the switch is off. 30A (default) Maximum utility charging current Available options in 48V models: Setting range is from 44.0V to 57.2V for 48v model, but the setting value must be less than the value of program13.
Page 20 Available options in 24V models: Setting range is from 22.0V to 28.6V for 24v model, but the setting value must be less than the value of program13. 22 V 23V (default) 24 V 25 V 27 V Available options in 48V models: Setting range is from 48V to full (the value of program26- 0.4V), but the setting value must be more than the value of program12.
Page 21 Available options in 24V models: Setting range is from 24V to full (the value of program26- 0.4V), but the setting value must be more than the value of program12. Battery fully charged (default) 27V (default) If this inverter/charger is working in Line, Standby or Fault mode, charger source can be programmed as below: Solar energy will charge battery Solar first...
Page 22 Mode1 Buzzer mute Mode2 The buzzer sounds when the input source changes or there is a specific warning or fault Buzzer mode Mode3 The buzzer sounds when there is a specific warning or fault Mode4(default) The buzzer sounds when there is a fault If selected, no matter how users Return to default display screen...
Page 23 24V models default setting: 27.0V If self-defined is selected in program 5, this program can be set up. Setting range is from 24.0V to the value of program 26 for 24v model and 48.0V to the value of program 26 for 48v model. Increment of each click is 0.1V.
Page 24 48V models default setting: 42.0V 24V models default setting: 21.0v Low DC cut-off voltage If self-defined is selected in program 5, this program can be set up. Setting range is from 20.0V to 27.0V for 24v model and 40.0V to 54.0V for 48v model.
Page 25 48V models default setting is 58.4V. Setting range is from 48V ~ 64V. Increment of each click is 0.1V. Battery equalization voltage 24V models default setting is 29.2V. Setting range is from 24V ~ 32V. Increment of each click is 0.1V. 60min (default) Setting range is from 5min to Battery equalized...
Page 26: Display Setting
Display Setting The LCD display information will be switched in turns by pressing “UP” or “DOWN” key. The selectable input voltage, input frequency, PV voltage, MPPT charging current, information is switched as below order: MPPT charging power, charging current, charging power, battery voltage, output voltage, output frequency, load percentage, load in VA, load in Watt, DC discharging current, main CPU Version and second CPU Version.
Page 27 MPPT charging power=500W MPPT Charging power AC and PV charging current=50A PV charging current=50A Charging current AC charging current=30A AC and PV charging power=500W PV charging power=500W Charging power AC charging power=500W...
Page 28 Battery voltage=25.5V, discharging current=1A Battery voltage/ DC discharging current Output frequency=50Hz Output frequency Load percent=70% Load percentage When connected load is lower than 1kVA, load in VA will present xxxVA like below chart. Load in VA When load is larger than 1kVA (≧1KVA), load in VA will present x.xkVA like below chart.
Page 29: Operating Mode Description
When load is lower than 1kW, load in W will present xxxW like below chart. When load is larger than 1kW (≧1KW), load in W Load in Watt will present x.xkW like below chart. Operating Mode Description Operation mode Description LCD display Charging by utility and PV energy.
Page 30 Charging by utility and PV energy. Charging by utility. Fault mode Note: *Fault mode: Errors are caused PV energy and utility can by inside circuit error or charge batteries. external reasons such as over Charging by PV energy. temperature, output short circuited and so on.
Page 31 if "SUB" is selected as output source priority and battery is connected, solar energy will charge battery as first priority. if solar energy is sufficient for charging, solar The unit will provide output and the utility will provide the power from the mains. It will loads.
Page 32: Fault Reference Code
Fault Reference Code Fault Code Fault Event Icon on Over temperature of inverter module Over temperature of DCDC module Battery voltage is too high Over temperature of PV module Output short circuited. Output voltage is too high. Overload time out Bus voltage is too high Bus soft start failed PV over current...
Page 33: Warning Indicator
Warning Indicator Warning Warning Event Audible Alarm Icon flashing Code Beep three times every Temperature is too High second Low battery Beep once every second Overload Beep once every 0.5 second Output power derating Beep twice every 3 seconds PV energy is low Beep twice every 3 seconds Lithium Battery Beep once every 0.5 second...
Page 34: Battery Equalization
BATTERY EQUALIZATION Equalization function is added into charge controller. It reverses the buildup of negative chemical effects like stratification, a condition where acid concentration is greater at the bottom of the battery than at the top. Equalization also helps to remove sulfate crystals that might have built up on the plates. If left unchecked, this condition, called sulfation, will reduce the overall capacity of the battery.
Page 35 However, in Equalize stage, when battery equalized time is expired and battery voltage doesn’t rise to battery equalization voltage point, the charge controller will extend the battery equalized time until battery voltage achieves battery equalization voltage. If battery voltage is still lower than battery equalization voltage when battery equalized timeout setting is over, the charge controller will stop equalization and return to float stage.
Page 36: Setting For Lithium Battery
SETTING FOR LITHIUM BATTERY Lithium Battery Connection If choosing lithium battery for the inverter, you are allowed to use the lithium battery only which we have configured. There’re two connectors on the lithium battery, RS485 port of BMS and power cable. Please follow below steps to implement lithium battery connection: 1).
Page 37 LCD setting After connecting, you need to finish and confirm some settings as follow: Program Description Selectable option AGM (default) Flooded User-Defined Standard communication Protocol form inverter supplier Battery type Support PYLON US2000 Protocol Customized Protocol or Support FOX ESS Lithium Battery Protocol Customized Protocol Customized Protocol Setting SOC point...
Page 38 Max lithium battery charging voltage is 56.0V. Max lithium battery charging current Max lithium battery charging current is 40A. Lithium battery discharging is forbidden will flash once every 1 second Lithium battery charging is forbidden will flash once every 2 second Lithium battery SOC(AH) Lithium battery SOC(%) Lithium battery SOC is 63AH and...
Page 39 2). Process of install Step 1. Use the RS485 cable to connect inverter and Lithium battery as Fig 1. Step 2. Switch on Lithium battery. Step 3. Press more than three seconds to start Lithium battery, power output ready. Step 4. Turn on the inverter. Step 5.
Page 40 4. Set as C.V voltage. floating charging voltage default setting: 54.0V Floating charging voltage If self-defined is selected in program 5, this program can be set up. Setting range is from 24.0V to the value of program 26 for 24v model and 48.0V to the value of program 26 for 48v model.
Page 41: Specifications
SPECIFICATIONS Table 1 Line Mode Specifications INVERTER MODEL 3KVA Input Voltage Waveform Sinusoidal (utility or generator) Nominal Input Voltage 120Vac 95Vac±7V (UPS) Low Loss Voltage 65Vac±7V (Appliances) 100Vac±7V (UPS); Low Loss Return Voltage 70Vac±7V (Appliances) High Loss Voltage 140Vac±7V High Loss Return Voltage 135Vac±7V Max AC Input Voltage 150Vac...
Page 42 Table 2 Inverter Mode Specifications 3KVA INVERTER MODEL Rated Output Power 3KVA/3KW Output Voltage Waveform Pure Sine Wave 110/120Vac±5% Output Voltage Regulation 60Hz or 50Hz Output Frequency Peak Efficiency Overload Protection 5s@≥150% load; 10s@110%~150% load 2* rated power for 5 Surge Capacity seconds Nominal DC Input Voltage...
Page 43 Table 3 Charge Mode Specifications Utility Charging Mode INVERTER MODEL 3KVA 60Amp Charging Current (AC) (@ V =120Vac) 80Amp Charging Current (@ V =120Vac) (PV+AC) Bulk Flooded 58.4 Vdc Charging Battery Voltage AGM / Gel 56.4 Vdc Battery Floating Charging Voltage 54Vdc Overcharge Protection 63Vdc...
Page 44: Trouble Shooting
Net Weight, kg 9.9(10.2) TROUBLE SHOOTING Problem LCD/LED/Buzzer Explanation / Possible cause What to do Unit shuts down LCD/LEDs and buzzer automatically will be active for 3 The battery voltage is too low 1. Re-charge battery. during startup seconds and then 2.
Page 45: Parallel Installation Guide
Parallel Installation Guide 1. Instruction This inverter can be used in parallel with two different operation modes. 1. Parallel operation in single phase with up to 12 units. The supported maximum output power is 36KW/36KVA. 2. Maximum 12 units work together to support three-phase equipment. 10 units support one phase maximum.
Page 46: Wiring Connection
4. Wiring Connection NOTICE: It’s requested to connect to battery for parallel operation. The cable size of each inverter is shown as below: Recommended battery cable and terminal size for each inverter: Stripping Length: Dimensions Cable Torque L1 (mm) L2 (mm) value Model Wire Size...
Page 47 Recommended breaker specification of AC input with single phase: Model 2 units 3 units 4 units 5 units 6 units 7 units 8 units 9 units 10 units 11 units 12 units 3KVA 100A 150A 200A 250A 300A 350A 400A 450A 500A 550A...
Page 48: Parallel Operation In Single Phase
5. Parallel Operation in Single phase Two inverters in parallel: Power Connection Communication Connection Three inverters in parallel: Power Connection...
Page 49 Communication Connection Four inverters in parallel: Power Connection Communication Connection...
Page 50 Five inverters in parallel: Power Connection Communication Connection Six inverters in parallel: Power Connection Communication Connection Note: Nmax=12units...
Page 51: Support 3-Phase Equipment
6. Support 3-phase equipment One inverter in each phase: Power Connection Communication Connection Three inverters in each phase: Power Connection Note: It’s up to customer’s demand to pick 10 inverters on any phase. P1: L1-phase, P2: L2-phase, P3: L3-phase. N=N1+N2+N3,Nmax=12units...
Page 52 N1max=10units is in one phase and one inverter for the other two phases（N2=N3=1）: Power Connection Note: It’s up to customer’s demand to pick 7 inverters on any phase. P1: L1-phase, P2: L2-phase, P3: L3-phase. N=N1+N2+N3,Nmax=12units N1max= N2max =9units is in two phases and one inverter for the one phase（N3=1）: Power Connection Communication Connection...
Page 53: Support Split Phase
7. Support split phase Wiring Connection Two inverters in parallel: More than two inverters in parallel: Note: It’s up to customer’s demand to pick 11 inverters on any phase. 2P1: L1-phase, 2P2: L2-phase, N=N1+N2, Nmax=12units LCD setting Steps Step 1: Check the following requirements before commissioning: ...
Page 54: Pv Connection
Note: It's necessary to turn off switch when setting LCD program, Otherwise, the setting cannot be programmed Step 3: Turn on all units sequentially. Step 4: Switch on all AC breakers of Line wires in AC input. If AC connection is detected and split phases are matched with unit setting, they will work normally.
Page 55: Lcd Setting And Display
9. LCD Setting and Display Program: Setting Program Description Selectable option Parallel: This inverter is operated Single: This inverter is used in in parallel system. single phase application. (Need hardware support) L1 phase The inverter is operated in L1 phase in 3-phase application L2 phase The inverter is operated in L2 AC output mode...
Page 56 When “ONE” is selected, as long as one of inverters has been connected to PV modules and PV input is normal, parallel or 3- phase system will continue working according to rule of “solar first” setting. For example, two units are One Inverter (Default): connected in parallel and set “SOL”...
Page 57: Commissioning
Fault code display: Fault Code Fault Event Icon on Host loss Synchronization loss Incompatible battery type Firmware version inconsistent Warning code display: Warning Warning Icon on Code Event CAN communication loss AC output mode setting is different Battery voltage detected different 10.
Page 58: Trouble Shooting
Step 5: If there is no more fault alarm, the parallel system is completely installed. Step 6: Please switch on all breakers of Line wires in load side. This system will start to provide power to the load. 11. Trouble shooting Situation Fault Solution...
