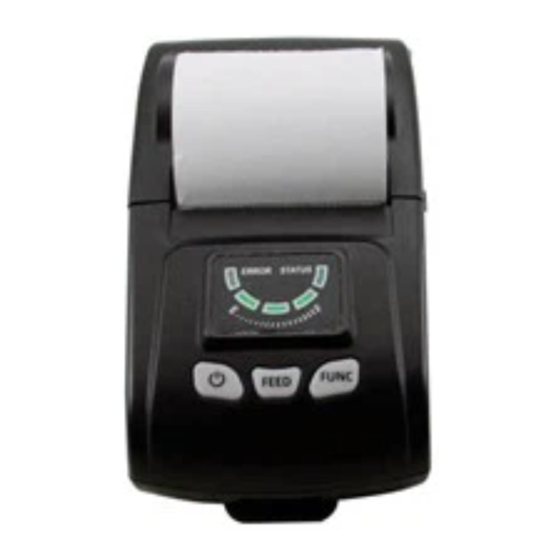

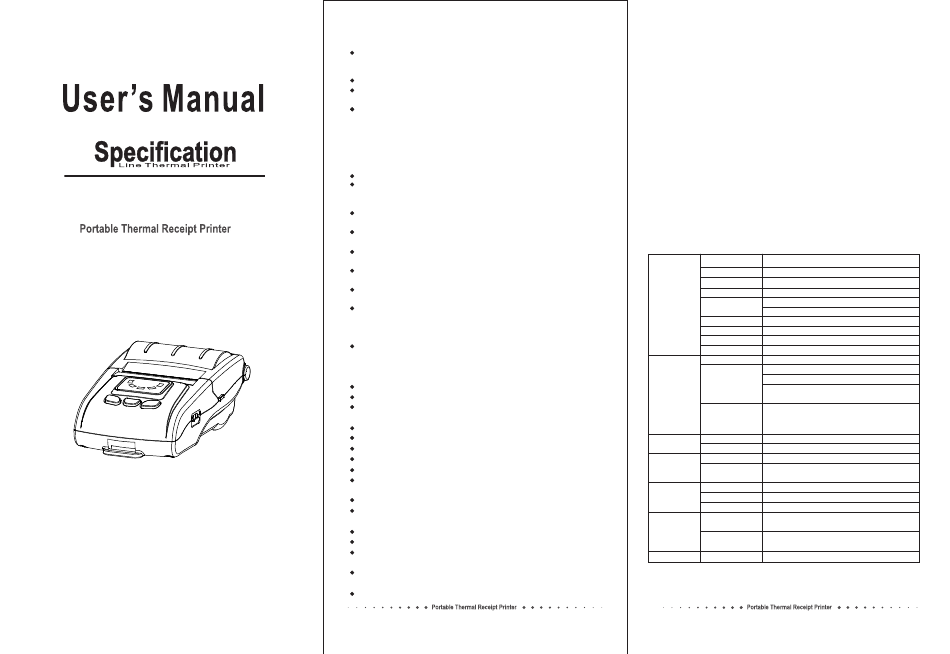

Core Smart PT-280 User Manual

PT-280 / KS-280
sales@core-smart.cn
Safety warning
Only Supplied AC Power Adapter and Lithium Battery are allowed to
be used for this printer. Otherwise, it may cause device damage,
battery leakage, fire, even an explosion.
Keep the battery away from fire and direct heat source.
Please remove the battery from the printer, and keep it in a separate
place, before your printer remains idle for long.
In case of accident, as the battery's liquid is corrosive, it should be
quickly flushed away with a large quantity of water if you contact
with it. If the liquid is accidently splashed into the eye, flush with
copious amounts of water and seek medical attention immediately.
Safety notice
Do not touch the paper tear-off knife at any time.
The printer head is hot when it is in printing process. Please avoid
touching the printer head and the area around it when the printer is
in operation.
Do not touch the printer head and plug-in parts to avoid print head
damage.
Do not open the cover during printing process. Otherwise, it may
cause failure to print.
Intend to print in good quality and preserve the life of devise service,
using the paper roll which we recommend.
Do not try to print when the printer run out of paper. Otherwise, the
printer head and the rubber roller will be damaged.
Make sure the power switch is turned off when you are changing the
connection with interface.
Once water or conducting material (eg. Metal ) get into the printer,
turn off the power immediately.
Please make sure your printer has 60% of battery or above, before it
remains idle for long.
Please keep this manual for reference later.
Main Features:
Streamlined structure.
Drop in paper loading, easy operation.
Support thermal paper width 58mm, diameter 50mm, thickness
0.06~0.08mm.
Rechargeable lithium battery:2200mAh/7.4V, long cycle life.
Power adapter: 9V-1A, AC100-240V.
Use supplied battery and power adapter, charge time will be 2.5~3.5h.
Low-power mechanism.
Automatic sleep mode function.
Two kinds of Interface optional: USB+Bluetooth (standard ),
USB+WIFI (optional).
USB+Bluetooth: BT3.0 and BLE4.0, support Android and iOS system.
USB+WIFI: AP/STA/AP+STA mode to set up the networks.
Compatible with ESC/POS printing commands, support NV logo
download printing, various 1D bar code and QR code.
Low power consumption, good print quality, 50km mechanism lifespan.
Support GB18030 Simplified Chinese, Big5 traditional Chinese, Korean,
international character set and extended code pages.
LED can be showed abnormal condition of the printer, battery capacity
status, charging and connection status ect.
Freely offer DLL, SDK, Demo for development.
Unpacking
After unpacking the unit, please check that all the necessary
accessories are included in the package.
User's manual
Printer
Lithium battery
USB cable
Power adapter
Technique Spec
Print method Direct thermal line
Print width 48mm
Dot density 384dot/line
Print speed 60mm/s (max)
Printing
Interface USB+Bluetooth3.0/BLE4.0 (Standard)
USB+WiFi (Optional)
Paper width 58mm
Paper diameter 50mm (max)
Paper thickness 0.06~0.08mm
Compatible with ESC/POS
Print commands
Barcode Fonts GB18030, Big5, Korean
Character size ANK Font: Font A: 12*24dots
Font B: 9*17dots
Simplified/Traditional Chinese Character,
Korean: 24*24dots
Barcode UPC-A/UPC-E/EAN(JAN)13/
EAN(JAN)8/CODE39/CODABAR/
ITF/CODE93/CODE128/QR code
Data 4K bytes
Buffer
NV Flash 60K bytes
Dimension 148.5mm*86mm*58.5mm
Physical Weight 288g
Properties
(including battery)
Power adapter Input: AC100-220V output: DC 9V/1A
Power
Lithium battery 1800mAh~1900mAh/7.4V
Charge period 2.5h-3.5h
Work
Environment
Environment Temperature: 5～45℃, Humidity: 10～80%
Storage
Environment Temperature: -10～50℃, Humidity: 10～90%
Mechanism 50km
Reliability
1pcs
1pcs
1pcs
1pcs
1pcs
