Summary of Contents for RackBuddy The Walk In RB-15-0003-15

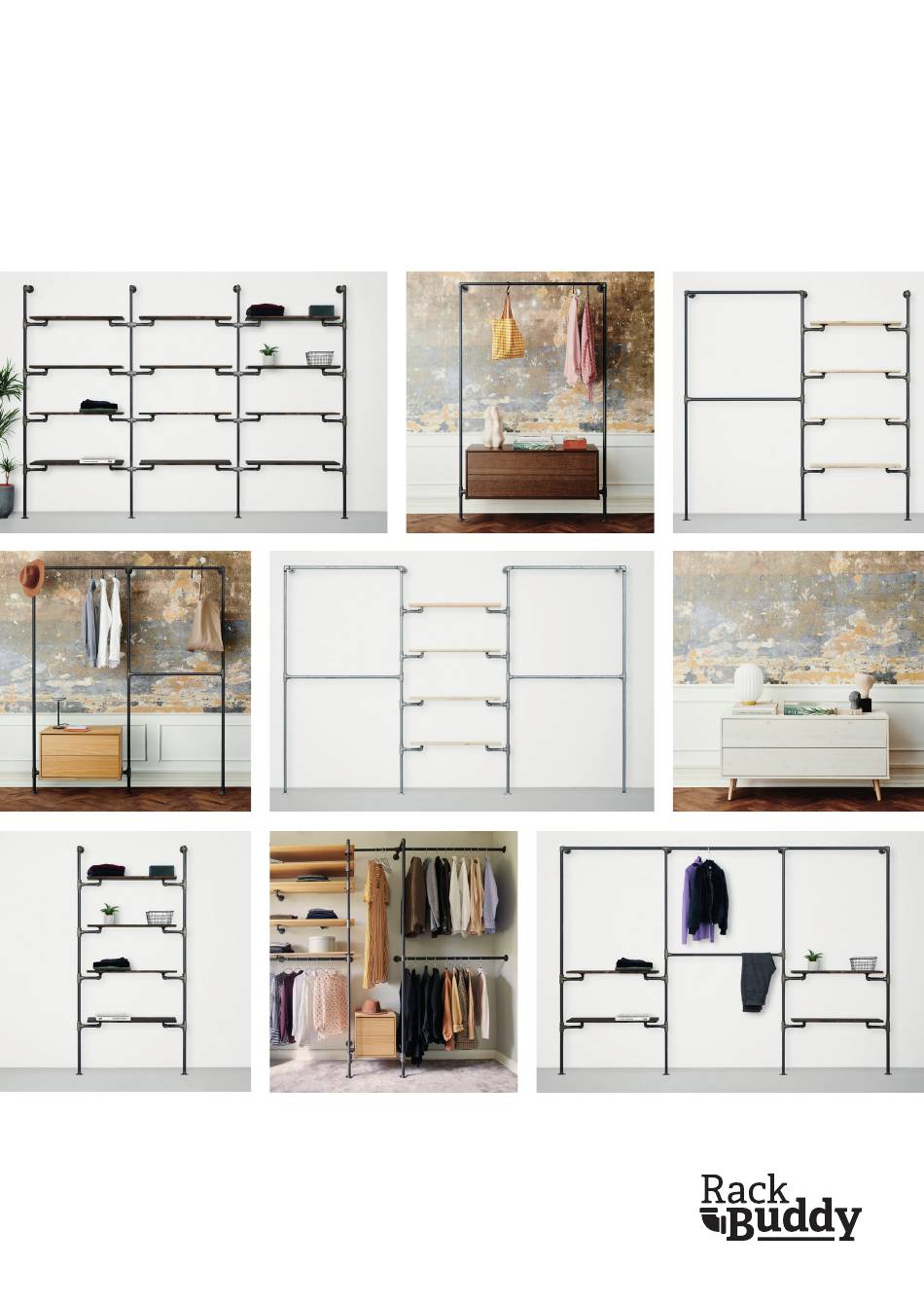

- Page 1 THE WALK IN Examples of combinations Please follow the assembly instructions to make sure your RackBuddy experience will serve you the way you deserve.
- Page 2 INSTRUCTIONS · 1 row marked as grey in 2-6 · 2 rows or more Use 4 way fittings...
- Page 4 Slide on tees Lock with flange...
- Page 5 Adjust height Add pipe or shelf support Mount shelf with screws...
- Page 6 INSTRUCTIONS Please follow the assembly instructions in order to build up everything correctly. If you have any questions, do not hesitate to contact us. We hope you like your new RackBuddy! Cabinet: Assemble side, top and bottom with 12 screws.
- Page 7 A Put the 2 clamps on the rods and tighten screws. B Insert the bars into the clamps and tighten screws. C Place the Cabinet or Dresser on the bars. D Insert and tighten the 4 screws from the bottom.
- Page 8 PARTS CABINET PARTS DRESSER: see instructions for Dresser - can be found with components. X8, X12 or X16 X2, X3 or X4 Recommended tools: rackbuddy.com...
