Two Wests & Elliott B10 Assembly Instructions

Professional potting bench

Advertisement

COMPONENTS

Description
A
Corner Legs
B
Top Shelf Uprights
C
Length 'Z' section
D
Side 'Z' section
E
Lower Side 'T' section
F
Lower Shelf
G
Upper Shelf
H
Upper Shelf Stays
Jumbo Tray
Mesh Support
½" Bolts & Nut
Edging Strip
Please check the components.

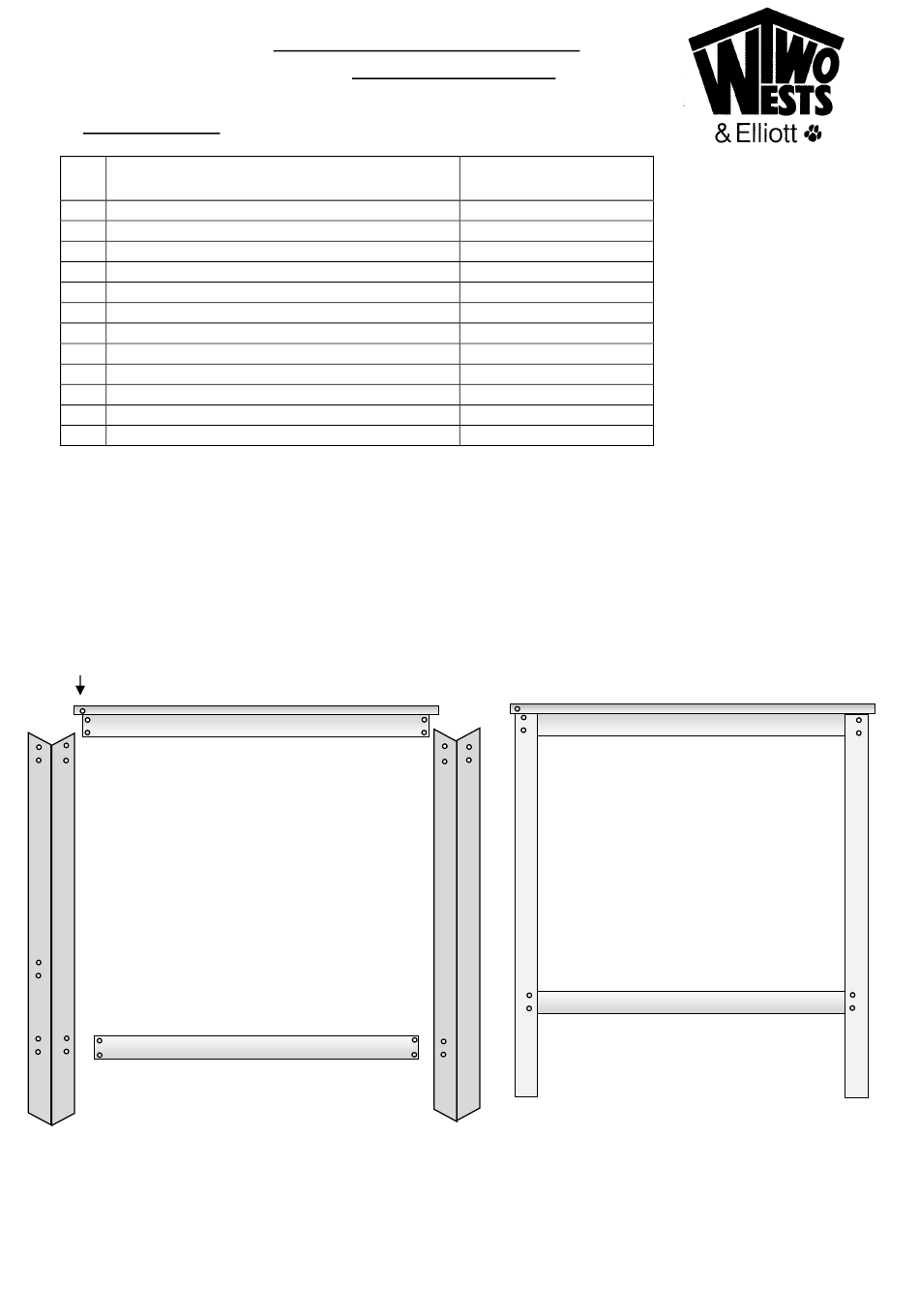

Assemble the two end sections as below, finger tight only, with the angled corner legs to the outside of the 56cm Side Z
section.
The hole on the upper edge of the side "Z" needs to be positioned over the back leg.
Please note that the back legs have four additional holes in the back face
Hole towards the back.
A
Back Leg
PROFESSIONAL POTTING BENCH
Assembly Instructions
91cm
46cm
101cm
56cm
46.5cm
95cm
(Base and Back Panel)
101cm
D
A
E
B10 (14)
Qty
4
2
2
2
2
1
1
2
1
1
52
2m
Front Leg

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Two Wests & Elliott B10

  • Page 1 PROFESSIONAL POTTING BENCH B10 (14) Assembly Instructions COMPONENTS Description Corner Legs 91cm Top Shelf Uprights 46cm Length ‘Z’ section 101cm Side ‘Z’ section 56cm Lower Side ‘T’ section 46.5cm Lower Shelf 95cm (Base and Back Panel) Upper Shelf 101cm Upper Shelf Stays...
  • Page 2 Join the two end sections together using the length “Z” sections making sure that the one with the additional hole at each end is to the back. Back “C” with the additional holes at each end “C” front Attach the two Top Shelf Uprights to the outside of the top edge of the main frame.
  • Page 3 Bolt the Upper Shelf to the top of the shelf uprights. The two shelf stays then bolt onto the sides of the tray and the holes at the top of the uprights Upper Shelf Back Panel Base tray sits onto the two “T” braces The Lower Tray is in two parts.
