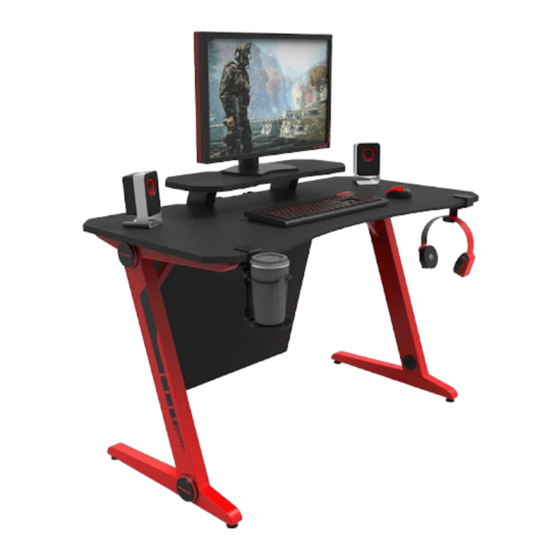

Std GD21 Gaming desk
MOUNTING INSTRUCTIONS
PARTS LIST
Tabletop
1
Left leg
2
≤80kg
(≤176.4lbs)
CAUTION : DO NOT EXCEED
MAXIMUM LISTED WEIGHT
CAPACITY. SERIOUS INJURY
OR PROPERTY DAMAGE MAY
OCCUR.
Right leg
3
Cross-bar
4
Plug board holder
5
Tools
Baffle
6
PARTS LIST
A) Cable hole
B) Adjustable pad
×4
×4
F) Cable management
G) Decorative cover
×2

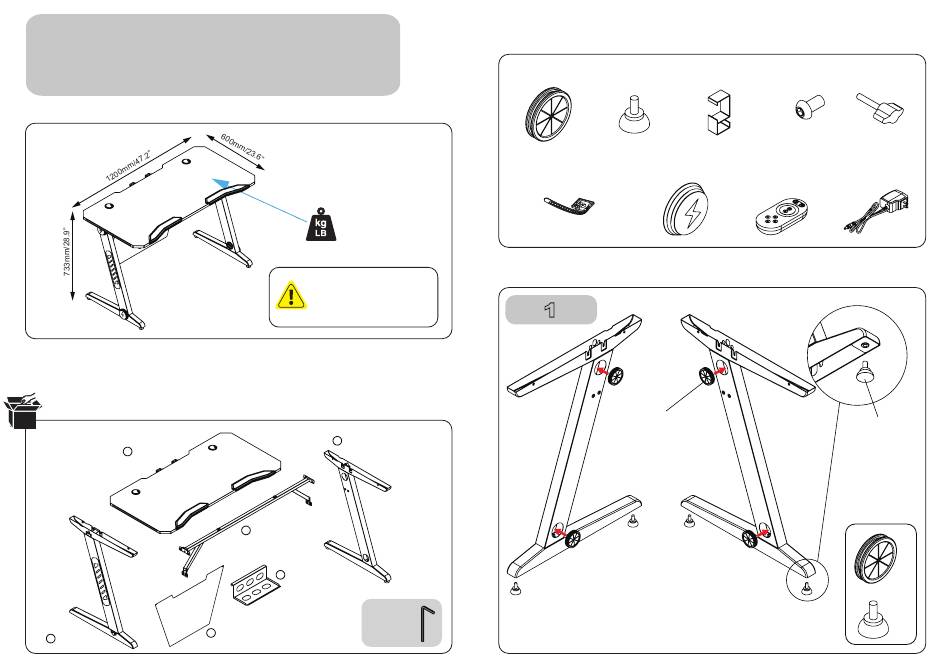

INSTALLATION STEPS
1
A ×4
Put cable hole A (x4) into the hole
Swirl adjustable pad B (x4) into base
C) Cable clamp
D) M6×12mm
E) Knob
×4
×6
H) Remote
I) Power cord
×4
A
B
×2
B ×4
×4
×4
Advertisement
Summary of Contents for Std GD21
- Page 1 Std GD21 Gaming desk PARTS LIST MOUNTING INSTRUCTIONS A) Cable hole B) Adjustable pad C) Cable clamp D) M6×12mm E) Knob ×4 ×4 ×6 ×2 ×4 F) Cable management G) Decorative cover H) Remote I) Power cord ≤80kg ×2 ×4 (≤176.4lbs)
- Page 2 Connect either wire interfaces on the upper leg D ×4 Lock G (x2) on both leg ×4 Tools ×2 Tighten the screws on the cross-bar with an allen key...
- Page 3 Firstly, gently press the pins to lock, the desktop can be installed Connect wire interfaces between tabletop and both legs Secondly, tighten E (x2) to fix the cross bars and the tabletop Connect wire interfaces E ×2 Slightly lift the frame to assembly C (x4) and Lock G (x2) on both leg ×2 C ×4...
- Page 4 Tips Uncover the back glue of F and stick it under the desktop, F can be used to arrange cables ×2 Cables INSTRUCTIONS FOR THE USE OF REMOTE Power Key: Press to turn on/off. D ×2 ×2 Pause Key: Press to pause under jumpy changing or Tools Use D (x2) to connect steel connector with baffle...
- Page 5 Mode Keys (M+, M-) Mode Keys: Press the keys to adjust modes. There’re totally 11 modes (modes as below table). M+ : Next mode M- : Previous mode Changes of M key on the touch remote as below: Mod e number Function Remark Static red...
