QiCK

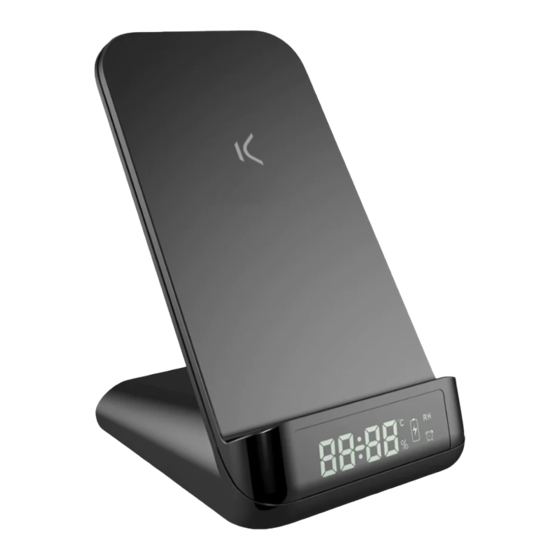

Fast Wireless Charger
User manual
BXCQI17
Technical Specifications:
Wireless output power: 5W/7.5W/10W/15W
USB -A output: 5V/1A
2 Coils: 1 Coil*2
Charging distance: ≤8mm
Standard: Qi1.2.4
Charging e ciency: up to 80%
Connection ports: USB-C, USB-A
Heat dissipation: Built-in fan
LED panel for status indicator
Date and time indicator
Alarm indicator
Temperature indicator
Material: ABS
Dimensions: 136.5 x 72.5 x 113mm
Weight: 174g (with fan)
Operating temperature: -10ºC~45ºC
Storage temperature: -20ºC~85ºC
Only Qualcomm QC2. 0/ 3.0 or PD adapters support fast charging. It is
recommended to use a 24W adapter to obtain 15W of charging power. The
adapter is not included.
In the box:
- 1 x QiCK Wireless charger
- 1 x USB-C to USB-A cable
Advertisement
Table of Contents
Summary of Contents for QiCK BXCQI17
- Page 1 Only Qualcomm QC2. 0/ 3.0 or PD adapters support fast charging. It is recommended to use a 24W adapter to obtain 15W of charging power. The adapter is not included. In the box: - 1 x QiCK Wireless charger - 1 x USB-C to USB-A cable...
- Page 2 Diagram: 10:30: ①M key ② +key ③ - key ④ USB-A output port: output 5V/1A ⑤ TYPE-C power supply input port ⑥ LED Panel User guide ①Connect the power adapter to the socket. ②Connect the adapter to the USB 2.0 interface, and the other USB-C to the wirelesscharger.
- Page 3 Indicator for wireless charging: Wireless standby: figure flashes slowly Wireless charging: figure is always ON Protected Mode (not Qi compatible smartphone): figure flashes fast Full charge icon (only for Samsung mobiles): figure is always on and shows “100%” in LED Panel, as below: Clock, Alarm Clock LED Panel shows the ICONS as below: There are two ways to show the information on LED panel: A display mode and 1...
- Page 4 5 seconds TM-Time DT-Date Y-Year Alarm Temperature Display Display Display Display Display Press and hold Press and hold Press and hold Press and hold M key for 2 seconds M key for 2 seconds M key for 2 seconds M key for 2 seconds Time Date Year...
- Page 5 Setup Time setup Power on, then it will show Time Display Mode automatically. The system default time is 0:00, January 1, 2018. As below 00 00 TM icon will be on when the system enters the Time Display Mode. Then, press and hold M button 2 seconds to switch to Time Setting Mode.
- Page 6 Alarm clock setup Alarm Clock default time is 0:00. Power on, press M key to switch to Alarm Clock Display Mode, as below: TM icon will be on. Icon is steady, not flashing between hour and minute number. The icon will be displayed steadily when the Alarm is on, this icon will flash when the Alarm is o .
- Page 7 Maintenance recommendations • Regularly clean the product with a dry cloth. The product must be disconnected or switched o when you clean it. • Keep the connectors and/ or ports free from dust, lint, etc. to prevent improper connections. • Avoid breaking the device. Do not put objects over it or bend it too strong. •...
