Summary of Contents for Stealth Acoustics LineaResponse LRX-83

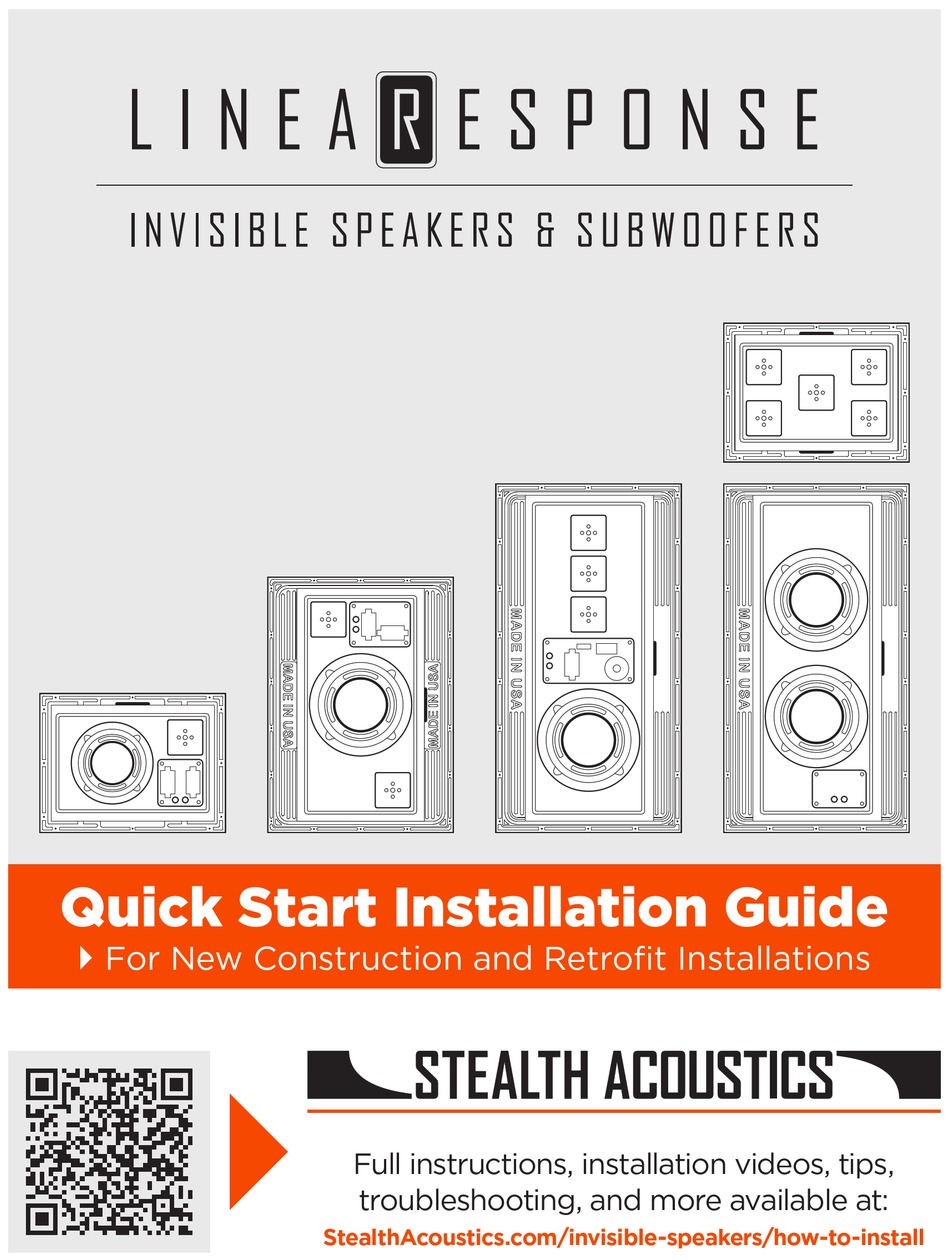

- Page 1 Quick Start Installation Guide For New Construction and Retrofit Installations Full instructions, installation videos, tips, troubleshooting, and more available at: StealthAcoustics.com/invisible-speakers/how-to-install...
- Page 2 RETROFIT INSTALLATION Installing a Stealth Acoustics Invisible Speaker into an already finished wall is similar to making a wallboard patch. Remove the overlay sheets that comes attached to the face of each speaker and temporarily attach them to the walls to assist in planning speaker placement.
- Page 3 5. CONNECT SPEAKER WIRES 1/16" (2mm) Insert the speaker wires into the binding posts on the speaker crossover (or BX back box) noting proper polarity. For smaller gauge wires, bend the exposed wire back upon itself prior to insertion to make better contact with the binding posts.
- Page 4 1/16" (2 mm) of joint compound over the face of the speaker panel. Stealth Acoustics speakers do not require a skim coat to attain a smooth finish. However, some advanced finishing techniques and materials such as Venetian plaster or heavy plaster coats may require skimming over the front of the speaker.
