- Page 1 INSTRUCTION MANUAL CLMU / CLMUP Automatic Tip Cleaner with Metal/Fiber Brushes...
-
Page 2: Packing List
This manual corresponds to the following references: CLMU-A with metal brushes CLMU-PB with fiber brushes (non-metal) Packing List The following items are included: Fiber Brushes Metal Brushes Brush reference according purchased cleaner model. Brushes already installed inside the cleaner. Automatic Tip Cleaner with... -
Page 3: Features And Connections

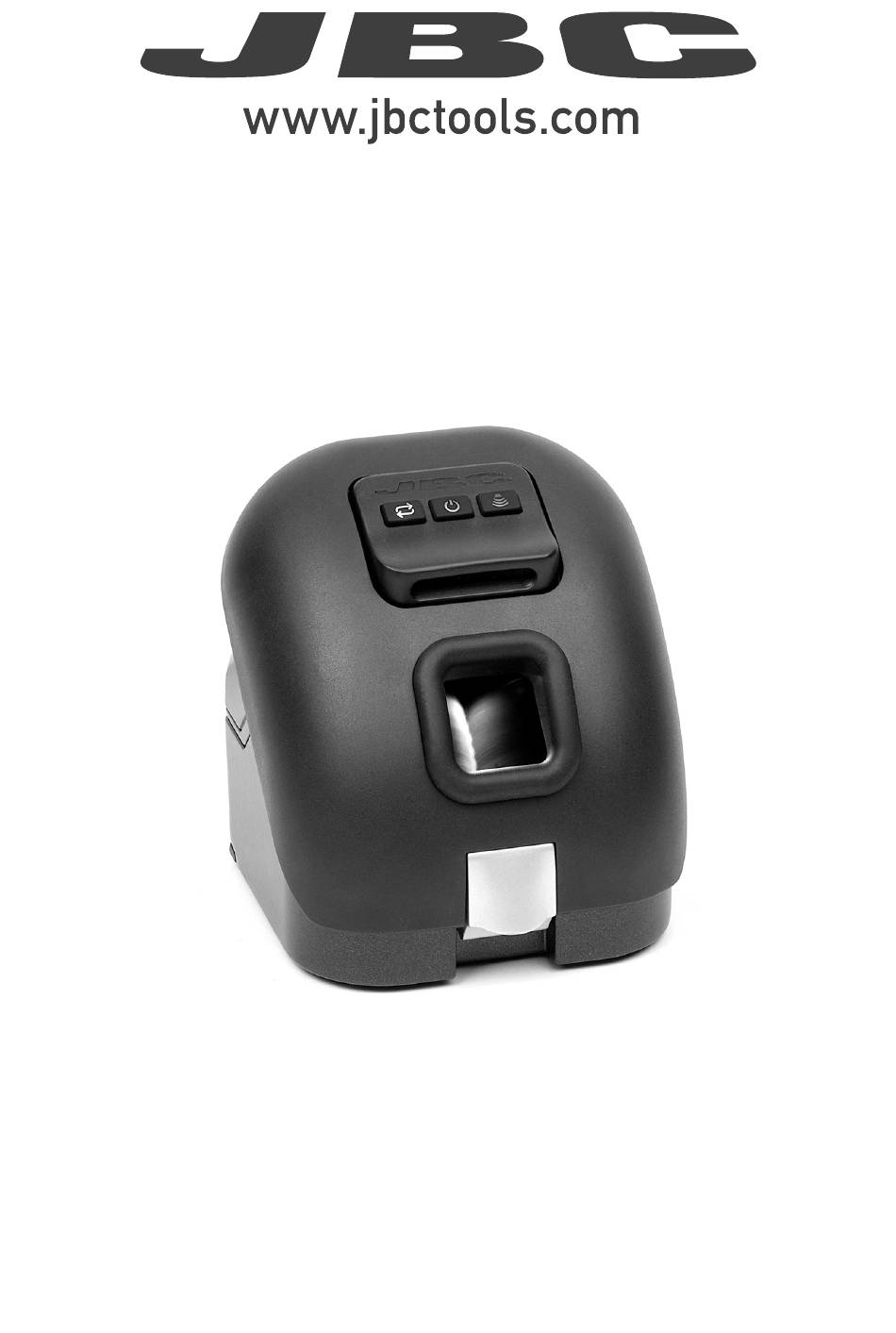

para manuales - color gris 200 mm Features and Connections 130 mm 130 mm 100 mm Switch Panel Splashguard Sensor Window 80 mm Window 60 mm 50 mm 40 mm Locking Tab USB-B Connector Feets for Vertical Power Cord Access ESD Connector Socket (connect to ESD Common... -
Page 4: Operation
If excessive pressure is applied with the tool against any of the brushes, the cleaner stops automatically in order to protect the motors. Putting the tool out of the sensor detection area automatically deactivates the cleaner. CLMUP/ CLMU just 1 second The tip cleaner is automatically switched off if the splashguard is opened during operatio... - Page 5 Set Up 130 mm 130 mm CLMU/CLMUP allows you to choose between continuous operation and sensor operation. The tip cleaner contains a sensor that detects when the soldering cartridge approaches the window 100 mm and automatically starts the brush rotation.
-
Page 6: Changing Brushes
Changing Brushes Before opening the tip cleaner, unplug it from the mains. Open Splashguard Pull the locking tab (1) to open the splashguard. Locking Removing / Inserting Brushes Press the brush buttons (2) to remove the Align the brushes with the axis and push them brushes (3). - Page 7 para manuales - color gris 200 mm Accessories: Brush Range 130 mm 130 mm All brushes are offered with black and blue core, to distingish them when working with lead-free and leaded solder. 100 mm Note: As a refereance, the cleaning process should last around 1 second. 80 mm CL1008 CL1007...
-
Page 8: Usb Connector
Update the tip cleaner software via USB connection: USB AB Cable Updater JBC Manager www.jbctools.com/manager.html Manage and monitor as many stations as your PC can handle by using the JBC Manager. You can export data to another PC. any JBC Station USB AB Cable... -
Page 9: Maintenance
- Brushes (Metal and Fiber Brushes ) can be cleaned by immersing them in isopropyl alcohol. They must be allowed to dry before use. 60 mm - Replace any defective or damaged piece. Use original JBC spare parts only. 50 mm - Repairs should be performed only by a JBC authorized technical service. - Page 10 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the appliance for any purpose other than tip cleaning. It is not a tool stand. - The AC Adapter power supply must be plugged into approved bases. - Do not leave the appliance unattended when it is running.
-
Page 11: Specifications
- color gris 200 mm Specifications 130 mm 130 mm CLMU / CLMUP Automatic Tip Cleaner with Metal/Fiber Brushes Ref.: CLMU-A with metal brushes 100 mm Ref.: CLMU-PB with fiber brushes - AC Adapter: Input: 100-240 V, 5/60 Hz... - Page 12 Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
