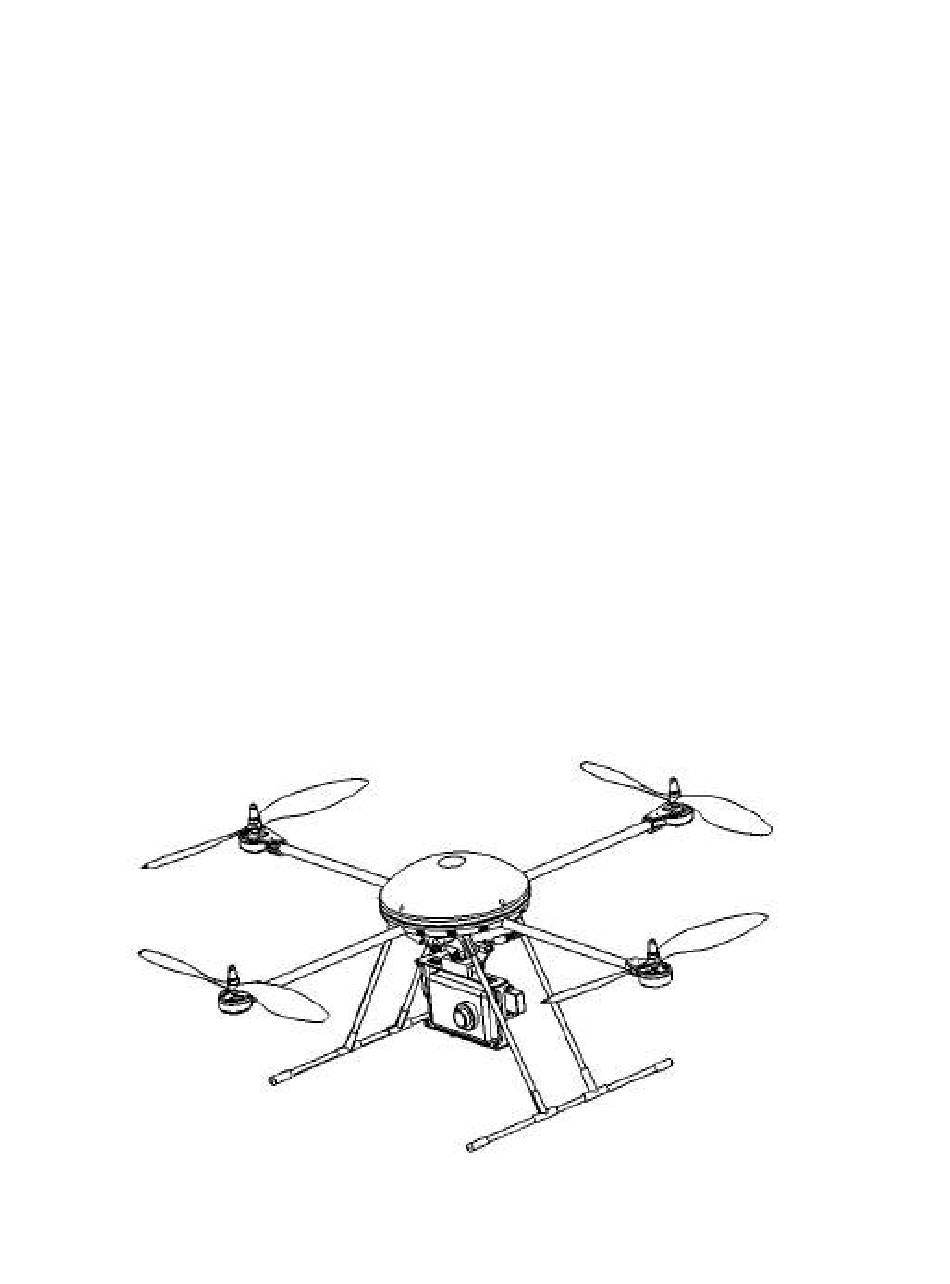

- Page 1 Turbo Ace X830-S Quad Flyer User Manual V3.8...
-
Page 2: Table Of Contents
Turbo Ace X830-S Copyright 2011 Turbo Ace TABLE OF CONTENTS INTRODUCTION 1.1 Welcome to the World of Quadcopters 1.2 Features 1.3 Specification 1.4 Packing List 1.5 Caution & Safety 1.6 DOA Claim DIAGRAMS & PARTS 2.1 Profile View 2.2 Top & Bottom View 2.3 Parts Specifications... -
Page 3: Introduction
INTRODUCTION 1.1 Welcome to the World of Quadcopters A Sputnik Moment in the making, the gravity defying Turbo Ace X830-S is poised to spark a wide range of innovative applications in aerial video photography and surveillance. Once dominated by manned aircraft and hot air balloons, aerial shots are often too cumbersome and cost prohibitive. -
Page 4: Features
Turbo Ace X830-S vibration mounts and dynamically balanced motors for high definition video production and a host of other upgrades to improve reliability. Unlike most quadcopters, the X830-S is fully assembled and tested for outdoor flight and it is ready to produce high quality video right out of the box without spending even a few days to tune it. -
Page 5: Packing List
2 lbs. • Wind Tolerance: Class 4 1.4 Packing List 1 x Turbo Ace X830-S Quad Flyer (Hub Chassis, 4 x Motors, ESC, Flight Controller) • • 2 x CCW Propellers (1238 Type) & 2 x CW Propellers (1238R Type) •... - Page 6 Turbo Ace X830-S assume all liability for any damages caused in the operation of the X830-S including but not limited to personal injury, equipment and property damage. please do not pull on the • If your package includes a transmitter radio, vulnerable transmitter’s antenna when you are removing it out of the...
-
Page 7: Doa Claim
There is never a need to plug in the X830-S flight battery for any setting or receiver adjustments including transmitter calibration. Turbo Ace, its distributors and dealers are not liable for any damages caused by the mishandling of the X830 and it’s associated equipment. -
Page 8: Diagrams & Parts
Turbo Ace X830-S DIAGRAMS & PARTS 2.1 Profile View 2.2 Top & Bottom View ... -
Page 9: Parts Specifications
Turbo Ace X830-S 2.3 Parts Specification Part Specifications Units Remarks Chassis ABS Composite Material Cover High Strength Aluminum Tubing Skid Fiberglass / Rubber / Landing Aluminum C2806 KV600 Motor Special Brushless Motor 1238,1238R Propeller Nylon Composite- High Special impact... -
Page 10: Technical Parameters
Turbo Ace X830-S 2.4 Technical Parameters Diameter From Outer Edges of Width 680 mm ±3mm Motors Extended Diameter From Extended 885 mm Width Propellers Motors Diameter From Center of Motor to Center to 580mm ±3mm Center of Motor on Opposite Side... -
Page 11: Parts Diagram
Turbo Ace X830-S 2.5 Parts Diagram 1 Propeller Crown Cap 11 Flight Controller / Gyro 2 Motor Mount 12 Optional Receiver 3 Propeller 13 Chassis 4 Rubber Gasket 14 Extension Arm 5 Brushless Motor 15 Beam Spacer 6 Mounting Beam... -
Page 12: Motor & Esc & Rotation Ring Locations
Turbo Ace X830-S 2.6 Motor, ESC & Rotation Ring Location X830-S SETUP 3.1 Unpacking the X830-S (1) Remove all X830-S contents from the box. Do not pull on the transmitter antenna to remove the transmitter out of the box because you might damage the antenna. Pull on the neck strap to remove it out of the box. -
Page 13: Skid Landing Assembly
Turbo Ace X830-S 3.2 Skid Landing Assembly (1) Remove one rubber end cap from a horizontal skid pole. (2) Slip the horizontal skid poles through the pair of rubber T-connectors which are already on a pair of vertical skid poles. -
Page 14: Mounting Propellers
Turbo Ace X830-S 3.3 Mounting Propellers There are a total of 4 propellers in your package, all of which are marked with the Xaircraft logo. 2 of the propellers are marked as 1238 counter-clock-wise (CCW) type propellers. The other 2 propellers are marked as 1238R clock-wise (CW) type propellers. Each type of propeller must be mounted on a specified motor on the X830-S. -
Page 15: Installing Heading Arch Rod & Guide Balls
Turbo Ace X830-S 3.4 Installing Heading Arch Rod & Guide Balls Since the X830-S is relatively symetrical it’s often difficult if not impossible for the pilot to see the heading (orientation) of this aircraft from a distance. By installing the heading arch and guide ball, the pilot will be able to differentiate the front of the aircraft from the rest of the aircraft during flight. -
Page 16: Esc Programming And Transmitter Calibration (For Arf)
If this is the first time you are using your existing transmitter with your new Turbo Ace X830-S, it’s important to program all four ESC in the X830-S as well as calibrating your transmitter to the flight controller. - Page 17 Turbo Ace X830-S Transmitter Calibration (2) Now you are ready to calibrate your transmitter to the flight controller. If you have a Futaba or Walkera transmitter you should have skipped the ESC programming steps above because we have already completed that for you. However every transmitter radio needs to be calibrated unless you have purchased a transmitter with your X830-S which we have already done the calibration for you.
-
Page 18: Transmitter & Receiver Compatibility Table (For Arf Only)
Turbo Ace X830-S 4.2 Transmitter & Receiver Compatibility Table (For ARF Only) The X830-S support 35MHz, 40MHz, 72MHz but prefers a 2.4GHz systems. Brand Transmitter Receiver Walkera WK2801PRO RX2801PRO Spektrum AR7100 DSX7 RD721 9XII WFLY FT06-C FRP06 Futaba R149DP... -
Page 19: Receiver, Flight Controller & Autostabilization Setup
Turbo Ace X830-S 4.3 Receiver, Flight Controller & Autostabilization Setup Remove four screws on the dome chassis cover to open the chassis. Remove the film to expose the adhesive on the two way tape on top of the USB linkage circuit borad and the affix the receiver. - Page 20 Setting up the X830-S to ensure a smooth flight with autostabilization To ensure a smooth flight of your Turbo Ace X830-S, please make sure that you setup and fly the X830-S in its autostabilization mode. In order for autostabilization to function, first it is important to make sure the gear switch on your radio is all the way forward for autostabilization to function.
-
Page 21: Transmitter Settings (For Arf Only)
Turbo Ace X830-S when all the switches on your radio are all the way forward. You can use the Xaircraft Center application software to double check the GEAR switch operation you have completed the above setup. Turn on your transmitter radio (Warning never connect a battery to the X830-S unless you are flying, failure to do so will cause serious injury as the X830-S motor may startup if an incorrect value is entered.). -
Page 22: Transmitter Calibration And Esc Programming (A Must Setup For Arf)
Do not skip these step or crash will definitely result) If this is the first time you are using your existing transmitter with a new Turbo Ace X830-S, it’s important program your ESC in the X830-S and calibrate your transmitter to the flight controller. - Page 23 Turbo Ace X830-S down immediately before the 2 consecutive beeping stops. If not, start over because the ESC was not in the programming mode.). It will then play a series of music. You now have completed the high and low ESC end point program for your transmitter.
-
Page 24: Transmitter Flight Control & Pid Adjustments (For Arf Only)
Turbo Ace X830-S (5) Select submenu RC on the left column, click on the bottom tab “Calibrate” and follow instructions to complete the procedure. The whole ccalibration process must be completed with all trims centered except with the throttle trim which must be all the way down by looking at the transmitter LCD screen. -
Page 25: Testing & Operations
Turbo Ace X830-S when it is toggled backward. Before take off, please make sure all the front panel switches on your transmitter are flipped forward and all switches such as the flight mode/hold switches on the side panel are pushed down. Both the NORMAL and ATTITUDE modes, their PID value can be adjusted, though it is not recommended unless you are knowlegeable on these settings. -
Page 26: Actual Flight Test & Training
Turbo Ace X830-S position towards you. At this time, you do not need to move the directional stick (right stick) which is spring loaded and will always return to the middle position when released). Now you can turn your transmitter “ON”. -
Page 27: Battery Tips
Turbo Ace X830-S avoid flying in a small room which deflects air current. Before take off, you may also notice some vibration on the aircraft caused by auto stablization from the deflected air. Once the aircraft lifts away from the ground, it will stablize. - Page 28 Turbo Ace X830-S gyros for camera mount auto compensation so there is no need to purchase separate gyros for your camera mount. How to set your camera TILT (PITCH) auto compensation control for the X830-S-S flight controller, receiver and transmitter Connect receiver’s AUX2 Channel (assuming the AUX2 channel has not been already used...
- Page 29 Turbo Ace X830-S Flight controller servo output for camera servo connections Output 9 for TILT (PITCH) servo connection Output 10 for ROLL servo connection Output 11 for YAW(PAN) servo connection Output 12 for SHUTTER servo connection How to adjust the compensation gain and servo direction reversal in the XAircraft application Remove all 4 propeller for safety, please do not skip this as it may cause serious accident.
- Page 30 By adjusting the PID value will automatically void any no dead on arrival guarantee. Turbo Ace, its distributor and dealers are not responsible for any damage as the consequence. This information is provided for your reference only. The PID control settings can be accessed by the included Xaircraft Center application contained in the included 4gb flash drive.
- Page 31 Turbo Ace X830-S • When aircraft tilts to a certain direction, it will engender a tendency which could be probably reinforced. Notice: Assumption2 is not contradictory to Assumption3. We haven’t built X830-S mathematical modeling, which needs to do the PID Tuning through personal sense.
- Page 32 Turbo Ace X830-S To simplify motor replacement, the X830-S motors can be disconnected at the end of the arms. So Replacing a motor should be relatively easy compaired to other quadcopters. Please remember to reapply Locktite when putting bolts and screws back.
- Page 33 Turbo Ace X830-S (9) If you make any changes always repeat the tie-down flight test in Section 5.1 until you are satisfied that everything is operating properly. 7.2 Replacing ESC (For Repairs Only) When replacing the X830-S ESC, you must follow a specific procedure, otherwise you may risk damage to the ESC wires which may in turn short circuit the ESC and Flight Controller.
- Page 34 Turbo Ace X830-S 9. Thread the remaining ESC wires through the center hole at the center of the chassis bottom. When connecting the black header plug on the Flight Controller’s output port, make sure the brown ESC wire is closest to he edge of the Flight Controller unit. You may damage the Flight Controller and the ESC if the connector is plugged in wrong.
- Page 35 Turbo Ace X830-S 4. Release the motor mount from the end of the extension arm by removing 4 bolts. 5. Remove hub chassis cover (4 screws) then remove flight controller (4 screws). 6. Remove the Skid Rotation Ring from the bottem of the chassis by removing 4 bolts.
