Summary of Contents for Heston everdure FORCE

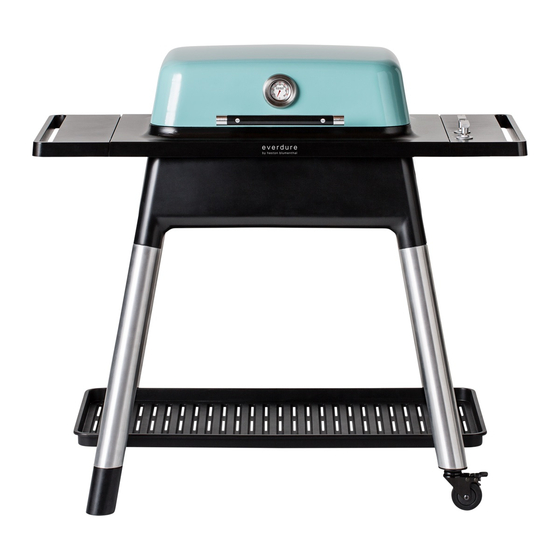

- Page 1 Assembly, Operation & Maintenance Instructions FO R C E FUR NAC E Assembly, operation & maintenance instructions for Everdure by Heston Blumenthal FORCE™ & FURNACE™ gas barbeques and stands everdurebyheston.com...
- Page 2 FORCE FURNACE 2 B U R N E R 3 B U R N E R G A S B A R B E Q U E G A S B A R B E Q U E Power by design. T H E O U T D O O R P E R F O R M A N C E...
-
Page 3: Table Of Contents
Blumenthal outdoor gas barbeques. It is important that you retain these instructions, proof of purchase as well as other important documents about this product for future reference. Due to continual product development, Everdure by Heston Blumenthal reserves the right to alter specifications or appearances without notice. Dispose of packaging responsibly – recycle where... -
Page 4: Important Safety Instructions
Everdure by Heston the barbeque base). Blumenthal in Australia on 1300 HESTON or in New Zealand on (09) 415 6000 before 10. People with flammable clothing such as nylon etc. should keep well away from the operating your appliance. - Page 5 (such as a domestic pool), as these chemicals can cause the appliance materials to deteriorate (and void the warranty). Regular cleaning and covering with an Everdure by Heston Blumenthal barbeque cover can help to reduce this.
-
Page 6: Appliance Details
Gas Type ULPG ULPG from ULPG to NG (or vice versa) must be done by a licensed gas fitter/technician. Refer to AS5601 for piping sizes. Please contact Everdure by Heston Blumenthal for further Burner Pressure 2.75 kPa 1.0 kPa 2.75 kPa 1.0 kPa... -
Page 7: Outdoor Installation Guide
Assembly, Operation & Maintenance Instructions OUTDOOR INSTALLATION GUIDE Both ends open This Appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. This appliance must not be used indoors. -
Page 8: Operating Instructions
Other plates and grills can be purchased to combine with the ones supplied with this barbeque. For a list of accessories go to the Everdure by Heston Blumenthal website. GAS TYPE AND CONSUMPTION NOTE: The enamel coating can be damaged by steel utensils. Damage to plates and grills due to the use of metallic or sharp objects will not be covered under warranty. - Page 9 Roasting is best done using a raised roasting rack, such as the Everdure by Heston 4. Excess fat and meat scraps can be scraped off the inside of the chassis by removing Blumenthal roasting rack HBROASTR, which allows heated air to circulate around the the grill/plate to gain access.
-
Page 10: Ignition Procedure
Assembly, Operation & Maintenance Instructions IGNITION PROCEDURE READ ALL OPERATING INSTRUCTIONS BEFORE LIGHTING THE APPLIANCE OPEN THE HOOD BEFORE LIGHTING MAKE SURE THE GAS CONTROL KNOB IS IN THE ‘OFF’ POSITION AND OPEN CYLINDER VALVE OR CONNECT THE NATURAL GAS SUPPLY (AFTER NG CONVERSION ONLY) MAKE SURE THE GRILL AND PLATE ARE IN THE CORRECT POSITIONS FOR COOKING WARNING: STORE CYLINDER IN A WELL VENTILATED AREA OUT OF REACH OF CHILDREN LIGHTING THE BARBEQUE USING THE BUILT IN... - Page 11 This type of fire is called a flash-back and can cause serious damage to your barbeque and create an unsafe operating condition. To prevent this, regularly inspect and clean the burners. Use an Everdure Heston Blumenthal FORCE or FURNACE...
-
Page 12: Troubleshooting
Also check the alignment of the sparker. If there is no spark, contact Everdure by Heston Blumenthal Service. Injector is blocked Clean injector with a toothbrush. Do not drill out or use wire. Do not remove injector. Contact Everdure by Heston Blumenthal Service. Burner flame is erratic: Burner is blocked Remove cooking surface and check burner for obstruction. -
Page 13: Barbeque Assembly
Assembly, Operation & Maintenance Instructions BARBEQUE AND STAND ASSEMBLY The barbeque and hood come fully assembled, with the gas hose connected to the inlet manifold. To assemble, the stand must first be built (note: for transportation reasons, the barbeque is packaged bolted to the stand top, and should be removed before attempting to assemble the stand). The barbeque is placed back inside the stand after it has been assembled and reattached (it can be removed to cook from a raised bench). - Page 14 Assembly, Operation & Maintenance Instructions STEP 01 Angle the assembly slightly to the back and remove both M6x20mm screws, then do the same at the front, supporting the parts so they don’t drop. Keep all of the fasteners for /Open the hood and fix the hood handle (14) using two M5x30mm screws (F), two Ø5mm later use.
- Page 15 Assembly, Operation & Maintenance Instructions STEP 04 STEP 06 / Take the two bottom shelf supports (06) and fit them onto the cylindrical tabs at the / Turn the stand onto its legs and check that all of the legs are stable. Take the plastic inside of each foot.
- Page 16 Assembly, Operation & Maintenance Instructions STEP 10 STEP 08 / To attach the left hand side servery (15) to the BBQ chassis (01B) support the left hand side servery and align the locating tabs to the keyholes and slide the left hand servery / Push the flat edge of the cylinder hook (12) into the slot of the stand top (above the backwards (approximately 1cm).
-
Page 17: Maintenance
/ Hook the gas cylinder onto the support hook (14) and lean it against the support chain. cleaning. If an Everdure by Heston Blumenthal gas cylinder cover is available, place around the 2.Once cool, apply a small amount of multi-surface polish to the top of the hood. -
Page 18: Parts List: Barbeque Assembly
Assembly, Operation & Maintenance Instructions PARTS LIST: FORCE BARBEQUES Injector Bracket (E2G1) Injector Housing PART NAME Injector (E2G1) Hood E2G1 (Mint) Injector Housing Nut Hood E2G1 (Stone) Fat Tray Bracket (E2G1) Hood E2G1 (Orange) Barbeque Chassis Feet Hood E2G1 (Graphite) Fat Tray Handle Cover Hood E2G1 (Black) Fat Tray... - Page 19 Assembly, Operation & Maintenance Instructions Leg Cap FR Bottom Shelf Support Castor Foot FL Foot RL Leg FR Leg RR Disposable Foil Tray Spacer Bracket Hardware Kit (not shown) Logo Badge OPTIONAL ACCESSORY: COOKING ACCESSORIES Please see everdurebyheston.com.au for a full range of accessories...
- Page 20 Assembly, Operation & Maintenance Instructions PARTS LIST: FURNACE BARBEQUES Injector Bracket (E3G1) Injector Housing PART NAME Injector (E3G1) Hood E3G1 (Orange) Injector Housing Nut Hood E3G1 (Mint) Fat Tray Bracket (E3G1) Hood E3G1 (Stone) Barbeque Chassis Feet Hood E3G1 (Graphite) Fat Tray Handle Cover Hood E3G1 (Black) Fat Tray...
- Page 21 Assembly, Operation & Maintenance Instructions Leg Cap FR Bottom Shelf Support Castor Foot FL Foot RL Central Burner (E3G1) Central Open Grill (E3G1) Leg FR Leg RR Disposable Foil Tray Spacer Bracket Baffle Hardware Kit (not shown) Logo Badge OPTIONAL ACCESSORY: COOKING ACCESSORIES Please see everdurebyheston.com.au for a full range of accessories...
-
Page 22: Warranty
Assembly, Operation & Maintenance Instructions... - Page 23 Assembly, Operation & Maintenance Instructions FORCE 2 B U R N E R G A S B A R B E Q U E E2G1OA E2G1GA E2G1SA E2G1MA E2G1BA FURNACE 3 B U R N E R G A S B A R B E Q U E E3G1SA E3G1OA E3G1MA...
- Page 24 A division of Shriro Australia Pty Ltd Level 7, 67 Albert Avenue Chatswood NSW 2067 In Australia:1300 766 066 In New Zealand: (09) 415 6000 www.everdurebyheston.com IM Ref: FORCE&FURNACE 09/2021/15 FOR OUTDOOR USE ONLY eve rd u re byh e s to n .c o m...
