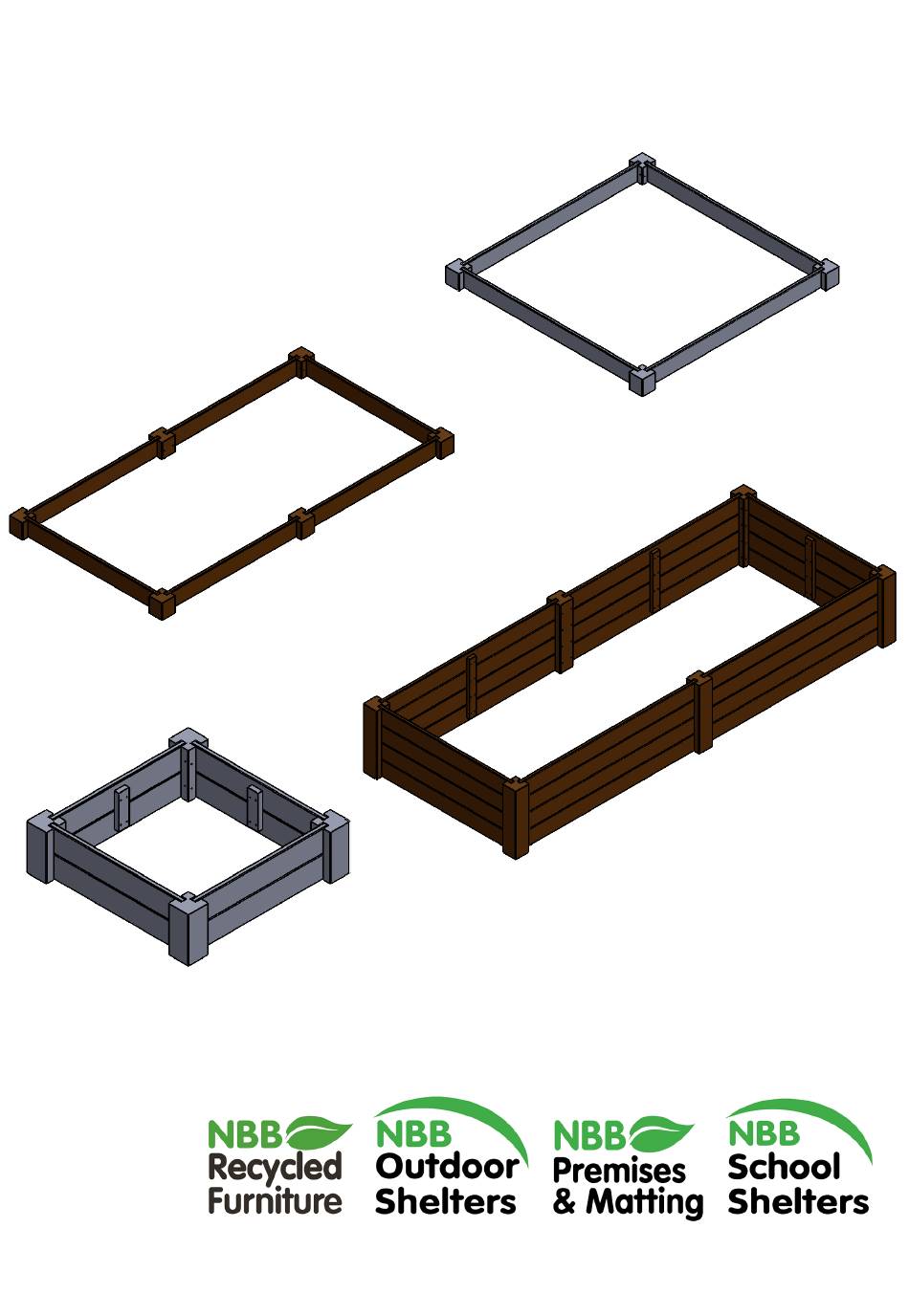

- Page 1 EverYear Elite Raised Beds Assembly Guide 0800 1777 052 AAA-00-000016-RF...
- Page 2 Notes:...
- Page 3 Product Code Description Page Type A RFPY1248 EverYear Elite Raised Bed L730 x D730 x H100mm RFPY1252 EverYear Elite Raised Bed L1030 x D730 x H100mm RFPY1256 EverYear Elite Raised Bed L1330 x D730 x H100mm RFPY1268...
- Page 4 Assembly Guide Overview Continued Product Code Description Page Type D RFPY1257 EverYear Elite Raised Bed L1330 x D730 x H200mm RFPY1258 EverYear Elite Raised Bed L1330 x D730 x H300mm RFPY1259 EverYear Elite Raised Bed L1330 x D730 x H400mm RFPY1261...
- Page 5 Type A Instructions Step The planks will be in pairs typically of two different lengths, please pair up the same length planks and place them either for the front/rear or the side planks. Place the planks within the slots of the corner posts, Front/Rear Plank Corner Post Front/Rear Plank...
- Page 6 Type B Instructions Step The planks will be in pairs typically of two different lengths, please pair up the same length planks and place them either for the front/rear or the side planks. Place the planks within the slots of the corner posts, then along the side place the Planks in the slot in the central post.
- Page 7 Type C Instructions Step The planks will be in pairs typically of two different lengths, please pair up the same length planks and place them either for the front/rear or the side planks. Place the planks/plank assemblies within the slots of the corner posts.
- Page 8 Type D Instructions Step The planks will be in pairs typically of two different lengths, please pair up the same length planks and place them either for the front/rear or the side planks. Place The planks/plank assemblies within the slots of the corner posts, then along the side place the planks/plank assemblies in the slot in the central post.
- Page 9 Step 2 Screw Holes With the planks/plank assemblies placed into the corner posts & the central posts, install the supplied screws into the screw holes on the corner posts & central posts. This completes the assembly of your planter.
- Page 10 Planks which are greater than 600mm long will need to be secured together with support battons, please refer to the following instructions: Step 1 Support Batton Planks Bottom Place the corisponding planks onto a flat clean surface, then place the support batton over the top of the Planks. The support batton should be located 25mm from the bottom and top of the planks.
- Page 11 Notes:...
-
Page 12: Contact Details
THANK YOU FOR PURCHASING THIS PRODUCT CONTACT DETAILS: Email : sales@recycledfurniture.co.uk Web : www.recycledfurniture.co.uk Tel : 0800 1777 052 NBB Recycled Furniture,Unit 5, 145 Sterte Road,Poole, Dorset BH15 2AF All Parts and Fixings checked by: Print Name: Signature...
