Serene Furnishings NEPTUNE Quick Start Manual

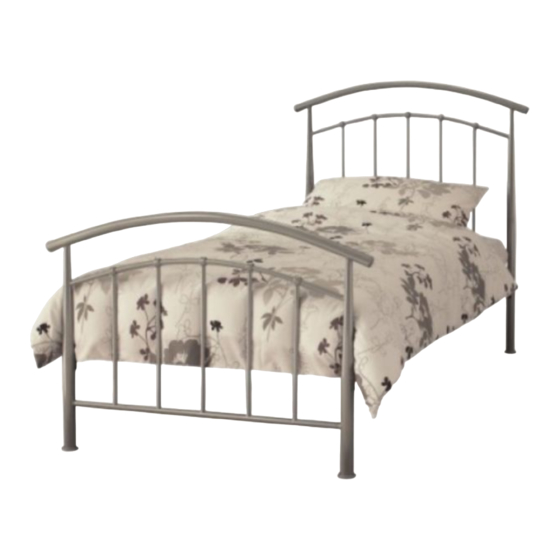

NEPTUNE NEW VERSION 90cm BED
1.Please read through and follow the step-by-step instructions in the leaflet.
2.We recommend that assembly is done in the room intended for use and it is assembled by two people.
3.Please do not discard any packaging before you have checked all the parts and fittings are included.
4.Assemble this product on a flat and clean surface to avoid scratching.
5.Do not tighten any bolts before all the parts have been assembled loosely. Product and/or fittings might be damaged by over
tightening screws or bolts. Beware of cross -threading the screws or nuts during assembly.
6.Keep fittings away from childrens' reach.

COMPONENT PARTS

[A]-Headend

FITTINGS

[1] - M6x20mm bolts x 8pcs
[4] - Washers x 8 pcs
STEP 1: Attach the Siderails(C) to the Headend(A) and
Footend(B).
4 1
A
C
STEP 3 : Insert the Sprung Slat(E) into the Plastic Holders(F) as shown.
Gently tap the Plastic Holders into the holes drilled on the
Siderails.
NEPTUNE 3'0 BED
[B]-Footend
[C]- Siderail x 2pcs
[D]- Across Bar x 1pc
[E]- Wooden Slat x 12pcs
[2] - M6x35mm bolts x 2pcs
[5] - M6 Allen Key x 1pc

SAFETY WARNING:

Do not stand on the bedbase without a mattress on it.
[3] - M6 Insert Nuts x 2pcs
STEP 2 : Attach the Across Bar(D) to the
A
B
Rubber Mallet
(Not Provided)
[F]- Side Plastic Holder x 24pcs
Siderails(C).
2
D
3
F
E
C
C
