KC HH-TC3040LP Operation Instruction Manual

Hydraulic-pressure hot stamping machine
Hide thumbs

Advertisement

Quick Links

Download this manual

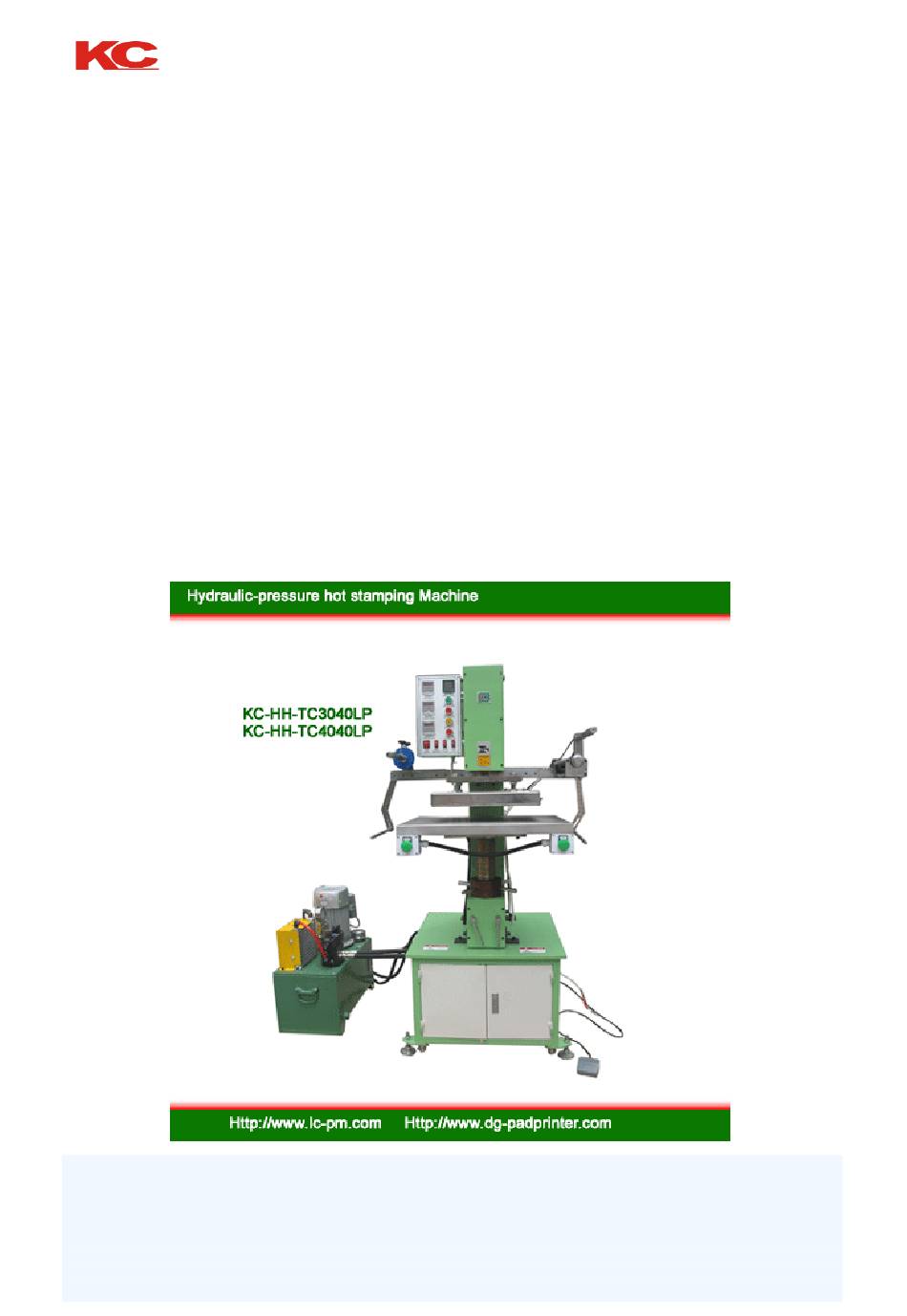

Hydraulic-pressure
hot stamping machine
高宝印刷机械科技有限公司
KC Printing Machine (group) limited
Website: Http://www.dg-padprinter.com
Online contact
Skype: yingsuhuakelven
Email:cjscbsf@126.com
HH-TC3040LP
HH-TC4040LP
HH-TC4050LPT
HH-TC4060LPT
Operation Instruction
28-1
QQ: 726986799
13592766499@VIP.163.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the HH-TC3040LP and is the answer not in the manual?

Questions and answers

Related Manuals for KC HH-TC3040LP

Summary of Contents for KC HH-TC3040LP

  • Page 1 Hydraulic-pressure hot stamping machine HH-TC3040LP HH-TC4040LP HH-TC4050LPT HH-TC4060LPT Operation Instruction 高宝印刷机械科技有限公司 28-1 KC Printing Machine (group) limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email:cjscbsf@126.com 13592766499@VIP.163.com...
  • Page 2 Company Profile KC Printing Machine specializes in manufacturing of hot stamping machines. For many years by advanced technology from abroad and practical experiences of our country, our company has successfully developed the products with unique performance and new structure -- KC series gilding and impressing machine, manual/electric/pneumatic rolling...
  • Page 3 Feeding way 温度范围 Motor drive Motor drive Motor drive Motor drive 0-299oC 0-299oC 0-299oC 0-299oC temperature 净重 Net weight 700kg 704kg 706kg 710kg 高宝印刷机械科技有限公司 28-3 KC Printing Machine (group) limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email:cjscbsf@126.com 13592766499@VIP.163.com...

  • Page 4: Environment Requirements

    2. The place where the water may be drop or splashed or there is electricity leakage. 3. Humid place 4. Place with much dust. 5. Place in intense vibration. 6. Unstable or not flat place. 2.Power supply 高宝印刷机械科技有限公司 28-4 KC Printing Machine (group) limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email:cjscbsf@126.com 13592766499@VIP.163.com...

  • Page 5: Hydraulic System

    8. Please keep the magnet away from the control box. 9. Please keep combustible or explosive gas or liquid away from the machine. 10. Please never use machine in combustible or explosive place. 高宝印刷机械科技有限公司 28-5 KC Printing Machine (group) limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email:cjscbsf@126.com...
  • Page 6 2、卷箔调时： 控制卷箔马 高宝印刷机械科技有限公司 28-6 KC Printing Machine (group) limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email:cjscbsf@126.com 13592766499@VIP.163.com...
  • Page 7 Run this machine with full automatically mode. 四、烫印温度参考：Stamping temperature 软 PVC( Soft PVC)：65-80℃ 纸张(Paper)：85-120℃ 软塑料(Soft plastics)：75-85℃ 硬塑料(Rigid plastics)：100-135℃ 合成革仿皮(Synthetic leather)：160-180℃ 人造革、皮革(Leather) ：120-150℃ 以上温度为操作者操作机器时初始设定的温度， 在测试过程当中，需要根据烫印产品的质量进行微调， 如出现烫 印不牢或者烫印箔剥落现象，可适当调高温度。 同时选择最适合的烫金纸时保证最佳牢度的关键环节。 高宝印刷机械科技有限公司 28-7 KC Printing Machine (group) limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email:cjscbsf@126.com 13592766499@VIP.163.com...
  • Page 8 3-4mm with hands when stamping plate contact with working table. The pressure too small, rotate the handle and make screw mandrel rise up; the pressure too big, rotate the handle and make screw mandrel down. 4、电化铝的安装与调整（见下图）Install foil 高宝印刷机械科技有限公司 28-8 KC Printing Machine (group) limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email:cjscbsf@126.com...
  • Page 9 六、操作程序：Operation process 1、将液压站管接入设备油管上。 Connecting the Hydraulic station with this machine. 2、将设备电源插入有保护接地的电源上（必须接地可靠） 。 Connecting Power supply which protective grounding connection 高宝印刷机械科技有限公司 28-9 KC Printing Machine (group) limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email:cjscbsf@126.com 13592766499@VIP.163.com...
  • Page 10 Loose the fixation the screw, stamping plate will be taken off 加热板 Heater Plate 高温胶纸 High temperature emulsion paper 烫板 烫金模板 Stamping Plate Stamping Edition 4、安装烫金版 高宝印刷机械科技有限公司 28-10 KC Printing Machine (group) limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email:cjscbsf@126.com 13592766499@VIP.163.com...
  • Page 11 10mm. 6、上述一切工作就绪后，就可操作烫印了，将工件 平铺工作台，按工作按钮，即可完成烫印一次。 Put object on the fixture and press “ press-testing” to have a stamping process. 7、先进行试印，若设置参数不理想可重新设置。 高宝印刷机械科技有限公司 28-11 KC Printing Machine (group) limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email:cjscbsf@126.com 13592766499@VIP.163.com...
  • Page 12 Plastics. 对于一些塑料注塑产品， 可以用机床车削加工一 Fixture 些夹具，夹具用工作台上面的治具进行固定； 对于纸 张， 要在工作台的边缘粘贴一些定位片，确保纸张在 每一次烫印过程中不走位。对于比较轻薄的纸张，我们 也可以为您定做带有吸风工作台的平面烫金机，这样纸 张烫印过程中会被紧紧吸附在工作台表面。 For some Injection objects, Wooden, We suggest 高宝印刷机械科技有限公司 28-12 KC Printing Machine (group) limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email:cjscbsf@126.com 13592766499@VIP.163.com...
  • Page 13 5、 工作过程中，不要将身体某部位倾向烫印模块。 Please do not touch stamping head because of high temperature while working. 烫板的温度很高，所以在操作机器过程当中，请避免身体部位触及烫板， 以免被烫伤 6、 。 若操作者离开工作现场，必须关掉气源、电源 高宝印刷机械科技有限公司 28-13 KC Printing Machine (group) limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email:cjscbsf@126.com 13592766499@VIP.163.com...
  • Page 14 Knob switch 熔断器 RT14-20 Fuse 温控元件 CNG-5131P Temperature element 按钮 LAY7-11BN(G) Push button 时间继电器 DH48S-2Z/220V Time relay 继电器 JQX-13F/220V Relay 行程开关 AZ8108 Travel switch 高宝印刷机械科技有限公司 28-14 KC Printing Machine (group) limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email:cjscbsf@126.com 13592766499@VIP.163.com...
  • Page 15 电磁阀 4V310- Solenoid Valve 卷箔电机 ○ M 60W/220V Foil Motor 热电偶 ○ K/2M Thermoelectric 九、电气原理图（见附图一）Electrical diagram 高宝印刷机械科技有限公司 28-15 KC Printing Machine (group) limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email:cjscbsf@126.com 13592766499@VIP.163.com...
  • Page 16 高宝印刷机械科技有限公司 28-16 KC Printing Machine (group) limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email:cjscbsf@126.com 13592766499@VIP.163.com...
  • Page 17 电磁阀出气 口 电磁阀出气 Vent port of 口 compress air Vent port of compress air 电磁线圈 电磁阀进气口 Solenoid Coil Entering of compress air 高宝印刷机械科技有限公司 28-17 KC Printing Machine (group) limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email:cjscbsf@126.com 13592766499@VIP.163.com...
  • Page 18 十、气压传动系统图（见附图三） 高宝印刷机械科技有限公司 28-18 KC Printing Machine (group) limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email:cjscbsf@126.com 13592766499@VIP.163.com...
  • Page 19 Switching of foil motor B: Please check time relay if lock at the Motor running. C: Please check the small relay if keep well (JQX-13F/220V) 高宝印刷机械科技有限公司 28-19 KC Printing Machine (group) limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email:cjscbsf@126.com...
  • Page 20 Operation instruction 1、操作说明 仪表面板上有四只键分别为： There are four keys on panel Flow controlling key 键：流程控制键 Function shift Key 键：设定位移位键 键：设立数字递增键 Number increase 键：设立-数字递减键 Number descend 高宝印刷机械科技有限公司 28-20 KC Printing Machine (group) limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email:cjscbsf@126.com 13592766499@VIP.163.com...
  • Page 21 仪表参数修改，设定时的人机对话均通过四只按键来实现的，当在第一次使用本产品时，请详细阅读上面的操作流 高宝印刷机械科技有限公司 28-21 KC Printing Machine (group) limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email:cjscbsf@126.com 13592766499@VIP.163.com...
  • Page 22 以下字符每按一次 SET 键后依次出现，根据不同功能有些字符可能在你所选用的仪表中不存在。 （见下表） Press one time : “set”, below character will be display in turn. Some character maybe do not exist 4、使用注意事项：Note ①把仪表插入仪表盘开孔中，开孔公差应适中，装上安装板螺杆，适度旋紧，外壳带自锁的仪表插入开孔中即可。 高宝印刷机械科技有限公司 28-22 KC Printing Machine (group) limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email:cjscbsf@126.com...
  • Page 23 量先用屏蔽线。 ⑧为防止仪器损坏或失效，用额定电供电。 ⑨断电后方可清洁仪器，清除显示器上的污渍请用软布或棉纸；显示器易被划伤；禁止用硬物擦拭或触及。 ⑩禁止用螺丝刀或圆珠笔尖硬物体操作面板按键，否则会损坏或划伤按键。 5、简易问题维修按仪表规格接上相应的电源线，传感器线及输出控制线以后，上电开机。仪表 PV 窗即显示测量值， SV 窗即显示设定值，同时入自动温度控制状态。 ①若认为仪表指示失常，请检查传感器及接线。 Please check the sensor and connecting wire when finding the meter display wrong. 高宝印刷机械科技有限公司 28-23 KC Printing Machine (group) limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email:cjscbsf@126.com 13592766499@VIP.163.com...
  • Page 24 Differential 可克服超调. time 比例周期 1-99 秒 设定输出开关周期不允许设定为 20(2)维电器输出时 零 20,其它输出时 2 比例周期 确定自整定执行/关闭 00:自整定停止 01:自整定开始 比例周期 确定参数修正允许/不允许 00:不锁 01:只能修改主控设 定值 02:所有参数设定 ②仪表面板各种功能显示，输出指示正常，而仪表失控时，请检查输出控制线是否正确，外部负载有否短路、断路、 错线等导致表内部元件损坏，必要时可以停电打开仪表检查，输出端之铜箔，输出保护电阻有否烧焦，一般较容易修复。 高宝印刷机械科技有限公司 28-24 KC Printing Machine (group) limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email:cjscbsf@126.com 13592766499@VIP.163.com...
  • Page 25 Press two buttons together will operate this machine 十三.Name and Description of Major Machine Structure 调整工作台的左右位置 Adjust the left-right position of working table 高宝印刷机械科技有限公司 28-25 KC Printing Machine (group) limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email:cjscbsf@126.com 13592766499@VIP.163.com...
  • Page 26 Workbench Screw locking hand shank 工作台板 螺杆手柄 Foil Guide rod Chassis 导纸轴 底座。 Foil feeding roller 送纸轴 Position switch 行程开关 Control panel 控制面板 高宝印刷机械科技有限公司 28-26 KC Printing Machine (group) limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email:cjscbsf@126.com 13592766499@VIP.163.com...

  • Page 27: Instructions For Maintenance

     Please keep it earthed reliably First of all, thanks for your great support for KC Printing Machine before operation so as to guarantee the operator’s safety!!! The power cord of this machine shall be power cable of 3*4 mm 烫金机的功率较大，请使用...
  • Page 28 2. Inspect whether the bearing of the machine is used for long and abrasion occurs. Replace it if it is necessary. 高宝印刷机械科技有限公司 28-28 KC Printing Machine (group) limited Website: Http://www.dg-padprinter.com Online contact Skype: yingsuhuakelven QQ: 726986799 Email:cjscbsf@126.com...
