Ventilation Control Products Sweden AB
Carbon Monoxide (CO) Gas Detectors
Features
• Ranges 0-100 ppm , 0-300 ppm and 0-1000 ppm
• Output
• RS485, Modbus RTU protocol
• Power supply 24 Vdc (11-30 Vdc)

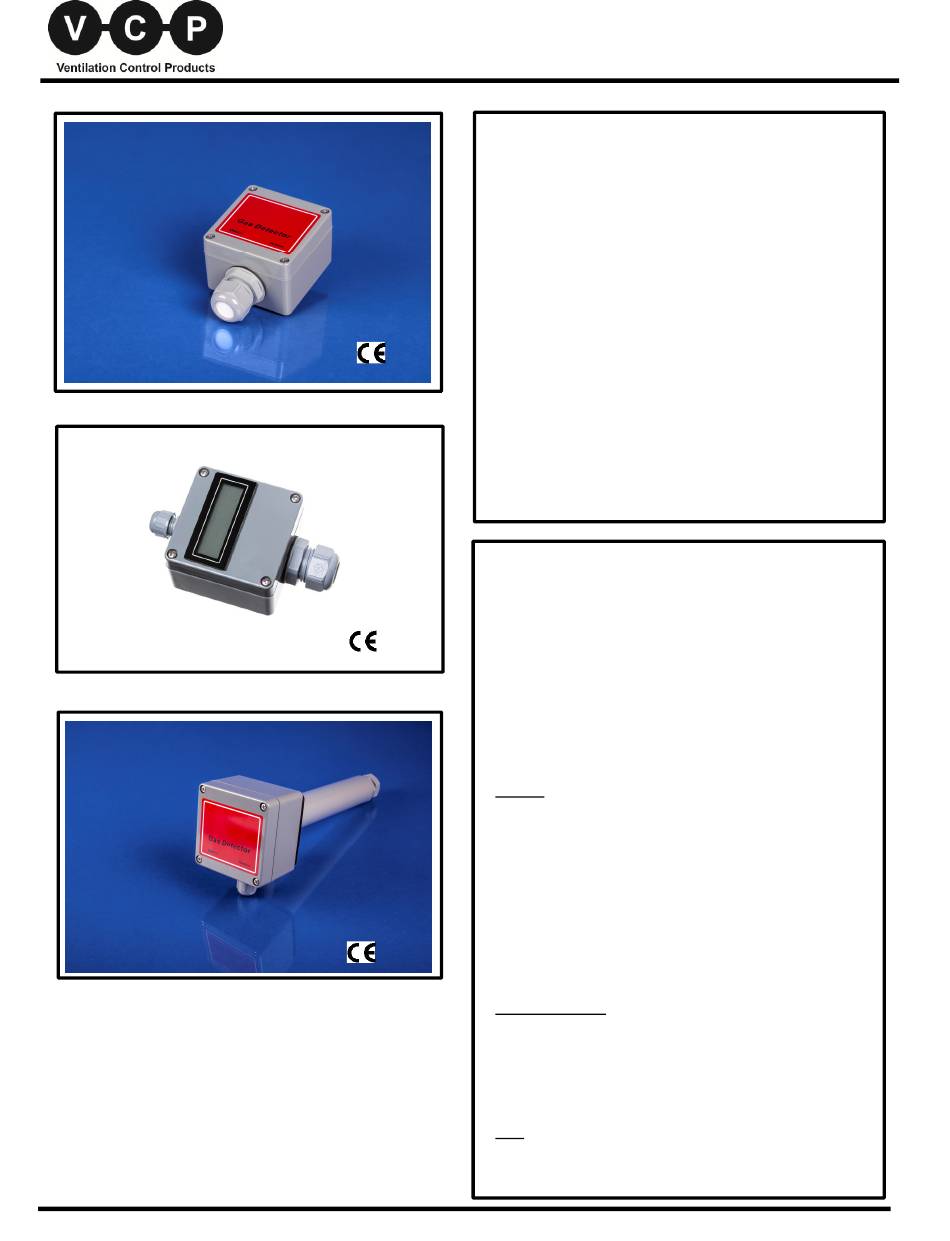

RCO 100
• Electrochemical sensor
• Accuracy ± 5 ppm
• Response time 30 seconds
• IP65 protection for enclosure
• Microporous PTFE dust filter ensure
• Sensor life time minimum 6 years
Ordering
_______________________________________________
Type no.
RCO 100 LCD
_______________________________________________
RCO 100
RCO 300
RCO 1000
Options
LCD
24VAC
DM
RSP3
RCO 100 DM
RSP10
Ordering example
Carbon Monoxide (CO) detector with range 0-100 ppm and
with LCD display and
with integrated 24 Vac power supply module
is with type number RCO 100 LCD 24VAC.
Note
When the option Integrated 24 Vac power supply module
(24VAC) is supplied, the power supply can be 24 Vac or 24 Vdc
-
Phone: +46-31-811666
RCO-series
2 x 4-20 mA or 0-10 Vdc, user settable
option with 24 Vac
IP65 also for the sensor
Description
Carbon Monoxide (CO) gas detector
range 0-100 ppm
Carbon Monoxide (CO) gas detector
range 0-300 ppm
Carbon Monoxide (CO) gas detector
range 0-1000 ppm
LCD display
Integrated 24 Vac power supply module
Duct mounting type
Remote sensor probe, 3 meters cable
Remote sensor probe , 10 meters cable
-
E-mail: info@vcp.se
April 2020
-
Web: www.vcp.se
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for VCP RCO Series
- Page 1 RCO 100 LCD 24VAC. Note When the option Integrated 24 Vac power supply module (24VAC) is supplied, the power supply can be 24 Vac or 24 Vdc Ventilation Control Products Sweden AB Phone: +46-31-811666 E-mail: info@vcp.se Web: www.vcp.se...
-
Page 2: Technical Data
Operating temperature 0 to +50 °C, Display dimensions 72x36 mm Number of digits 3.5 7-segment Character height 14 mm Other features Backlight CE marking according to 2014/30/EU and EN61326-1 requirements Ventilation Control Products Sweden AB Phone: +46-31-811666 E-mail: info@vcp.se Web: www.vcp.se... - Page 3 For personal safety control the detectors are installed in the breathing zone (at the height of the head of people or animals). Recommended sensor position is vertical, pointing downwards. See Installation guidelines section on the next page for more information. Ventilation Control Products Sweden AB Phone: +46-31-811666 E-mail: info@vcp.se Web: www.vcp.se...
- Page 4 Place the lid back and fix it with the screws. The device is ready to use. It is recommended to keep the device on constantly, except for periods of maintenance and calibration, replacement etc. Ventilation Control Products Sweden AB Phone: +46-31-811666 E-mail: info@vcp.se Web: www.vcp.se...
- Page 5 The recommended orientation of sensor probe is vertical with the sensor tip pointing downwards. This prevents possible accumulation of condensed water on the sensor protection filter. The horizontal orientation is also suitable. Avoid upward position of the sensor tip. Ventilation Control Products Sweden AB Phone: +46-31-811666 E-mail: info@vcp.se Web: www.vcp.se...
- Page 6 2. Connect the J3 jumper 3. Turn on the device 4. De-energize the device 5. Disconnect the J3 jumper 6. Turn on the device RS485 communication interface See next pages Ventilation Control Products Sweden AB Phone: +46-31-811666 E-mail: info@vcp.se Web: www.vcp.se...
-
Page 7: Electrical Connection
RCO-series Carbon Monoxide (CO) Gas Detectors April 2020 Electrical connection Note: For LCD version only OUT1 is available Ventilation Control Products Sweden AB Phone: +46-31-811666 E-mail: info@vcp.se Web: www.vcp.se... - Page 8 Dimensions in mm Duct mount version We reserve the right to make changes in our products without any notice which may effect the accuracy of the information contained in this leaflet Ventilation Control Products Sweden AB Phone: +46-31-811666 E-mail: info@vcp.se Web: www.vcp.se...
- Page 9 When addressing by ID 0 the device shall be the only Modbus instrument in the network. The device will not respond to Master command when addressed by ID 0. *** - This value is dynamic and not kept in EEPROM after restart Ventilation Control Products Sweden AB Phone: +46-31-811666 E-mail: info@vcp.se Web: www.vcp.se...
- Page 10 *** - This value is dynamic and not kept in EEPROM after restart We reserve the right to make changes in our products without any notice which may effect the accuracy of the information contained in this leaflet Ventilation Control Products Sweden AB Phone: +46-31-811666 E-mail: info@vcp.se Web: www.vcp.se...
