Summary of Contents for NEX ROBOTICS LMD18200

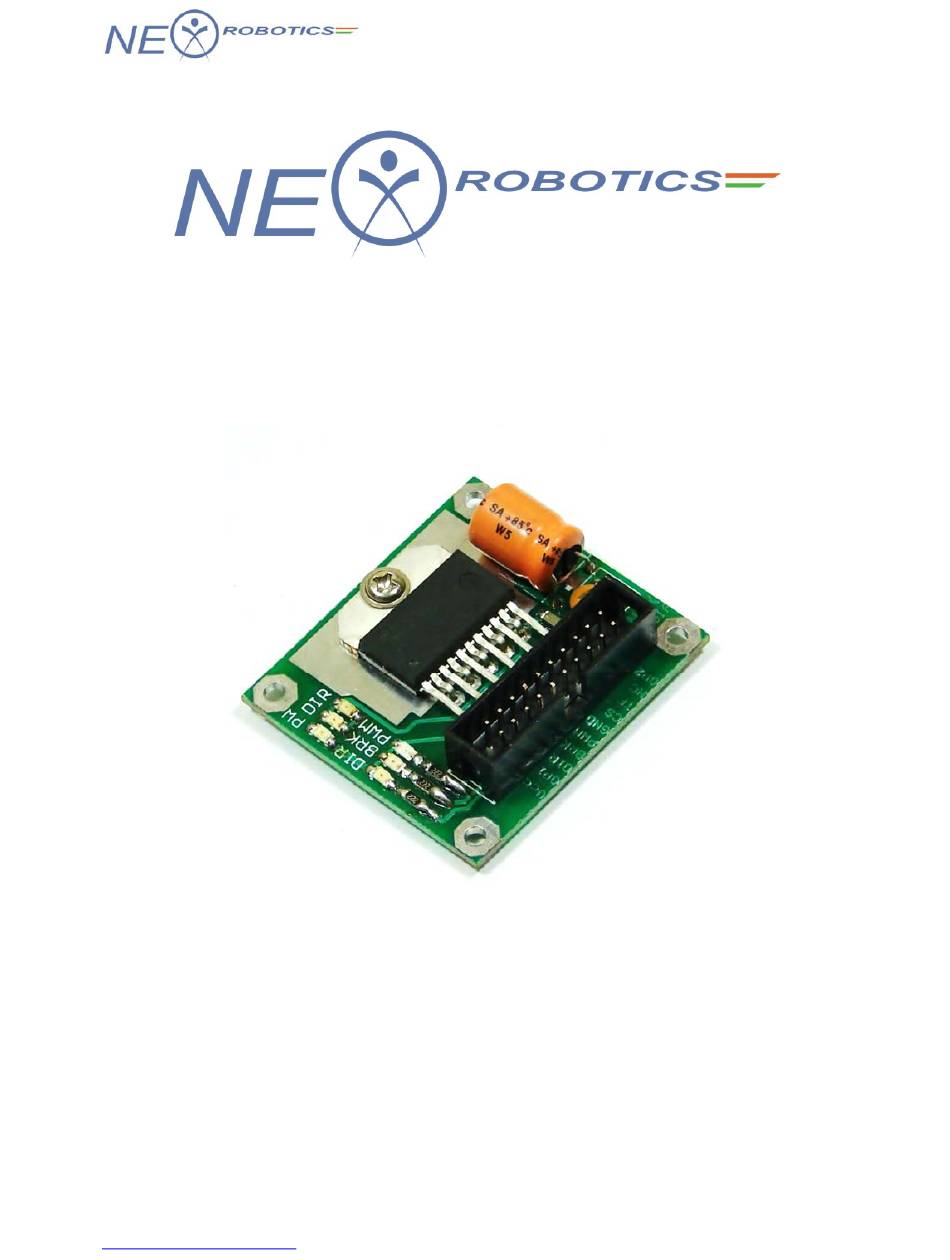

- Page 1 LMD18200 55V, 3A Motor Driver LMD18200 55V, 3A Motor Driver May 2010 www.nex-robotics.com...
- Page 2 LMD18200 55V, 3A Motor Driver Introduction The LMD18200 is a 55V, 3A Motor Driver designed for motion control applications. It can handle peak current up to 6A. It also gives out current sensing output. It gives out thermal warning signal at 145 C and shuts down the device at 170 C.
- Page 3 Table 2: Logic Input Connector Pin Functionality Current sensing LMD18200 gives out 337uA per Amp. current. Motor driver board has 2.2K ohm resistor connected between current sensing output and ground. Because of which LMD 18200 will give 0.7414V per Amp. (2.2K * 337uA).
- Page 4 LMD18200 55V, 3A Motor Driver BRAKE Active Output Drivers Source 1, Sink2 Sink 1, Source 2 Source1, Source 2 Source1, Source 2 Sink1, Sink2 None Table 3: Logic Truth Table www.nex-robotics.com...
- Page 5 The contents of this manual are subject to change without notice. All efforts have been made to ensure the accuracy of contents in this manual. However, should any errors be detected, NEX Robotics welcomes your corrections. You can send us your queries / suggestions at info@nex-robotics.com...
