Cigar Humidor Instruction Manual

Model ： ZS-A86X

Table of Contents

Need help?

Do you have a question about the ZS-A86X and is the answer not in the manual?

Questions and answers

Summary of Contents for Josoo Electric Appliance ZS-A86X

Page 1 Cigar Humidor Instruction Manual Model ： ZS-A86X...
Page 2: Table Of Contents
Catalog Important Safety Information.........1 ......2 Humidor Cabinet Structure Diagram Installation Instructions........3 .....5 Operation and Temperature Settings Maintain And Care..........7 Troubleshooting..........8 Technical Parameter...........10 Warranty.............11...
Page 3: Important Safety Information
Important Safety Information Use the following safety principles to avoid damage to the humidor due to the working environment. Please read carefully before using the product and retain all operating instructions for future reference. Do not allow children to climb ， stand or hang on the shelves in the cooler.
Page 4: Humidor Cabinet Structure Diagram

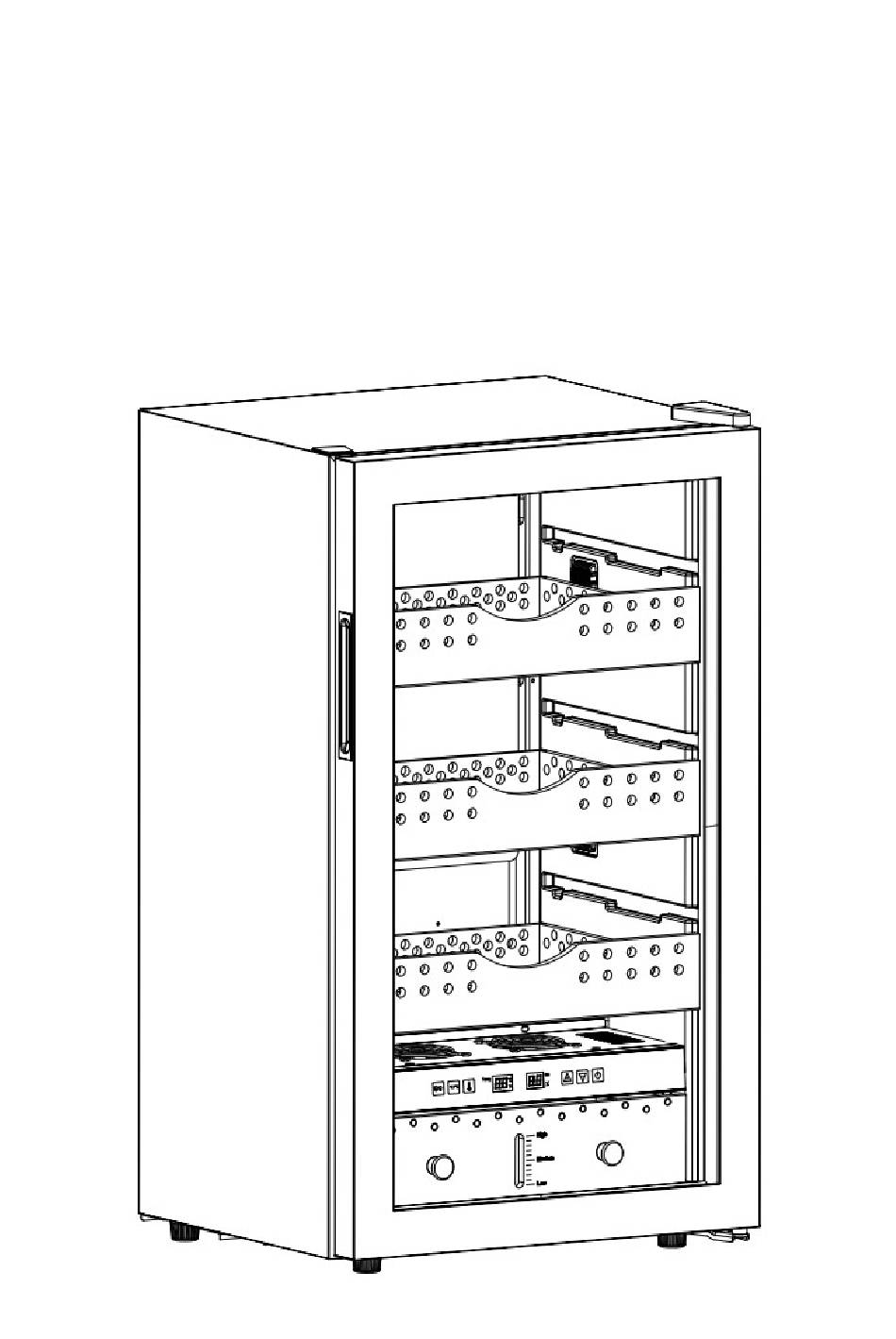

Humidor Cabinet Structure Diagram (1)Box body (2)Glass door (3)Handle (4)Shelf (5)Control panel (6)water tank (7) Adjustable leg...
Page 5: Installation Instructions
Installation instructions Note: Put the humidor in the location you want to install, this location should be: ① Away from heat source, good air mobility; ② Not damp ； ③ On a stable surface; 1 ． The humidor that has been transported needs to be left for 2 to 3 hours before it is connected to the power supply for normal operation.
Page 6 Change the door opening direction This product can change the door opening direction according to the actual installation needs. The door hinge of the product is on the right side. If you need to change the door direction, please follow the steps below. 1)Grasp the upper door hinge cover, lift lightly, and remove the upper door hinge cover ①...
Page 7: Operation And Temperature Settings
Operation and Temperature Settings 1. Plug in the power cord and turn on the power. The rated power supply used by the cigar cabinet is 220-240V/50HZ, the power socket used is a standard 12A-16A.220V socket with a ground wire, and the socket should also be equipped with a fuse and a leakage protection switch.
Page 8 temperature display nixie tube flashes, indicating that the temperature can be changed by pressing the temperature setting up or down key to change the temperature setting value;Press it again, the humidity display nixie tube flashes (the temperature display nixie tube stops flashing), indicating that the humidity can be changed by pressing the humidity setting up or down key to change the humidity setting value;...
Page 9: Maintain And Care
visible when it is not disassembled), so as to ensure that the refrigeration system has been operating efficiently and in a good cooling state. When the machine runs for a period of time, the machine automatically enters the defrosting state, at this time the compressor of the humidor stops running, and the cooling fan in the box runs continuously.
Page 10: Troubleshooting
the humidor to prevent deterioration, or other corresponding measures should be taken. Decommissioning of the humidor If you decide to take the humidor out of service for a period of time, please follow these steps: 1.First turn off the power and unplug the power plug; 2.Remove all items in the humidor and clean;...
Page 11 the glass door of the humidor. This is a normal phenomenon. When condensation occurs, you can wipe the condensation off with a soft cloth. Condensation will disappear naturally when it is reduced, and will not affect the performance of the humidor.
Page 12: Technical Parameter
Technical parameter Model ZS-A86X Temperature Range 16-22 ℃ Humidity 60%-80% Net Volume Dimensions (W*D*H) 480 ⅹ 430 ⅹ 860 mm Rated voltage 220-240V~/50HZ Input power Net Weight 30.5KG Electrical schematic...
Page 13: Warranty
Warranty This product manufactured by Zhongshan Josoo Electric Appliance Co., Ltd The warranty does not apply to damage resulting from abuse, accident, natural disaster, loss of electrical power to the product for any reason, alteration, outdoor use, improper installation, and improper operation, repair or service of the product by...
