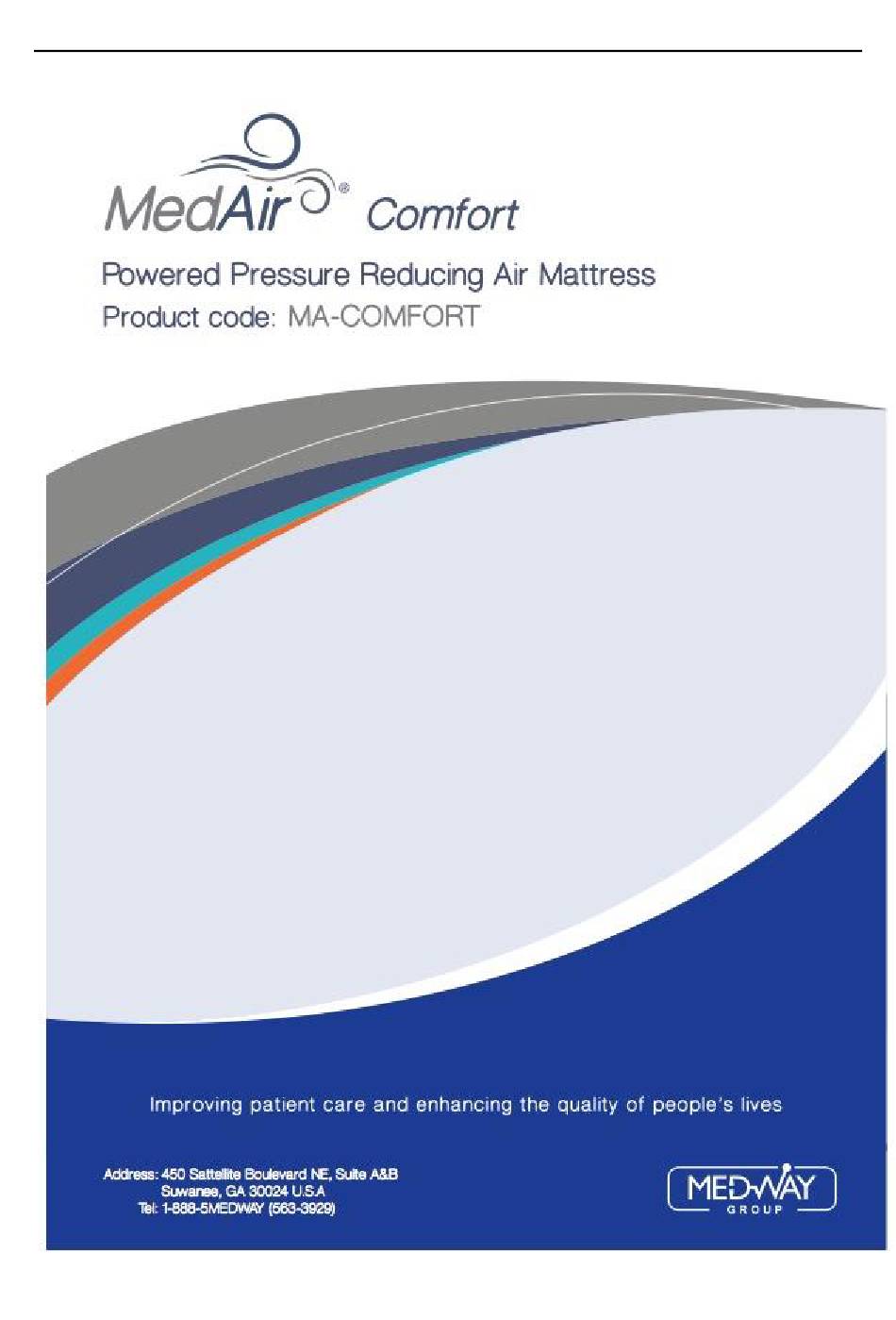

MEDAIR MA-COMFORT Instructions Manual

Powered pressure reducing air mattress

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Table of Contents

Need help?

Do you have a question about the MA-COMFORT and is the answer not in the manual?

Questions and answers

Summary of Contents for MEDAIR MA-COMFORT

Page 2 INTRODUCTION Congratulations on the purchase of your MedAir® Comfort Air Mattress. The durable, high-quality material used in the manufacturing of this product will ensure that you experience long-lasting and uninterrupted performance. Intended Use This product is intended to help reduce the incidence of pressure ulcers while optimizing patient comfort.
Page 3: Table Of Contents
Table of Contents Table of Contents ..................3 Symbol definition ..................4 Products Feature ..................6 Safety Precautions ..................7 Confirm before set-up ................11 Parts Name .................... 12 Set-Up instructions ................. 13 Maintenance ..................16 Storage....................17 Troubleshooting ..................19 Warranty and after-sales service ............
Page 4: Symbol Definition
Symbol definition CE certification and notified body number Product production batch Product serial number Manufacturer information II type equipment symbol Mandatory reading of instructions BF device symbol Protected against solid foreign objects of 12.5mm and greater; protection against vertically falling water drops.
Page 5 When the end user intends to discard this product, the product must be sent to the appropriate facility for recycling and recycling. Environment humidity for operation or storage Environment temperature for operation or storage Atmospheric pressure for operation or storage Maximum weight of the mattress load.
Page 6: Products Feature
Product Features 1. Two-channel alternating mode The MedAir® Comfort mattress will alternate about every 6 minutes; This action supports the body while inflating and relaxes the body while deflating. This action is intended to reduce stress on the patient. 2. Tube structure...
Page 7: Safety Precautions
Safety Precautions In order to use this product safely, please read this book carefully and understand it, please be sure to follow the instructions in this manual. In order to avoid injury when using this product, you must know in advance the factors that may be dangerous. However, it is difficult to predict all potential dangers.
Page 8 Warning 3 When installing the mattress, place the airway tube feed at the FOOT END OF BED. DO NOT place tube feed in any other position as patient injury may occur. Warning 4 When using the mattress, be sure to secure the guardrail to the bed.
Page 9 Warning 7 Smoking is not allowed on the mattress and may cause a fire. Warning 8 Please be aware not to bend or kink the air tube. Do not place tube under mattress. If tube is damaged or kinked air flow will not inflate the mattress Warning 9 Please do not use two or more people together.
Page 10 Warning 12 Be sure to plug the air pump's power plug into a standard wall power outlet (120v). DO NOT insert or unplug the power plug with wet hands as this may result in electric shock. Warning 13 If the mattress and air pump will not be used for a long time or the air pump needs to be cleaned, unplug the power cord from the outlet.
Page 11: Confirm Before Set-Up
Confirm before set-up Before set-up, please confirm whether the accessories are complete and whether you understand the contents and precautions of the manual. Packing list confirmation ① Air pump for air mattress……………………………x 1 ② User Manual………………………………………….x 1 ③ Air mattress (Ball type or Tube type)……………….x 1...
Page 12: Parts Name
Parts Name...
Page 13: Set-Up Instructions
Set-Up instructions Step1: Remove and unfold the MedAir® Comfort Air Mattress from box. Place the air mattress on existing bed mattress with the air tube positioned at the foot end of the bed, right hand side. Secure to bed mattress by folding the extra material under the bed mattress. This should be done at the top and bottom of the air mattress.
Page 14 Step3: Make sure the red CPR valve (top right side of air mattress) is securely closed. Connect the Air Supply Hose from the air mattress securely to the pump. Place sheet over mattress and fold under to secure. See figure 3 Step4: Plug the Electrical Supply Cable from the pump into a standard electrical outlet and turn the green power switch to the on position.
Page 15 Step5: ⚫ Adjust pressure based on patient's comfort by turning pressure dial ⚫ Air pump output pressure table: 5(max) 20mmHg 30mmHg 50mmHg 70mmHg 100mmHg 120-140mmHg Warning Since the mattress is alternated every 6 minutes, it takes about 12 minutes for the ⚫...
Page 16: Maintenance
Maintenance Warning：DO NOT open the pump for maintenance. If pump is not working contact MedWay Group for service. Mattress cleaning ⚫ To clean mattress use a damp cloth with a neutral detergent. ⚫ Let it dry naturally Warning ⚫ DO NOT Dry Clean: doing so will damage the mattress ⚫...
Page 17: Storage
Storage If you are no longer using this product, please follow the steps below to store. ⚫ 1. Turn off the power switch and unplug the power cord. ⚫ 2. Unplug the air tube ⚫ 3. Clean air pump and mattress (see previous instructions for cleaning) ⚫...
Page 18 Warning ⚫ When the equipment storage temperature is minimum or maximum, You should warm or cool the temperature for 1 hour to operate temperature for use.
Page 19: Troubleshooting
Troubleshooting Trouble Possible reason Does not start, power The power plug is not plugged into the power outlet. The power light indicator not lit. supply does not work. Contact MedWay Group for service. Valve does not work. Contact MedWay Group for service. Air duct off.
Page 20: Warranty And After-Sales Service
Warranty and after-sales service (Please read carefully) Service life and Shelf life ⚫ EXPECTED SERVICE LIFE OF the pump is 2 years ⚫ EXPECTED SERVICE LIFE OF the mattress is 2 years ⚫ Shelf life of the PVC mattress more than 10 years in the required environment.
Page 21 About the repair request First, look at the possible causes (see page 14). If you are still having trouble, turn off the product and contact MedWay Group. 1.888.563.3929. During the warranty period: ⚫ In the event of a malfunction in a normal use condition, MedWay Group. Will repair according to the provisions of the warranty.
Page 22: Specification List
Specifications Mattress Dimensions: W36xL78xH4.5” Weight: 11.69Lbs Material: Nylon PVC coated cloth Pump Dimensions: L8.66xW4.33xH3.27” Weight: 1.98Lbs Material: ABS plastic Power: 110Vac 60Hz 12VA Power cord length: 6.6 Ft Fuse: Time-lag type 500mA 250V Size 0.14x0.39” EMC Declaration EMC information...
Page 23 Guidance and manufacturer’s declaration-electromagnetic emissions The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that they are used in such an environment. Emissions test Compliance Electromagnetic environment - guidance RF emissions Group 1 The models device use RF energy only for their internal...
Page 24 Guidance and Declaration-electromagnetic immunity The models device intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that they are used in such an environment. Immunity IEC 60601 Compliance Electromagnetic environment test test level level...
Page 25 equation applicable to the frequency of the transmitter. Recommended separation distance d=[3,5/V1]×P1/2 Radiated RF 10 V/m 10 V/m d=1.2×P1/2 80 MHz to 800 MHz lEC 61000-4-3 80 MHz to 2.7 GHz. 80 MHz to 2.7 d=2.3×P1/2 800 MHz to 2.7 GHz 385MHz- 5785MHz 385MHz- where P is the maximum output...
Page 26 Recommended separation distances between portable and mobile RF communications equipment and the models P01, P05 The models P01, P05 are intended for use in electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the models P01, P05 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the models P01, P05 are recommended below, according to the maximum output power of the communications equipment.
Page 28 Warranty Card This warranty guarantees that the product will be freely warranted in accordance with the contents of this book in the event that the product is used in accordance with the instructions during the warranty period. When the failure occurs during the warranty period, please bring the product and this warranty to the distributor for repair.
Page 29 CHANGE HISTORY Version Description Date Fist release version 2019-06 European Representative and Manufacturer 2020-05 Address description US DISTRIBUTOR: MEDWAY GROUP Phone: 1.888.563.3929 E-mail: sales@medwayus.com Website: www.medwayus.com...
