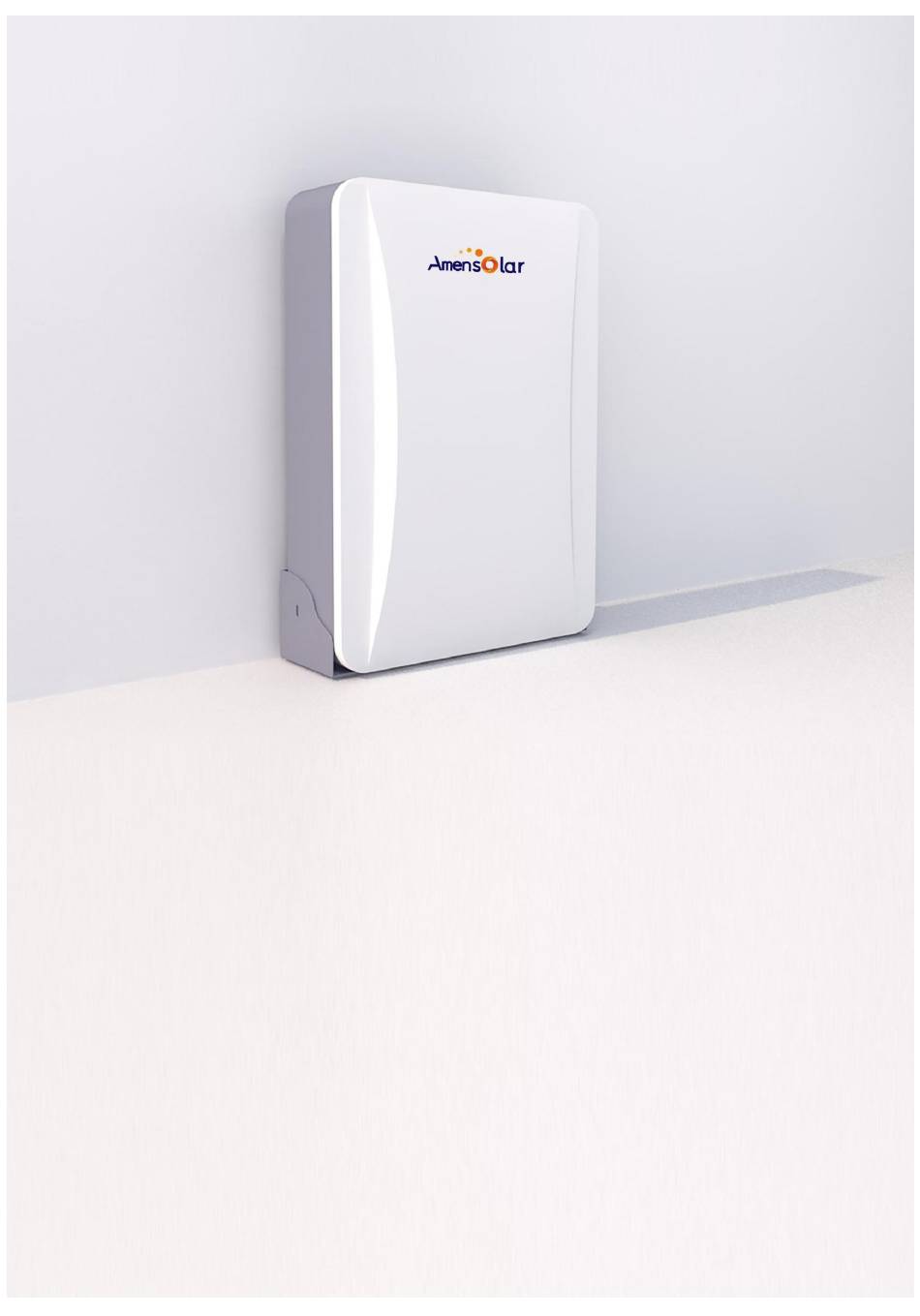

- Page 1 AMW5120/ 5KWH AMW10240/ 10KWH 51.2V 100/200Ah LiFePO4 BATTERY User Manual v2.0...
-
Page 2: Table Of Contents
Content Statement of Law......................1 Safety Precautions....................... 2 Preface.......................... Introduction......................Brief Introduction....................Product Properties....................Product identity definition ..................Product Specification..................... Size and Weight....................Performance Parameter ..................... Interface Definition....................Battery Management System(BMS)................8 2.4.1 Voltage Protection....................8 2.4.2 Current Protection....................9 2.4.3 Temperature Protection.................. -
Page 3: Statement Of Law
No part of this documentation maybe excerpted, reproduced, translated, annotated or duplicated in any form or by any means with out the prior written permission of Amensolar Ess All Rights Reserved. This product complies with the design requirements of environmental protection and personal safety. -
Page 4: Safety Precautions
Amensolar 5-10kWh/ LV User Manual Safety Precautions Warning Please do not put the battery into water or fire, in case of explosion or any other situation that might endanger your life. Please connect wires properly while installation, do not reverse connect. -
Page 5: Preface
The seller does not undertake any responsibility for device operations or usage violating general safety requirements and safety standards. Sign explanation Attention should be paid when configuring or operating AMW5120 5-10/ LV products, which follows below format to explain. Caution Neglecting the warnings might cause malfunction. -
Page 6: Introduction
1 Introduction 1.1 Brief Introduction Amensolar 5-10kWh lithium iron phosphate battery is power storage products newly designed according to market demands, supplies reliable power for all kinds of home equipment. It is especially suitable for situations with higher temperatures, less space, higher demand of weight and life span. -
Page 7: Product Identity Definition
Amensolar 5-10kWh/ LV User Manual 1.3 Product identity definition FIG1-1 Battery Energy Storage System nameplate Battery is voltage higher than safe voltage, direct contact with electric shock hazard. Be careful with your actions and be award of the dangers. The battery product meet the United Nations regulations on transport of dangerous goods. -
Page 8: Product Specification
Max. Charge Current 100A Max. Discharge Current 100A 100A Safety CE UN38.3 CE UN38.3 2.3 Interface Definition This section elaborates on interface functions of the front panel of the device Figure2-1 Amensolar 5-10kWh/ LV the sketch of front interface. - 6 -... - Page 9 Amensolar 5-10kWh/ LV User Manual 5 6 7 8 Table 2-3 Interface Definition Definition Item The battery DC output positive pole, which is connected to the Negative socket negative pole often inverter through the cable. The battery DC output negative pole, which is connected to the Positive socket negative pole often inverter through the cable.
-
Page 10: Battery Management System(Bms)
Open or cut off the main circuit, and ensure transportation Main switch safety after cutting off Table 2-4 LED status indicators (Take AMW5120 10kWh/ LV as an example) Flashing 1£ bright 0.25s Light out 3.75s Flashing 2£ bright 0.5s Light out 0.5s Flashing 3£... -
Page 11: Current Protection
Amensolar 5-10kWh/ LV User Manual 2.4.2 Current Protection Over Current Protection in Charging: When the charging current is greater than the protection value, the battery buzzer alarms and the system stops charging. After the system delays the rated time for 1 min, the protection is released. -
Page 12: Installation And Configuration
Amensolar 5-10kWh/ LV User Manual 3 Installation and Configuration 3.1 Preparations for installation Safety Requirement This system can only be installed by personnel who have been trained in the power supply system and have sufficient knowledge of the power system. -
Page 13: Tools And Data
Amensolar 5-10kWh/ LV User Manual 3.1.2 Tools and data Hardware tool Tools and meters that may be used are shown in table 3-1. Table 3-1 Tool instrument ITEM Screwdriver (word, cross) AVO meter Wrench Clamp meter Inclined pliers Insulating tape... - Page 14 Amensolar 5-10kWh/ LV User Manual Before unpacking, the total number of packages shall be indicated according to the shipping list attached to each package, and the case shall be checked for good condition. In the process of unpacking, handle with care and protect the surface coating of the object.
-
Page 15: Engineering Coordination
Amensolar 5-10kWh/ LV User Manual 3.1.5 Engineering coordination Attention should be paid to the following items before construction: Power line specification. The power line specification shall meet the requirements of maximum discharge current for each product. Mounting space and bearing capacity. -
Page 16: Floor Installation
Amensolar 5-10kWh/ LV User Manual Table 3-2 Installation steps Step1 System outage Ensure that the battery is in a shutdown state 1. Hanger mounting Mechanical Step 2 installation 2.Equipment installation 1. Connect the ground cable Electrical installation Electrical Step3 installation... -
Page 17: Mounted On The Wall
Amensolar 5-10kWh/ LV User Manual Fixing the expansion bolt M6 into the Bottom of the hole on the wall. Use the M6 bolt to fixing the Support bracket to the wall and control the torque at 6NM. Carry the battery box to the... - Page 18 Amensolar 5-10kWh/ LV User Manual Installation procedure: Use the positioning cardboard provided with the goods to draw the screw hole positions on the wall, as shown in the four holes on the left. The cardboard must be perpendicular to the ground while drawing the holes.
-
Page 19: Electrical Installation
No.1 to the correct mode. Before opening the cover to operate, you must contact Amensolar and inform the ID of Battery. Amensolar records this battery ID and authorizes the opening operation. Except charging the DIP switch mode, no other operation can be done. - Page 20 Amensolar 5-10kWh/ LV User Manual Communication port interface Connect the CAN Cable of the battery to the CAN communication interface of the inverter using the RJ45 cable. Factory default CAN communication mode. - 18 -...
- Page 21 Amensolar 5-10kWh/ LV User Manual Table 3-3 PIN Definition Foot position Color Definition Orange/ White PIN1 485A PIN2 Orange XGND Green/ White PIN3 485B Blue PIN4 CANH Blue/ White PIN5 CANL NC/NULL PIN6 Green Brown/ White PIN7 NC/NULL PIN8 Brown...
-
Page 22: Battery Module Dip Switch Definition Anddescription
Amensolar 5-10kWh/ LV User Manual 6.1.2 Battery module DIP switch definition anddescription Table3-4-1 Slave setting Address DIP switch position Instruction Slave1 Slave2 Slave3 Slave4 Slave5 Slave6 Slave7 Slave8 Slave9 Slave10 Slave11 Slave12 Slave13 Slave14 Slave15 Table3-4-2 Host setting (Table 2) - Page 23 Amensolar 5-10kWh/ LV User Manual Table3-4-3 Parallel dialing code setting example (Table 3) Number of parallel DIP switch position Instruction machines Stand alone use Stand alone use Parallel 2 First host Parallel 3 ┋ ┋ ┋ ┋ ┋ ┋ ┋...
-
Page 24: Use, Maintenance And Troubleshooting
Amensolar 5-10kWh/ LV User Manual 4 Use, maintenance and troubleshooting 4.1 Battery system usage and operationinstructions After completing the electrical installation, follow these steps to start the battery. Press the switch, the system self-check, the indicator lights turn on successively (4.1.1). -
Page 25: Alarm Description And Processing
Amensolar 5-10kWh/ LV User Manual 4.2 Alarm description and processing When protection start or failure, the ALM indicator on the side panel will alarm, through net management can query specific alarm class and take appropriate action. 4.2.1 Alarm and countermeasure influence systemoutput... -
Page 26: Analysis And Treatment Of Commonfaults
Amensolar 5-10kWh/ LV User Manual 4.3 Analysis and treatment of commonfaults Analysis and treatment of common faults in the Table 4-3: Table 4-3 Analysis and treatment of common faults Item Fault phenomenon Reason analysis Solution The indicator does not Make sure press and...
