PulseTech SP-12-OBD-A Installation Manual

INSTALLATION MANUAL
For Model SP-12-OBD-A

Getting Started

What SolarPulse Can Do For You
SolarPulse is one of the most effective methods available for charging your
12-volt lead-acid batteries. Besides charging, it also uses our patented Pulse
Technology to remove and prevent the buildup of lead-sulfate deposits on
®
your battery plates.
By keeping the plates clean, your battery recharges faster, accepts a full
charge and releases all its stored energy.

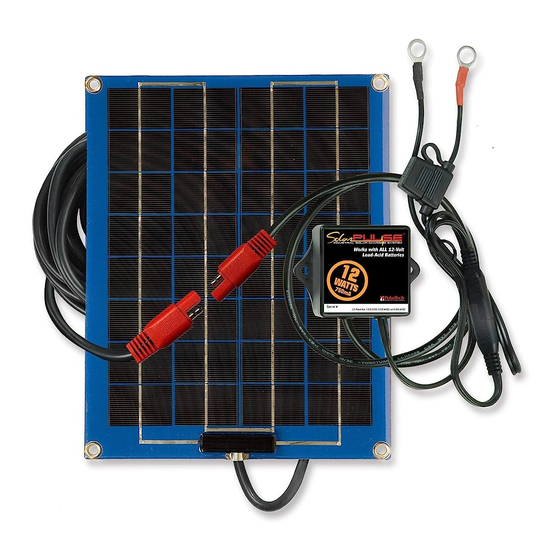

The SP-12-OBD-A 12-Watt SolarPulse unit has three components:
• Solar Panel with quick disconnect for easier installation
• Circuit Box housing our exclusive Pulse Technology
• OBD2 connector
Installation is quick and easy. Just follow the steps inside.
WARNING: Because of the possibility of personal injury, always use extreme
caution when working with batteries.

Warranty and Warnings

What Does This Warranty Cover? The warranty covers any defects in workmanship or materials in the circuit
board in the SolarPulse™ product under normal use and service. How Long Does The Coverage Last? This
warranty runs for ten (10) years from the date of purchase. What Will PulseTech Do? PulseTech will, at its
option, replace or repair any defective circuit board with a new or rebuilt circuit board at no charge. What Does
This Warranty Not Cover? This warranty does not cover any parts other than the circuit board. In addition,
PulseTech will not be responsible under this warranty if PulseTech determines that (1) upon examination that
the circuit board failure was (A) caused by misuse, neglect, accident, alteration, or abnormal condition of
operating or handling (including the failure to install the product in accordance with PulseTech's instructions
and observe the warnings on the product and the instruction manual), or other conditions beyond the control of
PulseTech or (B) damaged in transit to PulseTech, or (2) the owner is not the original purchaser that purchased
the product through an authorized PulseTech dealer or distributer. IN NO EVENT SHALL PULSETECH BE LIABLE
FOR ANY DIRECT, SPECIAL, INDIRECT, CONSEQUENTIAL, INCIDENTAL, PUNITIVE OR EXEMPLARY DAMAGES,
EXPENSES, LOST SAVINGS OR LOST PROFITS OR ANY OTHER DAMAGES OF ANY KIND FROM ANY BREECH OF
THIS WARRANTY OR OTHERWISE. Some states, provinces or countries do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation may not apply to you. How To Get Service?
Send the product postage prepaid with proof of purchase (sales receipt) within the warranty period to the
authorized reseller where the product was purchased or contact PulseTech directly by calling (800) 580-7554.
How Does State, Province or Country Law Apply? This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state, province to province or country to country.
THIS WARRANTY IS THE SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER WARRANTIES
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILI-
TY FOR FITNESS FOR A PARTICULAR PURPOSE.
10-Year Limited Warranty
Solar Panel
Quick
Disconnect
Suction
Cups

Specifications

Max Charge Current: 750 mA
Maximum Output Voltage: 16.5 V
Solar Panel Dimensions: 12.41" L x 9.85" W x 0.2" H
Circuit Box Dimensions: 3.4" L x 2.4" W x 1.5" H
Main Cable Length: 17'
Lug Cable Length: 3'
Quick Disconnect Between Solar Panel & Circuit Box
LED Pulse/Charge Indicator
High-Quality Weatherproof Suction Cups
The pulsating dc current produced by this product may
interfere with the correct operation of some electronic
devices when the unit is placed near the antenna. In order
to ensure no interference, the circuit box should be placed
away from the antenna.
BASIC CLEANING & MAINTENANCE
• Be sure to keep the solar panel clean of dirt and dust so
that it has optimum access to sunlight.
• The circuit box has no moving parts so maintenance is
unnecessary.
• Periodically check to make sure the positive and nega-
tive wires are securely fastened to the battery terminals.
OBD2 Connector
Circuit Box
WARNING
