ECS -PROGRAMMABLE-FP Installation And User Manual

The Philips SpeechControl software is required for the foot control to function properly.
 Connect the foot control to a free USB port on the PC.
 Below​ ​ i s​ ​ t he​ ​ l ink​ ​ y ou​ ​ n eed​ ​ ​ t o​ ​ d ownload​ ​ t he Philips SpeechControl software. Please select link below
https://www.dropbox.com/s/ne8vv5tzdgb2s8r/SpeechControl%20Configuration%20software%

20for%20Windows%204.0.400.22.zip?dl=03&file_subpath=%
2Fphilips_speechcontrol_installer.exe
 On a Windows computer, extract the downloaded file.
 Double-click the .exe file and follow the on-screen instructions of the set-up program to install the
software.
2
1
Press the pedal for fast rewind.
2
Press and hold the pedal to fast forward.
3
The pedal starts playback. The behavior for starting and stopping playback depends on the setting of the
playback switch on the underside of the foot control:
 N (Neutral) position: Press and hold the right pedal for playback. When the pedal is released, playback is
stopped.
 T (Toggle) position: Press and release the right pedal to start continuous playback. Press the right pedal
again to stop playback.
USA/Canada: (800) 644-9525 UK: +44 (0) 2038 071 633 AU +6 (139) 021-6839 service@tvps.com www.tvps.com
1
3
ECS-PROGRAMMABLE-FP

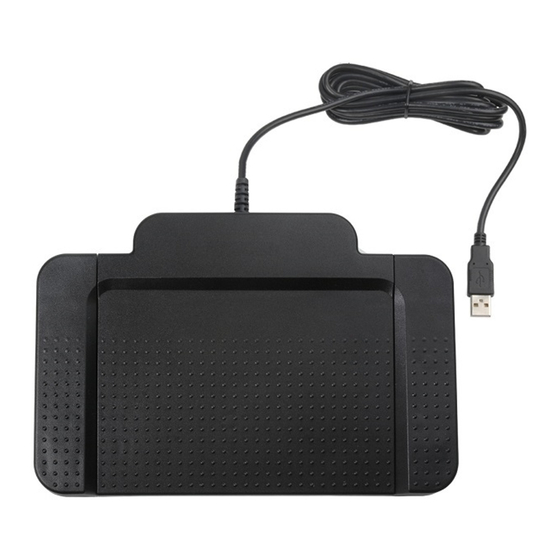

ECS Programmable 3 Button Foot Pedal
Installation and User Guide
T
Model: ACC2330/00
S/N: 000000
KW: 540
Made in Hungary
T N
N
