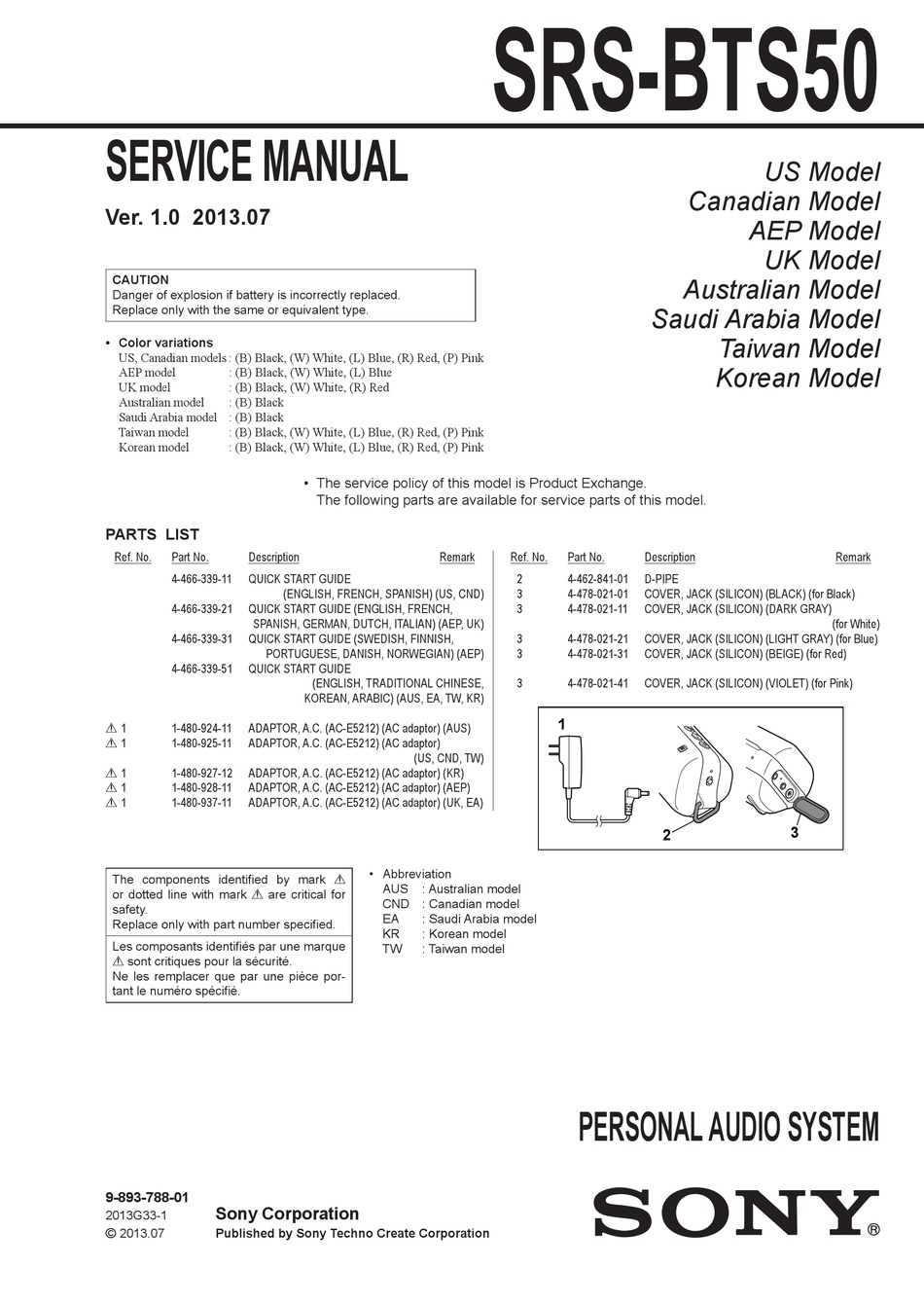

SON SRS-BTS50 Service Manual

SERVICE MANUAL
Ver. 1.0 2013.07
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
• Color variations
US, Canadian models : (B) Black, (W) White, (L) Blue, (R) Red, (P) Pink
AEP model : (B) Black, (W) White, (L) Blue
UK model : (B) Black, (W) White, (R) Red
Australian model : (B) Black
Saudi Arabia model : (B) Black
Taiwan model : (B) Black, (W) White, (L) Blue, (R) Red, (P) Pink
Korean model : (B) Black, (W) White, (L) Blue, (R) Red, (P) Pink

PARTS LIST

Ref. No. Part No. Description
4-466-339-11 QUICK START GUIDE
4-466-339-21 QUICK START GUIDE (ENGLISH, FRENCH,
SPANISH, GERMAN, DUTCH, ITALIAN) (AEP, UK)
4-466-339-31 QUICK START GUIDE (SWEDISH, FINNISH,
PORTUGUESE, DANISH, NORWEGIAN) (AEP)
4-466-339-51 QUICK START GUIDE
0 1 1-480-924-11 ADAPTOR, A.C. (AC-E5212) (AC adaptor) (AUS)
0 1 1-480-925-11 ADAPTOR, A.C. (AC-E5212) (AC adaptor)
0 1 1-480-927-12 ADAPTOR, A.C. (AC-E5212) (AC adaptor) (KR)
0 1 1-480-928-11 ADAPTOR, A.C. (AC-E5212) (AC adaptor) (AEP)
0 1 1-480-937-11 ADAPTOR, A.C. (AC-E5212) (AC adaptor) (UK, EA)
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.
9-893-788-01
Sony Corporation
2013G33-1
©
2013.07 Published by Sony Techno Create Corporation
• The service policy of this model is Product Exchange.
The following parts are available for service parts of this model.
Remark
(ENGLISH, FRENCH, SPANISH) (US, CND)
(ENGLISH, TRADITIONAL CHINESE,
KOREAN, ARABIC) (AUS, EA, TW, KR)
(US, CND, TW)
• Abbreviation
AUS : Australian model
CND : Canadian model
EA : Saudi Arabia model
KR : Korean model
TW : Taiwan model
SRS-BTS50
Saudi Arabia Model
Ref. No. Part No. Description
2 4-462-841-01 D-PIPE
3 4-478-021-01 COVER, JACK (SILICON) (BLACK) (for Black)
3 4-478-021-11 COVER, JACK (SILICON) (DARK GRAY)
3 4-478-021-21 COVER, JACK (SILICON) (LIGHT GRAY) (for Blue)
3 4-478-021-31 COVER, JACK (SILICON) (BEIGE) (for Red)
3 4-478-021-41 COVER, JACK (SILICON) (VIOLET) (for Pink)
1
2
PERSONAL AUDIO SYSTEM
US Model
Canadian Model
AEP Model
UK Model
Australian Model
Taiwan Model
Korean Model
Remark
(for White)
3
