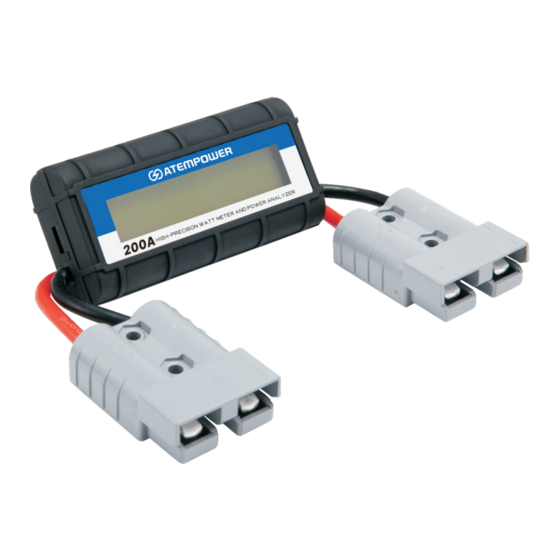

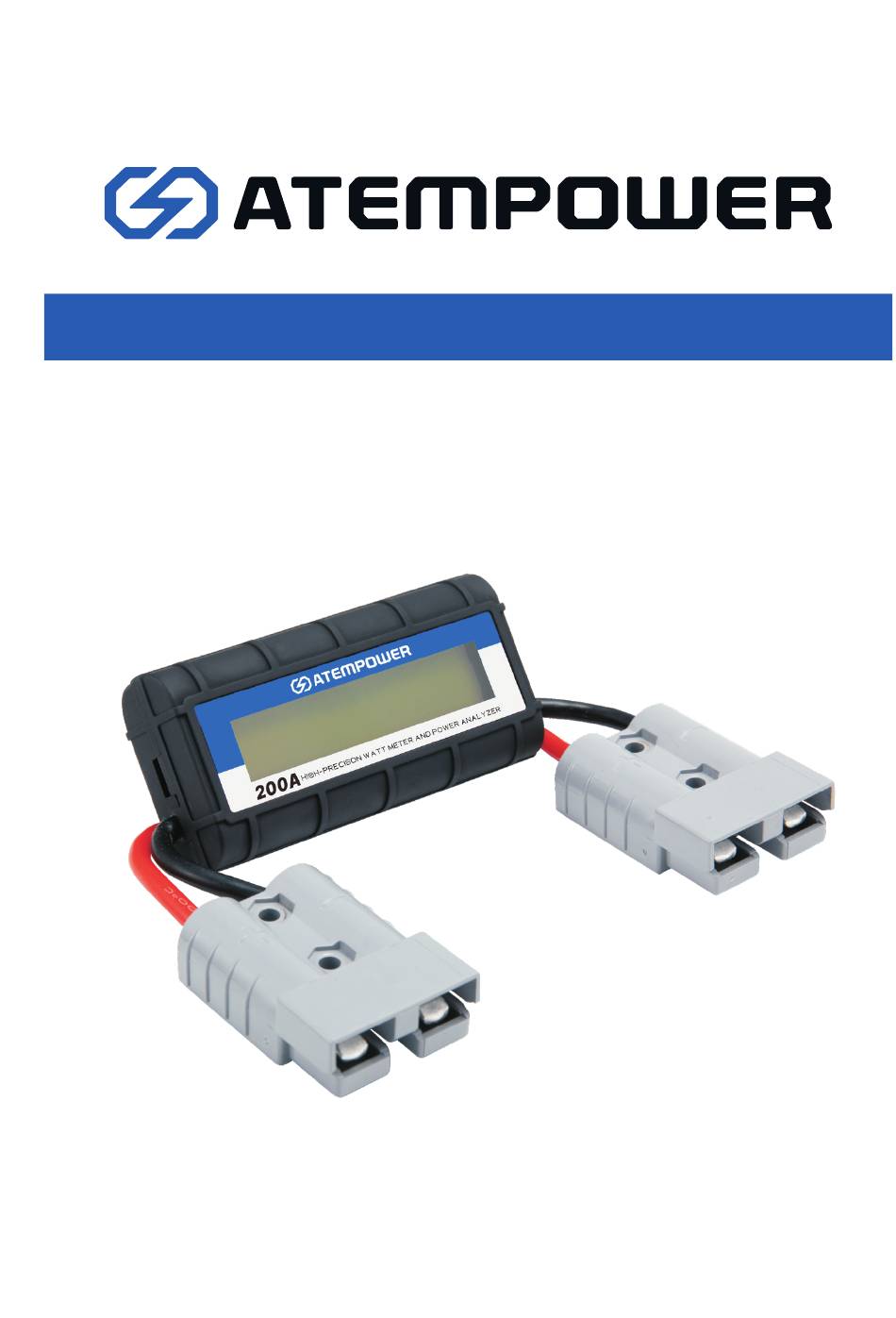

- Page 1 200A WATT METER AP200WM USER MANUAL...
- Page 2 ABOUT US ATEM POWER, born in June 2017, as a synonym for exciting outdoor experience, is an Australian company with dedication and passion for the R&D of high quality products in the field of renewable energy products, batteries and related accessories. Since the company was founded, we have committed to innovation that aims to make your life infinitely more convenient.
- Page 3 IDENTIFICATION OF PARTS PIN 1 PIN 2 Key Parts 1. Source Connection 2. Load Connection 3. Auxiliary Battery Port (Optional Component) Note: When the voltage is too low (< 9V) and the watt meter cannot display any readings, connect an auxiliary 12V battery to pin1 (negative) and pin2 (positive) to power the watt meter.
- Page 4 HOW TO USE: To monitor power being generated by your solar panels: 1. connect "Source" connection to solar panel lead. 2. connect "Load" connection to battery lead. Display will light up and start displaying power information. BATTERY 2.50A 10.51V 0.062Ah 26.2W SOLAR PANEL To monitor power being used by an appliance running from your battery:...
- Page 5 SPECIFICATIONS • Product Dimension: 3.35"L (8.5cm) x 1.65"W (4.2cm) x 0.98"H (2.5cm) • Net Weight: 0.18lbs (82g) • Operation Voltage: 0-60V (0 - 9V with Auxiliary Power) • Operation Current: 0-200A • Auxiliary Battery Operating Voltage: DC 9-60V • Auxiliary Battery Operating Current: 0.2-0.5A •...
- Page 6 WARRANTY MONTH WARRANTY PERIOD: ATEM POWER warrants that each of our watt meter that is purchased while this Warranty is in effect will be free from defective workmanship and materials for a period of 1 year. WHAT DOES THE WARRANTY COVER? 1.Any defect in design or manufacture which results in its failure to perform correctly as described.
