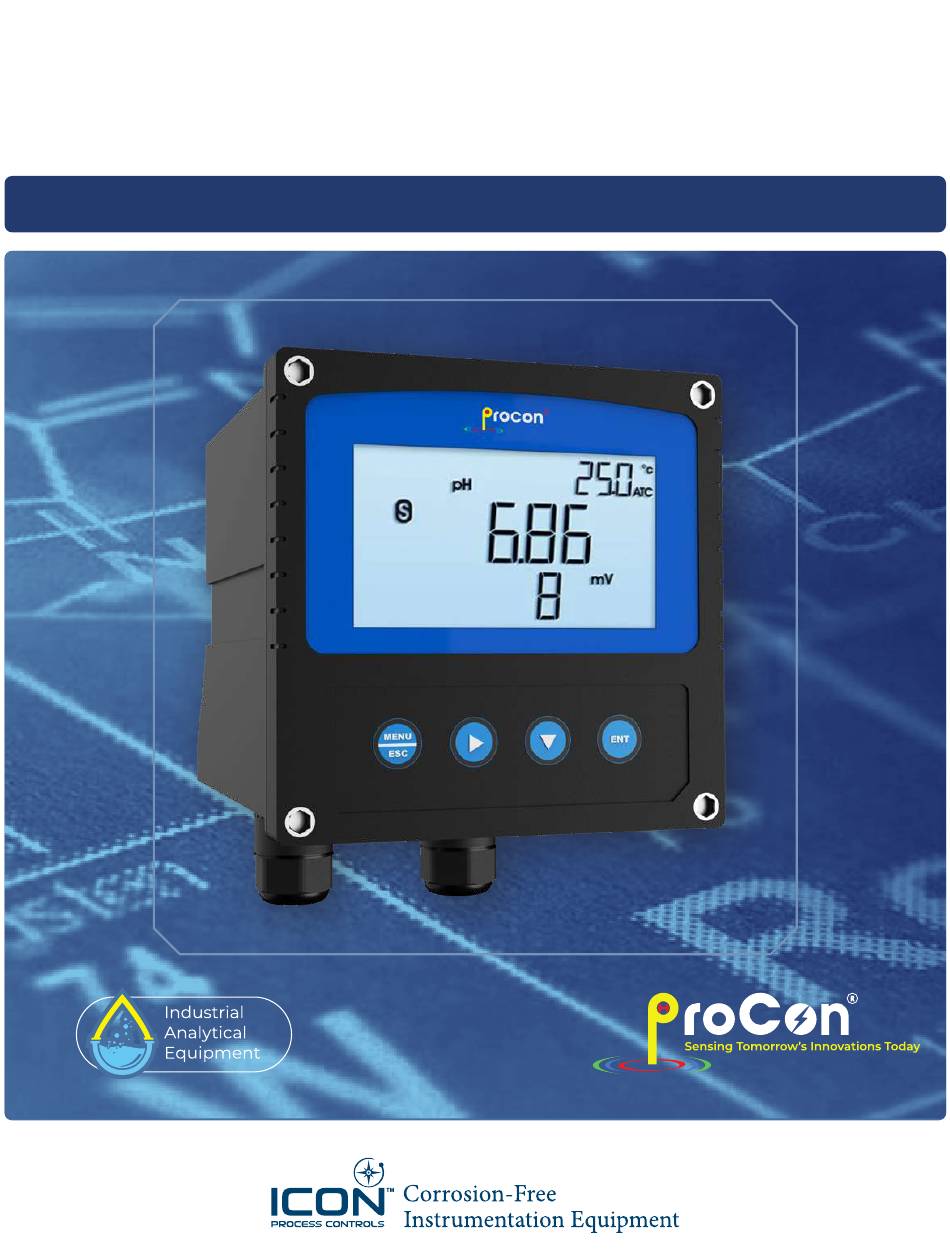

  • Page 1 C300 Series Controller Conductivity Resistivity Salinity Operating Manual...

  • Page 2: Table Of Contents

    ◀ ◀ C300 Series Operating Manual Contents Preface .................................................3 Features ................................................3 Technical Specifications ........................................4 Typical Application ..........................................4 Instrument Connection ........................................5 Dimension ..............................................5 Instrument Installation .........................................6 Keypad Descriptions ..........................................7 Display Descriptions ..........................................8 Menu Structure ............................................9 Measurement Settings (Quick Start) ..................................12 Calibration Settings (Quick Start) ....................................

  • Page 3: Preface

    ◀ ◀ C300 Series Operating Manual Preface Please read this manual carefully before use. When receiving the instrument, please open the package carefully, check whether the instrument and accessories are damaged by trans- portation and whether the accessories are complete. If any abnormalities are found, please contact our after-sales service department or regional customer service center, and keep the package for return processing.

  • Page 4: Technical Specifications

    ◀ ◀ C300 Series Operating Manual Technical Specifications Measuring Range pH: -2 – 16pH ORP: -2000 – +2000mV Unit Resolution pH: 0.001pH ORP: 1mV Basic Error pH: 0.001pH ORP: 1mV Temperature 14 – 302°F -10 – 150°C (Sensor Selection Dependant) Temperature Resolution 0.18°F 0.1°C...

  • Page 5: Instrument Connection

    ◀ ◀ C300 Series Operating Manual Instrument Connection NO 1 COM 1 Temp NC 1 Temp NO 2 Input COM 2 NC 2 pH/ORP Pow DC+ Pow ACL (9–36V) (85–265V) Cur 1+ Pow DC- Pow AC N Com - Pow PE Pow PE Cur 2+ RS -485 B...

  • Page 6: Instrument Installation

    ◀ ◀ C300 Series Operating Manual Instrument Installation...

  • Page 7: Keypad Descriptions

    ◀ ◀ C300 Series Operating Manual Keypad Descriptions Keypad Operation Tips: Short Press: press the button and release immediately. if not specified below, means short press. Long Press: press the button for 3 seconds and then release it. Press and hold: hold the button for a while and press the button until the right data is displayed then release the button.

  • Page 8: Display Descriptions

    ◀ ◀ C300 Series Operating Manual Display Descriptions Check all pipe connections and electrical connections before use. The instrument will display as shown in the figure below after the power is turned on.

  • Page 9: Menu Structure

    ◀ ◀ C300 Series Operating Manual Menu Structure Press [MENU] key to enter programming mode: If the monitor prompts you to enter the calibration security password, press the key to set the calibration security password, and then press the [ENT] key to confirm the calibration security password. No initial password here, please enter directly by pressing the [ENT] key.
  • Page 10 ◀ ◀ C300 Series Operating Manual Item Display Selection Sub Menu Channel Low Alarm Alarm Mode Relay 1 (pH) High Alarm Limit Hysteresis 0.00 (Default) Channel Low Alarm Alarm Mode Relay 2 (pH) High Alarm Limit Hysteresis 0.00 (Default) Alarm Channel Low Alarm Alarm Mode...
  • Page 11 ◀ ◀ C300 Series Operating Manual Item Display Selection Sub Menu Language English Standard Speed Medium High 30 sec Display 1 min System 5 min (Default) Backlight 15 min 30 min Always on Password No password (Default) Series No XXXXXXXXXX Version VER6.1.00 Calibration...

  • Page 12: Measurement Settings (Quick Start)

    ◀ ◀ C300 Series Operating Manual Measurement Settings (Quick Start)

  • Page 13: Calibration Settings (Quick Start)

    ◀ ◀ C300 Series Operating Manual Calibration Settings (Quick Start)

  • Page 14: Alarm Settings (Quick Start)

    ◀ ◀ C300 Series Operating Manual Alarm Settings (Quick Start)

  • Page 15: Current Settings (Quick Start)

    ◀ ◀ C300 Series Operating Manual Current Settings (Quick Start)

  • Page 16: Communication Settings (Quick Start)

    ◀ ◀ C300 Series Operating Manual Communication Settings (Quick Start)

  • Page 17: System Settings (Quick Start)

    ◀ ◀ C300 Series Operating Manual System Settings (Quick Start)

  • Page 18: Maintenance Settings (Quick Start)

    ◀ ◀ C300 Series Operating Manual Maintenance Settings (Quick Start)

  • Page 19: Measurement Setup

    ◀ ◀ C300 Series Operating Manual Measurement Setup Electrode Setup When the pH electrode connected to this instrument, you need to select the electrode type as “PH” in this item. It’s the same when the electrode becomes OPR. Temperature Setup There are four kinds of temperature types: NTC2.252K , NTC10K , PT100 and PT1000, user needs to choose the right temp comp for the electrode to display the right temperature.

  • Page 20: Ph Buffer Reading Vs Temperature

    ◀ ◀ C300 Series Operating Manual pH Buffer Reading vs Temperature Temp(°C) pH 4.01 pH 6.86 pH 9.18 pH 4.00 pH 7.00 pH 10.01 4.01 6.98 9.47 4.01 7.12 10.32 4.01 6.95 9.38 4.00 7.09 10.25 4.00 6.92 9.32 4.00 7.06 10.18 4.00...
  • Page 21 ◀ ◀ C300 Series Operating Manual Choose ‘pH (2 points) 4/6/9’ (Before each operation, the electrode can be placed in the standard solution for about 60s) After calibration of 1st point, follow with the 2nd point: After above calibration, there will be the results: Calibration 6.86 and 4.00 will be saved in offset 1 and slope 1;...
  • Page 22 ◀ ◀ C300 Series Operating Manual Choose ‘pH (2 points) 4/6/9’ (Before each operation, the electrode can be placed in the standard solution for about 60s) After calibration of 1st point, follow with the 2nd point: After calibration of 2nd point, follow with the 3rd point: After above calibration, there will be the results: Save the results and it can be queried next time.
  • Page 23 ◀ ◀ C300 Series Operating Manual Please enter the pH value obtained from the standard portable instrument or standard laboratory test equipment data. After pressing ‘Enter’, the instrument will display the calibration result, press the “Save” button to exit: Save the results and it can be queried next time 2.4 ORP Standard solution calibration (S-S-C) Choose ORP single point calibration, and put the sensor into standard liquid, follow the instruction to operate: Save the results and it can be queried next time 2.5 ORP onsite calibration Choose onsite ORP and put sensor into water sample,follow the instruction to operate;...

  • Page 24: Alarm Setup

    ◀ ◀ C300 Series Operating Manual Alarm Setup User can choose setting of relays here; The user can set the relay ‘High alarm’ or ‘Low alarm’ through the ‘Alarm mode’ of the relay. The default of relay 1 is ‘High alarm’, and the default of relay 2 is ‘Low alarm’...
  • Page 25 ◀ ◀ C300 Series Operating Manual “Current Setting” can assist users to connect to equipment such as central control computer and data acquisition instrument. In the ‘Password’, you first need to enter the old password. If you haven’t set a password, select ‘Confirm’ to enter and you can jump to the ‘Enter New Password’...

  • Page 26: System Setup

    ◀ ◀ C300 Series Operating Manual System Setup ‘Speed’ can adjust the speed of the screen display data, the system is divided into four categories ‘low, standard, medium and high’. When leaving the factory, the system default display rate is ‘standard’. Maintenance Password is needed to enter ‘Current calibration’, if there is no password, press ‘Enter’...

  • Page 27: Troubleshooting

    Warranty Icon Process Controls warrants this product to be free from significant deviations in material and workmanship for a period of one year from the date of purchase. If repair is necessary and has not been the result of abuse or misuse within the warranty period, please return to Icon Process Controls and amendment will be made without any charge.
  • Page 28 ◀ ◀ Need a great sensor? Pair your D300 Series controller with the industry’s most innovative and reliable sensing technology ico np rocon.com 22-0005 01/20/23...
