Adyen NYC1 and NYC1-SCR

User Manual

Table of Contents

Need help?

Do you have a question about the NYC1 and is the answer not in the manual?

Questions and answers

Summary of Contents for adyen NYC1

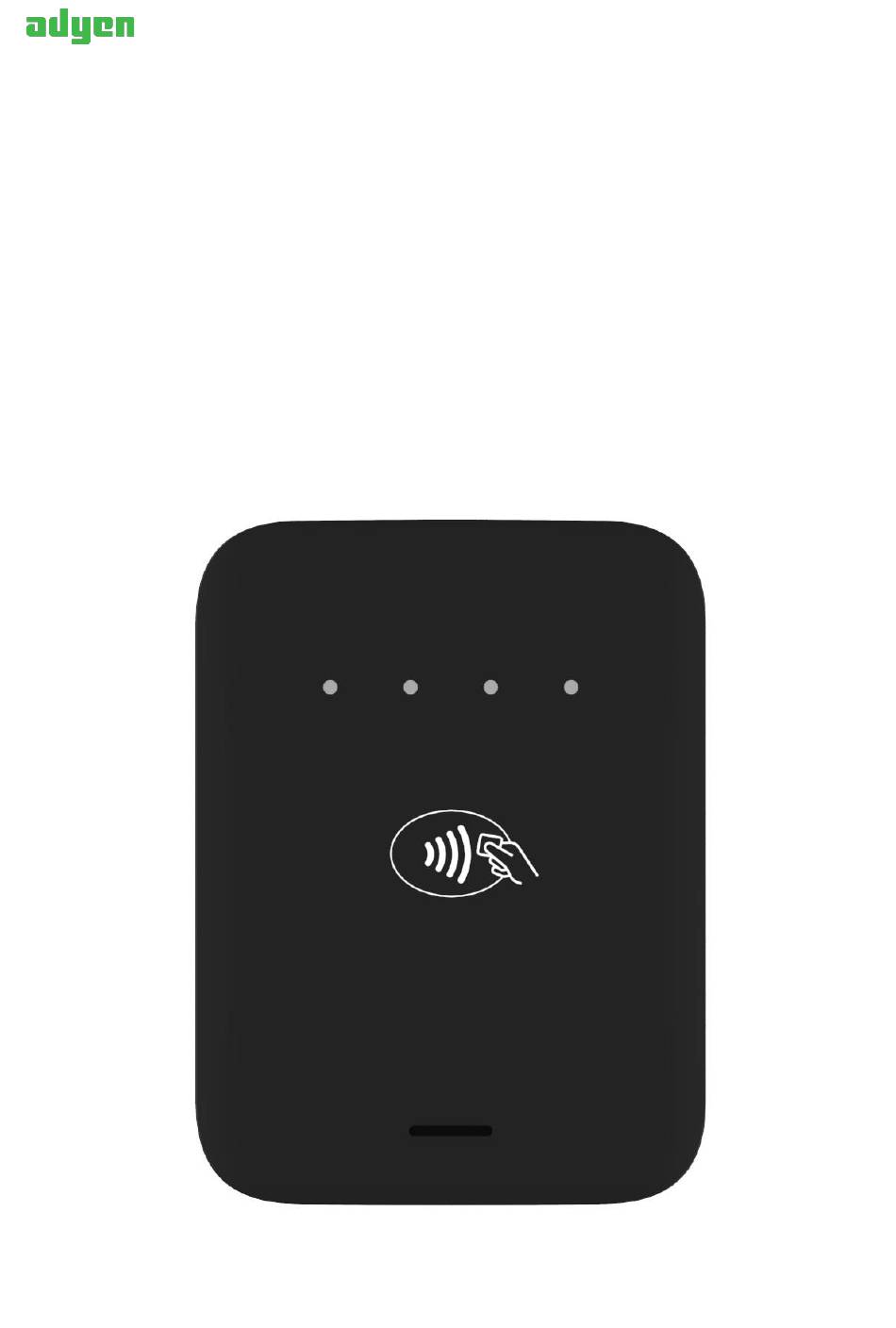

Page 1 Adyen NYC1 and NYC1-SCR User Manual...
Page 2 NYC1/NYC1-SCR USER MANUAL THE INFORMATION IN THIS DOCUMENT CANNOT BE REPRODUCED IN ANY MECHANICAL, ELECTRICAL OR ELECTRONIC WAY AND UNDER ANY CIRCUMSTANCES WITHOUT THE WRITTEN CONSENT FROM Adyen NV. Address: Simon Carmiggeltstraat 6-50, Amsterdam, 1011 DJ, Netherlands Phone: +31621161626...
Page 3 NYC1/NYC1-SCR USER MANUAL REVISION HISTORY Version Data Change description 1.0.0 13.06.2022 Release version 1.1.0 02.08.2022 Updated section “SERVICE AND SUPPORT” 1.2.0 23.09.2022 Updated section “REGULATORY” 1.3.0 14.10.2022 Added NYC1 1.4.0 16.11.2022 Updated section “TECHNICAL SPECIFICATIONS” 1.5.0 17.11.2022 Updated section “REGULATORY”...
Page 4: Table Of Contents
NYC1/NYC1-SCR USER MANUAL CONTENTS REGULATORY ................................... 5 TECHNICAL SPECIFICATIONS ..............................6 GENERAL VIEW ..................................7 GETTING STARTED ................................... 8 PERIODIC INSPECTION AND MAINTENANCE .......................... 9 OPERATION MODES ................................10 ..........10 PPLICATION IRMWARE DOWNLOAD MODE YSTEM MODE AND LEARING LUETOOTH PARING INFO ..................................
Page 5: Regulatory
REGULATORY FCC Statement FCC ID: 2A7UQ-NYC1 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 6: Technical Specifications
NYC1/NYC1-SCR USER MANUAL TECHNICAL SPECIFICATIONS ARM Cortex® M4 Security Microcontroller Processor Memory 32KB I&D-Cache 1MB Internal RAM 8КB OTP Application Memory 8MB Serial Flash Keypad • ON / OFF key Magnetic Card Reader • 3-track bi-directional reading (For MSR version) •...
Page 7: General View
NYC1/NYC1-SCR USER MANUAL GENERAL VIEW Figure 1 1. LEDs indication for Contactless transaction / LEDs indication for device status 2. On/Off button (Bluetooth pairing and cancel button) 3. Rear Pads (USB and charging) 4. Opening for inserting smart card 5. Speaker 6.
Page 8: Getting Started
USER MANUAL GETTING STARTED NYC1/NYC1-SCR has rechargeable Li-Po battery. Can be charge from USB port or Rear pads. Before first use, battery must be fully charged. If the device is fully discharged, charging time to fully charged would be approx.
Page 9: Periodic Inspection And Maintenance
NYC1/NYC1-SCR USER MANUAL PERIODIC INSPECTION AND MAINTENANCE The following inspections must be performed on a regular basis after initial receipt and installation of NYC1/NYC1-SCR: • There are no visual indications for trying unauthorized opening of the device • There are no unusual wires connected to the ICC acceptor or any of the ports on the terminal.
Page 10: Operation Modes
When device is in Boot Loader/Application download mode will be played characteristic sound. System mode - to enter in “SYSTEM MODE” on the NYC1/NYC1-SCR, the power button must be maintained pressed and USB cable plugged. A characteristic sound is played and first white LED will start to light.
Page 11 NYC1/NYC1-SCR USER MANUAL LED indication Description Device operating No indication Device is turned off No indication (Depends Device is turned on of Application) Second white LED lights Please refer to “Application download up constantly mode” Third white LED lights Please refer to “System mode”...
Page 12: Bluetooth Pairing
PASSKEY (Fig. 6). White LEDs will start to light one by one continually, on special app will be show Passkey (Fig. 4), if they are same press “On/Off” two times on NYC1/NYC1- SCR to confirm (Fig. 5), then special app return message “THE DEVICES ARE CONNECTED” (Fig.7 when on each device is confirming pairing).
Page 13: Update Firmware And Application With Using Firmware Api
Pairing”. Run the Application* on COTS (smart device) and press “Update device firmware”. Figure 8 * In order to use the NYC1/NYC1-SCR functions with COTS (smart device), special software must be used. Please contact your distributor in order to get the latest demo application and SDK.
Page 14: Magnetic Cards Reading
USER MANUAL Magnetic cards reading The NYC1/NYC1-SCR has a built-in magnetic card reader. The card reader incorporates a (3) track magnetic read head, requiring a single swipe to read field data from all three tracks. The magnetic reading head faces down. When swiping the card into the reader, the magnetic stripe must be facing up as shown in the figure below.
Page 15: Contactless Cards Reading
Contactless cards reading The contactless card transaction procedure can vary depending on the application loaded on the NYC1/NYC1-SCR. Verify the proper procedure with your application provider before performing a contactless card transaction. In order to use the Contactless card reading function, special software must be used. Please contact your distributor in order to get the latest demo application and SDK.
Page 16: Smart Cards Reading
USER MANUAL Smart cards reading The smart card transaction procedure can vary depending on the application loaded on the NYC1/NYC1-SCR. Verify the proper procedure with your application provider before performing a smart card transaction. To Conduct a Smart Card Transaction 1 Position a smart card with the gold contacts facing upward.
Page 17: Care, Maintenance And Warranty
For NYC1/NYC1-SCR problems, product service, and repair information, contact your local Adyen representative or service provider. • International – Contact your local Adyen distributor Service Returns: All customers, please contact your local Adyen NV representative or distributor for assistance with your service, return, or replacement.

This manual is also suitable for:

Nyc1-scr
