Owner's Manual
Owner's Manual
excalibur series
excalibur series
Dynasty Spas, 101 Dynasty Way, Athens, TN 37303
www.dynastyspas.com
All Information In This Manual is Subject to Change Without Notice
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the excalibur Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Dynasty Spas excalibur Series

  • Page 1 Owner's Manual Owner's Manual excalibur series excalibur series Dynasty Spas, 101 Dynasty Way, Athens, TN 37303 www.dynastyspas.com All Information In This Manual is Subject to Change Without Notice...
  • Page 2: Owners Information

    Dynasty Spa. Please call your local Dynasty Spa Dealer if you have any questions or problems. If they are unavailable, please feel free to call the Dynasty Spas Customer Service Group at: 800-951-6224.
  • Page 3: Table Of Contents

    Dynasty Spas Owner's Manual Dynasty Spas Owner's Manual Table Of Contents Owners Information......Safety Instructions....... Basic Introductory Information..... Set-Up & Delivery Guidelines....Wiring Requirements......Wiring Diagram........Pre-Operation Instructions....3000 & 4000 Systems......5000 System........Stereo Features........Air Venturies & Diverter Valves....
  • Page 4 Thank you for your business and your confidence in our company. We look forward to serving you! Sincerely Mike Deans President , Dynasty Spas Dynasty Spas 101 Dynasty Way Athens, Tennessee 37303 www.dynastyspas.com...
  • Page 5: Safety Instructions

    Important Safety Instructions When installing and using this electrical equipment, basic safety precautions should be followed, including the following: 1) READ AND FOLLOW ALL INSTRUCTIONS. 2) WARNING: To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times.
  • Page 6 Important Safety Instructions (cont.) Persons suffering from obesity or with a medical history of heart disease, low or high blood pressure, circulatory system problems, or diabetes should consult a physician before using a spa. Persons using medication should consult a physician before using a spa since some medication may affect heart rate, blood pressure, and circulation.
  • Page 7: Basic Introductory Information

    Basic Introductory Information Congratulations on the purchase of your new spa. Our purpose is to provide you with a warm and relaxing spa which incorporates a soothing water massage. In order to maximize the pleasure of your spa, you will need to understand how it works. The following operating and maintenance instructions are very important and must be followed carefully.
  • Page 8: Set-Up & Delivery Guidelines

    Set-up & Delivery Guidelines Getting Ready For Delivery & Set-up Of Your New Spa Surface And Pad Requirements Your new portable spa must be placed on a uniformly firm, flat, and level surface. A concrete pad 4 inches thick is best. If your spa is located near sprinklers, adjust or cap them so as not to hit the siding of the spa.
  • Page 9 Set-up & Delivery Guidelines Getting Ready For Delivery & Set-up Of Your New Spa Wiring Requirements (Cont.) Extension Cords are not to be used in conjunction with operation of the spa. Low voltage damage could result, which is not covered by warranty. If you have any doubts, have your electrical system checked by a qualified electrician.
  • Page 10: Wiring Diagram

    Wiring Diagram Factory Recommended G.F.C.I. Load Center Wiring Note: The white neutral wire from the back of the G.F.C.I. MUST be connected to an incoming line neutral. The internal mechanism of the G.F.C.I. requires this neutral connection. The G.F.C.I. will not work without it.
  • Page 11: Pre-Operation Instructions

    General Pre-Operation Instructions Priming Pump For Electric Packs The Power pack system is located under the wood skirt. The equipment can be serviced by simply opening the doors. It is important to make sure that all of the air is out of the equipment pack before operating.
  • Page 12: 3000 & 4000 Systems

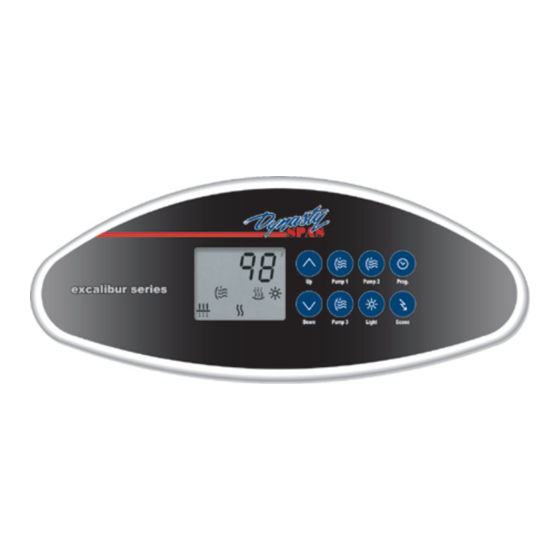

    Top Side Control Instructions Depending on the Dynasty Spa model you purchased, you'll have different options available to you with Dynasty's digital controls. The operations of your hot tub can be enjoyed at the touch of a button. This section is designed to walk you through the details of the operation of the Dynasty 3000, 4000 &...
  • Page 13 3000 & 4000 Top Side Control Instructions The system automatically performs two filter cycles per day, at 12-hour intervals. During a filter cycle: • Pump 2 runs for one minute, then • Pump 1 runs at low speed for the programmed number of hours The "Filter Cycle"...
  • Page 14: 5000 System

    5000 Top Side Control Instructions 5000 System Automatic water heater start: Starting Pump 1: When water temperature is 1˚F (0.5˚C) Press Pump 1 to turn Pump 1 on at low lower than the Set Point, the heater will speed. Pressing a second time turns Pump 1 automatically turn on until water tempera- to high speed.
  • Page 15 5000 Top Side Control Instructions Setting water temperature: Use Up or Down arrow key to regulate water temperature. The temperature setting will be displayed for 5 seconds to confirm your new selection. The "Set Point" symbol indicates the desired temperature, NOT the current water temperature! Water temperature can be adjusted by 1˚...
  • Page 16 5000 Top Side Control Instructions Temperature unit Step Programming Sequence Step 1 Time of day Step 2 Filter cycle start time Filter Cycle Heater Up & Down Step 3 Filter cycle duration icon icon arrows Step 4 Filter cycle frequency Economy Mode Programming Mode icon...
  • Page 17 5000 Top Side Control Instructions Summary of control panel Digital control pad lockout parameters This function allows you to prevent unauthorized parameter setting of the unit. This feature is especially helpful when young FSxx Filter cycle start time children have access to the keypad. Fdxx Filter cycle duration FFxx Filter cycle frequency There are two modes you can choose from: Full lock or Partial...
  • Page 18: Stereo Features

    Excalibur Stereo Features Whether you want to be worlds away, or have the world at your fingertips, the Dynasty Spas Excalibur Series 6 Speaker AM/FM w/remote, delivers total entertainment and delights all the senses. Features 4 x 40 Watts 160 Total...
  • Page 19: Air Venturies & Diverter Valves

    Air Venturies & Diverter Valve Controls Diverter Valves This valve controls the output of the pumps to either side of the spa and neck jets, a simple turn of the pointer toward the seat(s) will increase the output allowed. Another turn of the pointer away from the seat(s) will decrease the flow of the jets, or it may operate all the jets if left in the middle position.
  • Page 20: Filter Location

    Filter Location Skimmer / Filter Location Baron 3000 Skimmer / Filter Location...
  • Page 21: Filter Maintenance

    Filter Maintenance Filtration starts as soon as flow is steady through the filter. The filter cartridge removes the dirt from the spa water, the accumulated dirt causes flow resistance. A dirty cartridge will decrease flow and may cause spa not to heat properly. Therefore, regular filter cleaning is important.
  • Page 22: Water Care

    Keeping Your Spa Water Clean & Fresh Cleaning Your Spa Water You need to keep you spa clean and ready to use. When you enter your spa, you bring in as much contaminant as 50 people would in a normal size swimming pool! Because your spa is such a small, enclosed environment, it needs to be a sanitary place.
  • Page 23 Keeping Your Spa Water Clean & Fresh 4) pH STABILIZER - It will properly adjust and hold the pH for up to 3 months Water Testing Your Dynasty dealer is equipped to perform a thorough analysis of your spa water. Take a one liter sample to the store and they will advise you on the products necessary to properly balance and care for your spa.
  • Page 24 Keeping Your Spa Water Clean & Fresh An Overview Monthly - For Equipment Protection CALCIUM BOOSTER (If Needed) - Calcium booster treats the water if low calcium hardness is a problem in your area. It will help prevent equipment corrosion and foaming by raising the spa's water hardness level to an acceptable range of 120 ppm.
  • Page 25 Keeping Your Spa Water Clean & Fresh An Overview As Needed (cont.) Skin Conditioning To prevent dry skin, pour SKIN SOFTNER directly into the spa. It smoothes and moisturizes. Algae Control For spas with green or yellow algae, use SPA ALGAECIDE to kill and prevent further algae growth.
  • Page 26: Draining Your Spa

    Draining Your Spa Because a spa holds a relative small amount of water, contaminants such as body oil, perspiration, dirt, hair, etc., may become quite concentrated. For this reason, the water should be drained and replaced every three months depending on use.
  • Page 27: Winterizing Your Spa

    Winterizing Your Spa In areas of the country where the temperatures drops below 32º F, it is important to follow these directions When winterizing the spa, we recommend putting RV Antifreeze in the spa and running it before draining the spa. 1) If the spa is not going to be used, drain completely.
  • Page 28: Cover Maintenance

    Maintaining Your Spa Cover Proper Maintenance For Your Dynasty Spa Cover 1) Use a soft broom to remove accumulation after every snowfall or ice storm 2) Splash cool tap water on the hardware to free them if they become frozen shut.
  • Page 29: Trouble Shooting Guide

    Trouble Shooting Guide No heat or heat too low Probable Cause #1 Dirty Filter Action Clean Filter / Pull Filter and try running without filter Probable Cause #2 Breaker at house off. Action Reset breaker at house. Breaker can appear to be on and one pole can be off.
  • Page 30 Trouble Shooting Guide (cont.) Low water flow Probable Cause #1 Dirty Filter Action Remove filter cartridge and clean. Probable Cause #2 Closed gate valves or blocked lines. Action Open all gate valves. Probable Cause #3 Low voltage or incorrect voltage Action Have a Licensed Electrician check the line voltage Spa is leaking...
  • Page 31: Glossary Of Terms

    Glossary of Terms Air Venturi Mounted on the lip of the spa or at the equipment shroud, to induce air to the jets An air release screw/valve that is used to release air Bleeder Screw and prime the pumps, located on side wall next to skimmer area.
  • Page 32 Glossary of Terms (cont.) Stands for "Potential for Hydrogen" This is the term used to describe the acid (low pH) or alkalinity (high pH) condition of the water. The ideal pH for spa water is 7.5 Skimmer This is the square opening with the floating gate at the water level.
  • Page 33 NOTES...
  • Page 34 NOTES...
  • Page 35: Reference Chart

    Spa Models Detail Reference Chart Weight Model Jets Dimensions Gal. Persons Filled 60"x82"x30" 2625 Baron 40, 50 82"x82"x36" 3175 Camelot 78"x92"x33" 3250 Gallant Lancelot 82"x82"x36" 3175 Monarch 92"x92"x36" 4100 Renaissance 30, 40, 50 92"x92"x36" 4105 Standard Spa Features 3000 Series Models 30 Jets Baron 3000...
