- Page 1 YS S ER I E S I NST R UCT I O N M A N UA L Shenzhen Shi Yutong Technolog y Co., LTD...

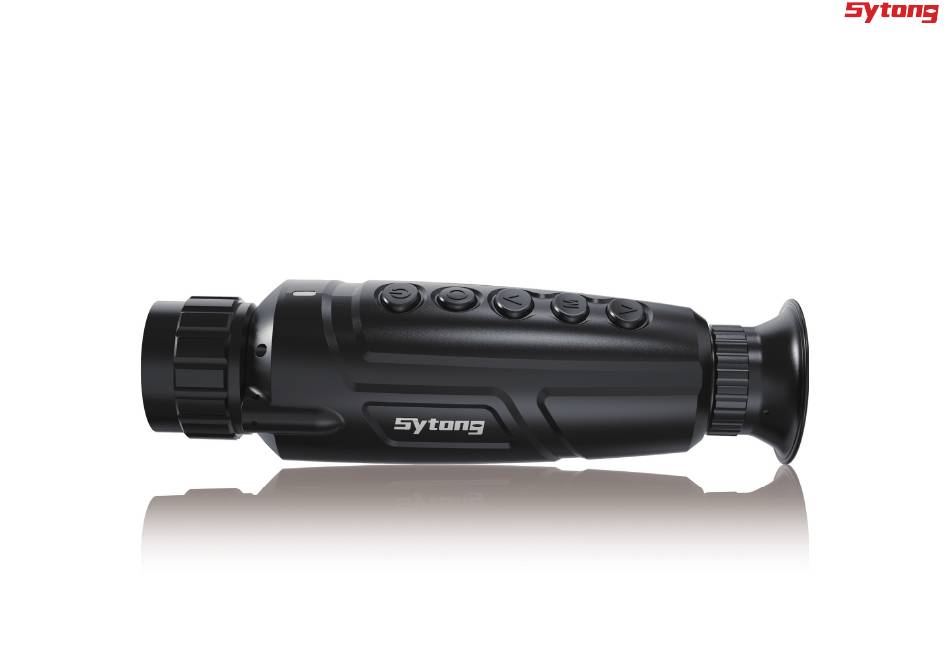

- Page 2 2、 Objective focusing ring 3、 Power on/Standby button 1、 Objective lens/Protective Cap 4、 Record button REC 5、 Navigation button up 6、 Menu button 7、 Navigation button down 8、 Eyepiece focusing ring 9、 Eyerelief 10、 Laser Red dot 12、 Charging port/TV OUT 11、...
-
Page 3: Packaging Accessories
Packaging accessories • YS Handheld thermal scope • Type-c cable • Manual • 5V2A adapter Start Power On and Image Settings • Short press the ON/OFF (3) button to power on. • Rotate the eyepiece adjustment ring (8) to get a clear image of the icons on the display. •... -
Page 4: Power Button
Button YS button detailed navigation Power button Short press to power on. Long press for 3 seconds to power off. When powered on, press and hold the power button for 1-3 seconds,When the sleep icon appears on the screen, it is regarded as standby mode,and a short press under the standby mode can activate the device *Short press to switch the shutter, it takes 5 seconds when the shutter is automatically switched Take pictures and videos... -
Page 5: Menu Function
1、 Select "On" or "Off" on the submenu, turn on the WIFI in the menu, then open the WIFI of the mobile phone and the APP in the SYTONG test software, and find the MAC address name of the WIFI of the mobile phone Sytong-Ther- mal and password Confirm 12345678, enter the password to see if the connection is normal (WiFi is off... - Page 6 4.Hotspot Tracking Click the M button to enter the hotspot tracking in the main menu, which can be turned on or off. After the hotspot tracking is turned on, there is a tracking point to follow the object during the shooting process. 5.Screen Brightness Select "Screen Brightness"...
-
Page 7: Language Settings
10.Language settings Click the M button to enter the menu language setting, set any language and confirm, the language will change after the setting. 11.Video and audio Cursor to select "Video Audio" and press "M" to call out the submenu. Select "On" or "Off" on the submenu, and confirm whether the recording is with voice and audio recording 12.Format Enter the submenu "Format"... -
Page 8: App Connection
Enter into the menu and turn on WIFI. Enter into APP Enter into APP choose wifi "Sytong ..." to connect WIFI choose wifi "Sytong ..." to connect WIFI Download APP by Scanning the QR Download APP by Scanning the QR... -
Page 9: Optical Characteristics
YS03 YS03 detailed parameter data sheet Sensor (military grade) Type Resolution, pixels non refroidi 384x288 super sensitive Frame rate Taille pixels 50 Hz 12μm NETD <30mK Optical characteristics Objective lens Magnification f15/25mm, F/1.0 1.2X/2.0X Continuous digital zoom Eye relief x1 / x2 / x4 / x6/ x8 30 mm Dioptre adjustment Deteciton distance... - Page 10 Li-Ion Battery Pack / 6000mAh Power supply Battery 3-4.2 V / DC 3.7V External power supply Operating time (at t=22℃) 5V (USB) 9 hours Max. recoil power, Joules Waterproof rating IP65 Operating temperature Dimensions ﹣20℃...50℃ 210X64X63mm Weight (without battery/ 570g mount) Video recorder Video / photo resolution...
- Page 11 YS06 YS06 detailed parameter data sheet Sensor (military grade) Type Resolution, pixels non refroidi 640x480 super sensitive Frame rate Taille pixels 50 Hz 12μm NETD <30mK Optical characteristics Objective lens Magnification f25/35mm, F/1.0 1.2X/1.7X Continuous digital zoom Eye relief x1 / x2 / x4 / x6/ x8 30 mm Dioptre adjustment Deteciton distance...
- Page 12 Li-Ion Battery Pack / 6000mAh Power supply Battery 3-4.2 V / DC 3.7V External power supply Operating time (at t=22℃) 5V (USB) 9 hours Max. recoil power, Joules Waterproof rating IP65 Operating temperature Dimensions ﹣20℃...50℃ 210X64X63mm Weight (without battery/ mount) 570g Video recorder Video / photo resolution...
-
Page 13: Power Adapter
Notice! Accessories Use Reminder Power Adapter Only applicable to charging voltage below 5v/2A. Laser pointer adjustment Press the menu button to turn on/off the red dot indicator light and adjust the position of the red dot indicator light through the red dot indicator adjustment port of the inner hexagon wrench TF card Whether TF card can be recognized normally, supported (8-128G), smooth and free of delay, connect USB power supply to boot, open video recording in the menu, and the flash of video label means automatic recording. - Page 14 Follow Sytong official account to learn more...
