1
Introduction
The IFDB-S is a compact enclosure to break out fibers from an indoor
riser cable into individual drops to the living units of a MDU.
These drops provide a fiber optic connection to the living units.
2

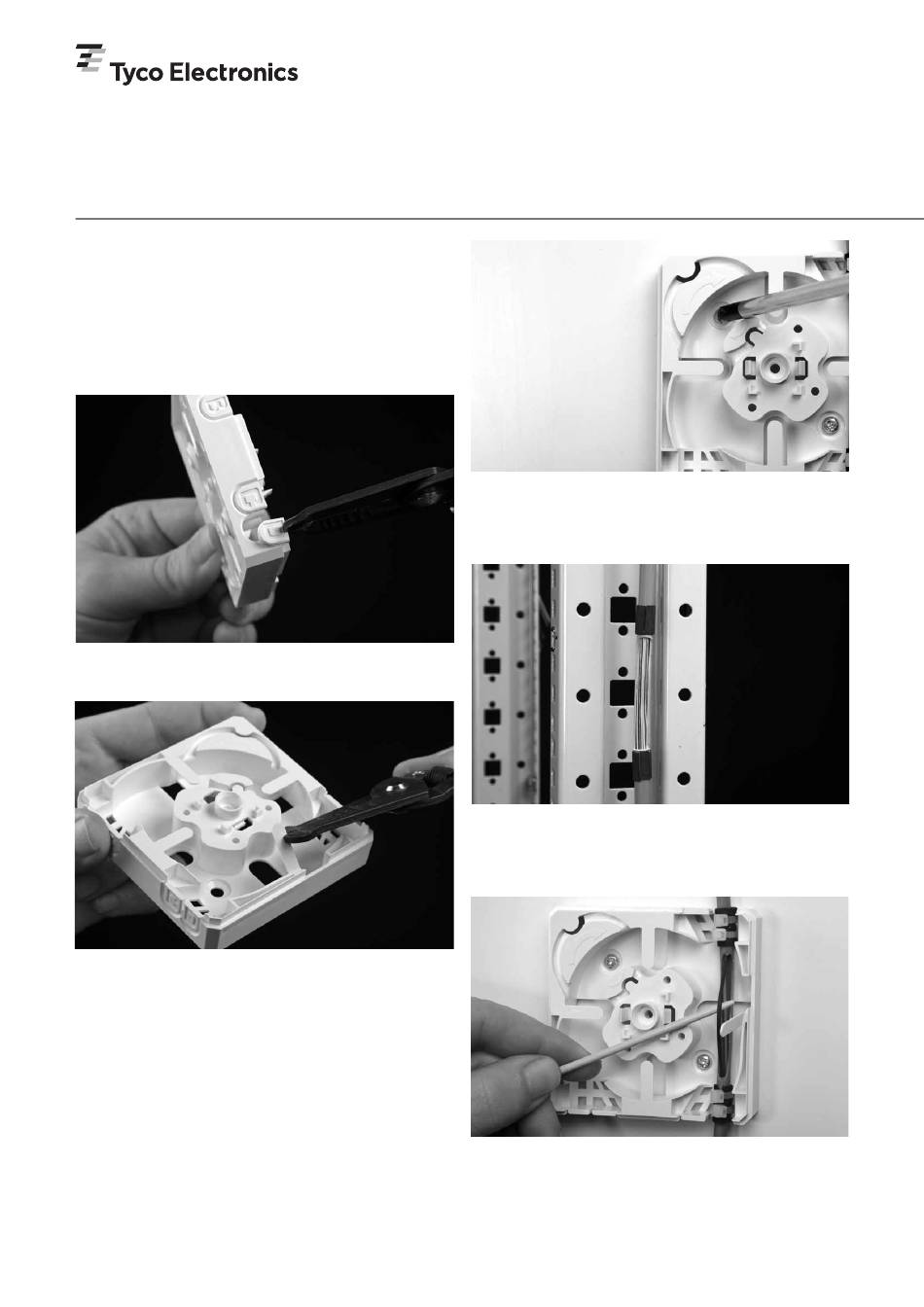

Preparation of the box
2.1
Open the ports needed.
2.2
Lip can be hinged, to install the cable.
IFDB-S
I N S T A L L A T I O N
Indoor fiber distribution box - small
2.3
Secure the box onto the wall (optional).
3
Preparation of the cable
3.1
Make an incision of 55 mm and place foam on both ends.
4
Installation of the cable into the box
4.1
Install the cable in the box. Take out the intended fiber for
about 20 mm.
I N S T R U C T I O N
Advertisement
Summary of Contents for Tyco Electronics IFDB-S
- Page 1 Indoor fiber distribution box - small Introduction The IFDB-S is a compact enclosure to break out fibers from an indoor riser cable into individual drops to the living units of a MDU. These drops provide a fiber optic connection to the living units.
- Page 2 Pull out the required fibers by using the thumb to control the Route the fiber through the groove. bending and one finger for pulling . Route the fiber behind the splice holder. Routing the fiber in the base tray up to the splice tray. In case the fiber comes from the top, follow the routing as shown to go up to the splice tray.
- Page 3 Preparation of the drop cable Drop ports with tie wrap fixation 5.1.1 Strip 1 m of the pigtails to 900 micron. Place some Kevlar under the foam, wrap 1 layer of foam around the pigtail at the end of the coating. 5.1.4 Secure the pigtail onto the bracket.
- Page 4 5.3.3 Push the transportation tube trough the boot and cut away at the edge of the boot. 5.2.3 Install the bracket onto the splice tray. Drop ports with boot fixation 2 3 4 5.3.4 Push the fiber trough the transportation tube. 5.3.1 Install the bracket on the splice tray.
- Page 5 5.3.5 Install the transportation tube with the boot onto the bracket. Recommended to strip the 900 micron to 250 micron half way the splice holder, in case of semi-tight pigtails. In case the pigtail is tight, only 0.8 m can be stored in the storage area. Splicing - Fiber cable side: 1.2 m - Fiber drop cable...
-
Page 6: Closing The Box
Pigtail side Cable side Install the splice protectors into the splice holder. Check the orientation of cable-pigtail side to avoid crossings. Connectors, store the overlenght of the pigtails (900 micron) and fibers in the storage area, use the lips of the connector bracket. No fibers routed under the connectors. - Page 8 Tyco Electronics’ obligations shall only be as set forth in Tyco Electronics’ Standard Terms and Conditions of Sale for this product and in no case will Tyco Electronics be liable for any incidental, indirect or consequential damages arising out Fax: 32-16-351 697 of the sale, resale, use or misuse of the product.
