HL-1000 Operator's Manual
This operator manual has information for the HL-1000 machine plus optional upgrades.
Some illustrations and information may not pertain to your model.
The Missing Link that Transfers Work from Man to Machine.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HL-1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hardy HL-1000

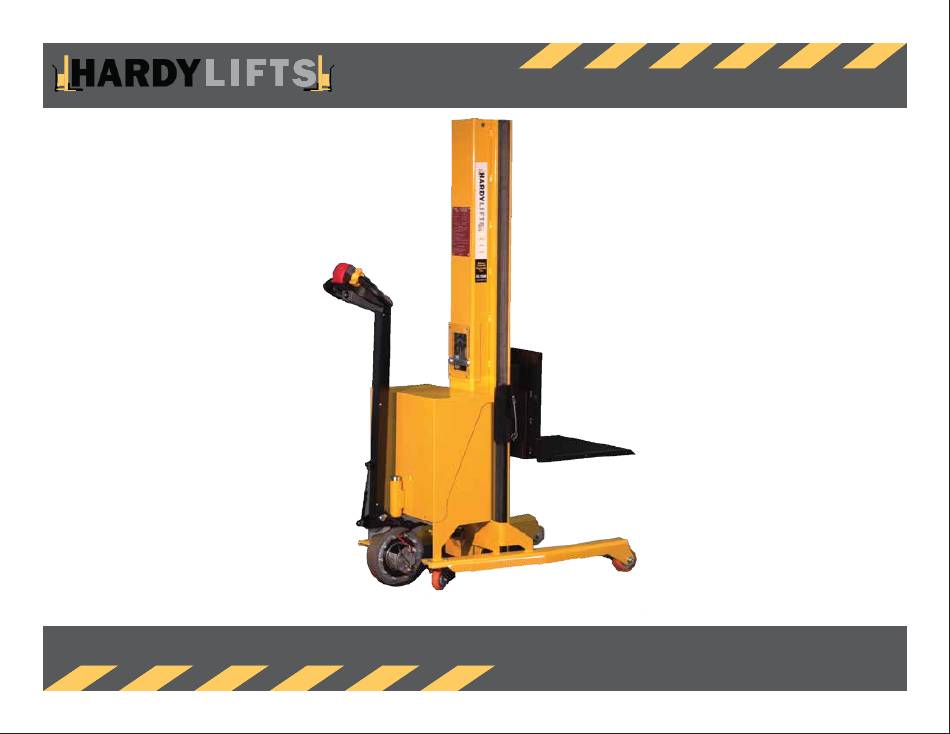

  • Page 1 HL-1000 Operator’s Manual This operator manual has information for the HL-1000 machine plus optional upgrades. Some illustrations and information may not pertain to your model. The Missing Link that Transfers Work from Man to Machine.

  • Page 2: Warning

    Follow their instructions on what to do next. Before removing your HL-1000 from the pallet, please carefully remove all banding, packing and shipping. 1 The Missing Link that Transfers Work from Man to Machine.

  • Page 3: Table Of Contents

    CONTENTS Warning Contents / What’s in it for You? HL-1000 HL-1000 Tiller Head WHAT’S IN IT FOR YOU? Vin Plate The better you understand your machine and how to use it, the better and safer operator you Power / Charging can be.
  • Page 4 HL-1000 HL-1000 PICKING POINT MAST VIN PLATE TILLER HEAD TILLER HANDLE ATTACHMENT BATTERY BOX COVER DRIVE WHEEL 3 The Missing Link that Transfers Work from Man to Machine.

  • Page 5: Hl-1000 Tiller Head

    INDICATOR RAISE/LOWER SPEED CONTROL Know the Hazards Before using the HL-1000 in the work area, practice driving it, without a load, in a safe area until you are comfortable with maneuvering the HL-1000. THROTTLE WHEEL Always be aware that this is equipment. Hands or...

  • Page 6: Vin Plate

    Know the Hazards The model of your machine. KNOW YOUR LOAD SERIAL Know your load. Do not exceed the capacity shown on the HL-1000’s VIN Plate. The serial number for your specific Make sure you do not overload machine or attachments. machine.

  • Page 7: Power / Charging

    POWER / CHARGING POWER - KEY SWITCH CHARGING Your key switch is located on the head at the base. Plug in the machine when not in use. The on-board trickle charger will keep the batteries from ‘over charging’. KEY IN UPRIGHT POSITION Machine is charged via the charge port on the side of the machine and a standard 120V wall outlet.

  • Page 8: Raising & Lowering / Steering

    Make sure to practice without a load, and in a safe area, before using for tasks. Always take caution when using on an uphill/downhill surface. The HL-1000 was not designed for inclines/declines and machine may shift, tip or handle differently.

  • Page 9: Driver's Safety

    DRIVER’S SAFETY DRIVE To drive the HL-1000, roll throttle wheel forward to go forward, roll throttle wheel back to reverse the machine. To stop the machine, let go of the throttle wheel. The rabbit will increase and the turtle will decrease your top speed respectively.

  • Page 10: Daily Safety Check

    HL-1000. If anything ever looks, or acts odd, please do not use the machine until it has been looked at and returned to service. Do not use the HL-1000 until you feel safe and secure in using it and are approved by your employer.

  • Page 11: Maintenance / Battery Box Cover

    MAINTENANCE / BATTERY BOX COVER MAINTENANCE BATTERY BOX COVER This manual come with a checklist for required maintenance, but always watch for items Inside the batery box cover is the hydraulic power unit, the full electrical system and the that may wear over time/usage. drive/rotate cards.

  • Page 12: General Info

    Usage outside of the intended purpose of the machine will void any warranty agreements with HardyLifts. LIFTING CAPACITIES The HL-1000 is designed to lift 1,000 lbs two inches (2”) off the mast. For lifting capacities of attachments, please refer to the attachments book.

  • Page 13: Daily Checklist

    HL-1000 Daily Checklist OPERATORS DAILY CHECKLIST WEEK BEGINNING ________________ 20____ SHIFT __________________ MODEL ______________ SERIAL _________________ This checklist is intended to be used before each workshift everyday. If a blank box is check, make notes on the bottom of this form. Do not use machine until checks have been completed and unit us put back into service.

  • Page 14: Maintenance Checklist

    HL-1000 Maintenance MAINTENANCE MODEL ________________________ SERIAL ___________________________ This checklist is intended to be used by authorized personel to perform maintenance. All items, even not on this list, should be checked periodically, and always follow-up on items with any issues. Extra boxes are provided so you can add your own items you wish to check regularly. *ALWAYS REFER TO MANUAL FOR ITEMS BEFORE DOING MAINTENANCE* Initial & date after service.

  • Page 15: Cut Sheets/Manuals

    CUT SHEETS / MANUALS CUT SHEETS/MANUALS Cut sheets and manuals may be found for the following parts: Hydro Pump Electrical Interconnect Please note that not all parts may apply to your vehicle *Cut sheets and additional manuals may be found attached to your Operators Manual thumbdrive* 14 The Missing Link that Transfers Work from Man to Machine.
  • Page 16 HYDRAULIC POWER UNIT...
  • Page 22 ELECTRICAL INTERCONNECT www.HardyLifts.com...
  • Page 23 www.HardyLifts.com...
