Summary of Contents for Ditto Singer

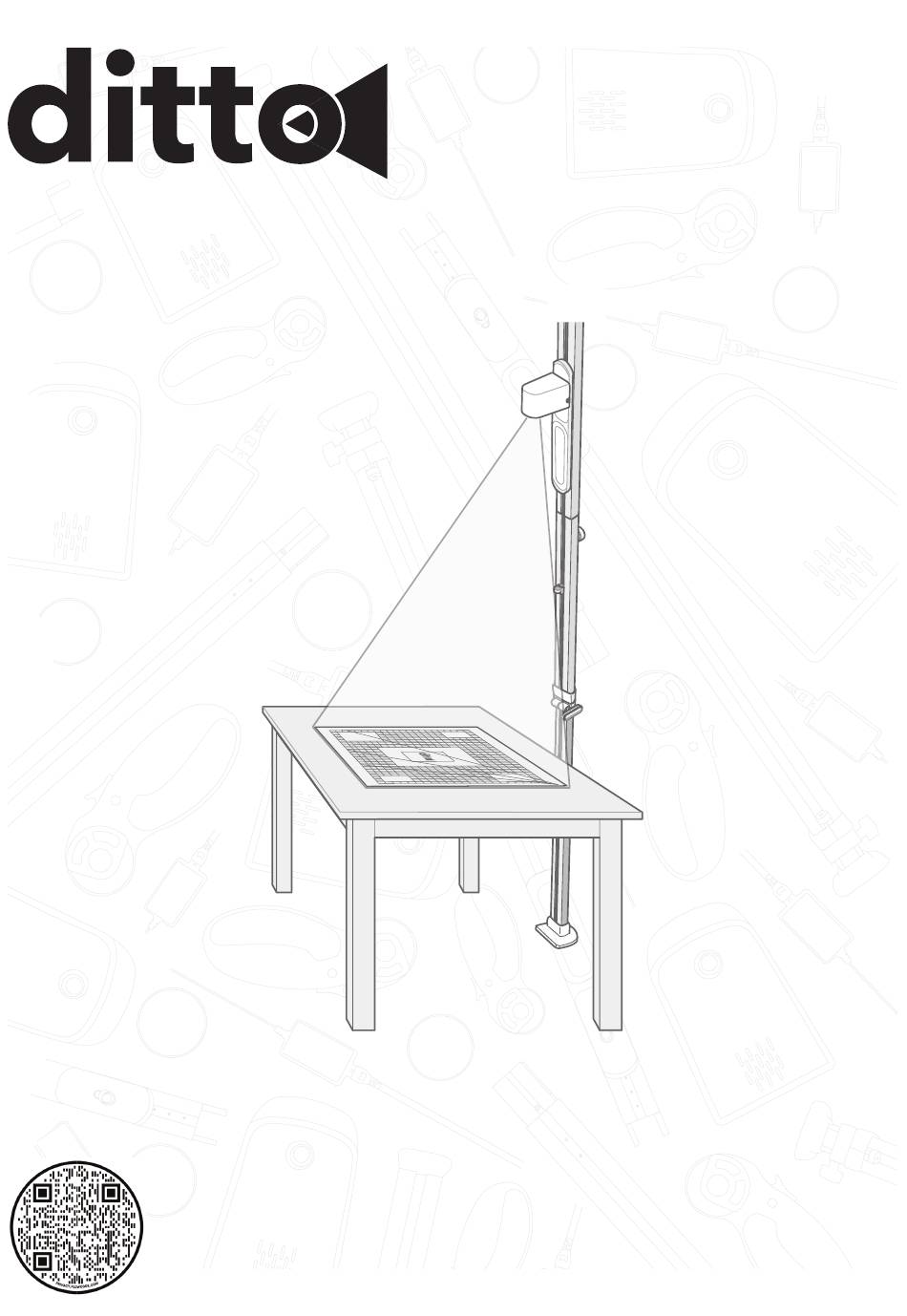

Page 1 Let’s get started! INSTRUCTION MANUAL Singer Ditto ® ™...
Page 2: Important Safety Instructions
IMPORTANT SAFETY • Never operate this product if it has a damaged cord or plug, if it is not working properly, if it has been INSTRUCTIONS dropped or damaged, or dropped into water. Return the product to the nearest authorized dealer or service center for examination, repair, electrical or General Safety Instructions mechanical adjustment.
Page 3: Table Of Contents
Note! Information that is necessary for a given To Connect to Ditto App ........8 situation. Ditto App – Home Screen Overview ..... 9 Ditto App – Start Menu Overview ......9 SAVE THESE INSTRUCTIONS Ditto App – Workspace Overview ......10 To Connect the Ditto System .......
Page 4: Product Overview
PRODUCT OVERVIEW Foot pad 6. Power cord and 10. Cord management 13. Lock knob adapter hook 2. Base knob 14. Projector carrier 7. Projector 11. Target stickers 3. Lower beam 15. Upper beam 8. Rotary cutter 12. Telescoping section of 4.
Page 5: Introduction
Before you Assemble the Product product is wirelessly connected to your mobile device Create an account at the Ditto web page on your using the Ditto app and will project the pattern of your computer. www.dittopatterns.com/signup choice. When registered and signed in on your computer,...
Page 6: To Assemble The Beam
To Assemble the Beam 8. Lean the beam against a wall. Put the foot pad on the floor approximately 1 ft. (30 cm) from the wall. Press and hold the clips on the sides of the bubble level. 2. Slide the bubble level into the tracks of the lower beam with the bubble facing the joint to the upper beam.
Page 7: To Attach The Projector
To Assemble the Cutting Mat Unfold the cutting mat. 2. Put the cutting mat on the work area with the Ditto logo facing away from the beam. Caution! The cutting mat must lay completely flat and fully on the work surface. Draping the...
Page 8: To Connect The Product
Have your room dimly lit so the projected outlines will be clearly visible. To Connect to Ditto App Log in to the Ditto app. Note! You will remain logged in until you actively sign out. Note! Make sure that the bubble in the bubble level remains centered while sliding the projector.
Page 9: Ditto App - Home Screen Overview
4. Link to DittoPatterns.com to download more patterns Note! The look of the Ditto app might vary depending on what mobile device and software release you are using. Ditto App – Start Menu Overview Information about the Ditto app, privacy policies and user terms.
Page 10: Ditto App - Workspace Overview
Ditto App – Workspace Overview Boat Neck Jumpsuit Pattern Pieces Reference Layout Garment Lining Interfacing Other 0/17 Reset Tutorial Sewing Instructions #8 Pants Back Cut 2 #7 Pants Front Cut 2 #1 Upper Center Front Cut 1 on fold #3 Upper...
Page 11: To Connect The Ditto System
• There are two ways to connect the Ditto System – through the app Settings (see “Home screen” below) or the Workspace. Home screen Pinch/Stretch Go to the Ditto app home screen.
Page 12: Workspace
Retry – Refer to steps 5-7 in “To Calibrate the taken down, if the beam is accidentally knocked out of Ditto System” place, or a different mobile device is used for the Ditto • Skip calibration – If you have already calibrated app.
Page 13: To Select A Pattern Piece
“Select all” if you want to select all pattern 3. Please wait while the pattern is being processed by pieces on the workspace. the Ditto system. This can take a few minutes. 2. Select “Clear” to remove selected pattern piece(s) 4. Access patterns pieces for different types of from the workspace.
Page 14: To Splice A Pattern Piece
Note! No other pattern pieces can be in the workspace at the same time as a spliced pattern piece. The spliced pattern pieces in the Ditto app are marked with a red arrow that indicates the direction of the splicing. The direction of the splicing can...
Page 15: To Mirror A Pattern
A sewing pattern that has two symmetrical sides can be up and turns freely. Note that the knob remains cut on the fold of your fabric. The Ditto app enables you connected to the beam. to convert a cut-on-fold pattern piece to a pattern for unfolded fabric.
Page 16: Maintenance
MAINTENANCE Warning! Read and understand the safety chapter before you do maintenance on the product. Warning! Disconnect the power plug from the power source before you do maintenance. To Clean the Product • Clean product with a clean and dry cloth. •...
Page 17: Troubleshooting And Faq
TROUBLESHOOTING AND FAQ Troubleshooting General Make sure to use the Ditto Solution problem system in a room with best possible Wi-Fi signal. Setup The Wi-Fi Move your work area to a room Make sure you fulfill all the connection is lost.
Page 18 The cutting mat must be Make sure that the full cutting positioned accurately with the mat, with the calibration logo legible from the opposite projection over top, is captured side of the beam. The mat in the photograph before must be fully on the table and submitting.
Page 19: Frequently Asked Questions
I don’t want to continue receiving all the pop- Yes. Turn off notifications in Settings on the Ditto app. Settings is up notifications in the Ditto app. Can I turn located in menu bar at the top right corner on the home screen.
Page 20: Certification Requirements
CERTIFICATION REQUIREMENTS Federal Communication Commission Interference Statement For the US and Canada Responsible Singer Sourcing Limited LLC party: 1714 Heil Quaker Boulevard, Suite 130, LaVergne, TN 37086 Product name: Singer Ditto™ ® This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 21: Intellectual Property
INTELLECTUAL PROPERTY Singer, and the Cameo “S” Design, are exclusive trademarks of The Singer Company Limited S.à.r.l. or its Affiliates. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, inc.
Page 26 English • ©2022 The Singer Company Limited S.à.r.l. or its Affiliates. • All rights reserved • Printed on environment friendly paper Permission is hereby granted to the licensee of the software to which this guide is related to reproduce and distribute copies of this guide for nonprofit educational purposes.
