Summary of Contents for Qomolangma FMJ-3300-WL

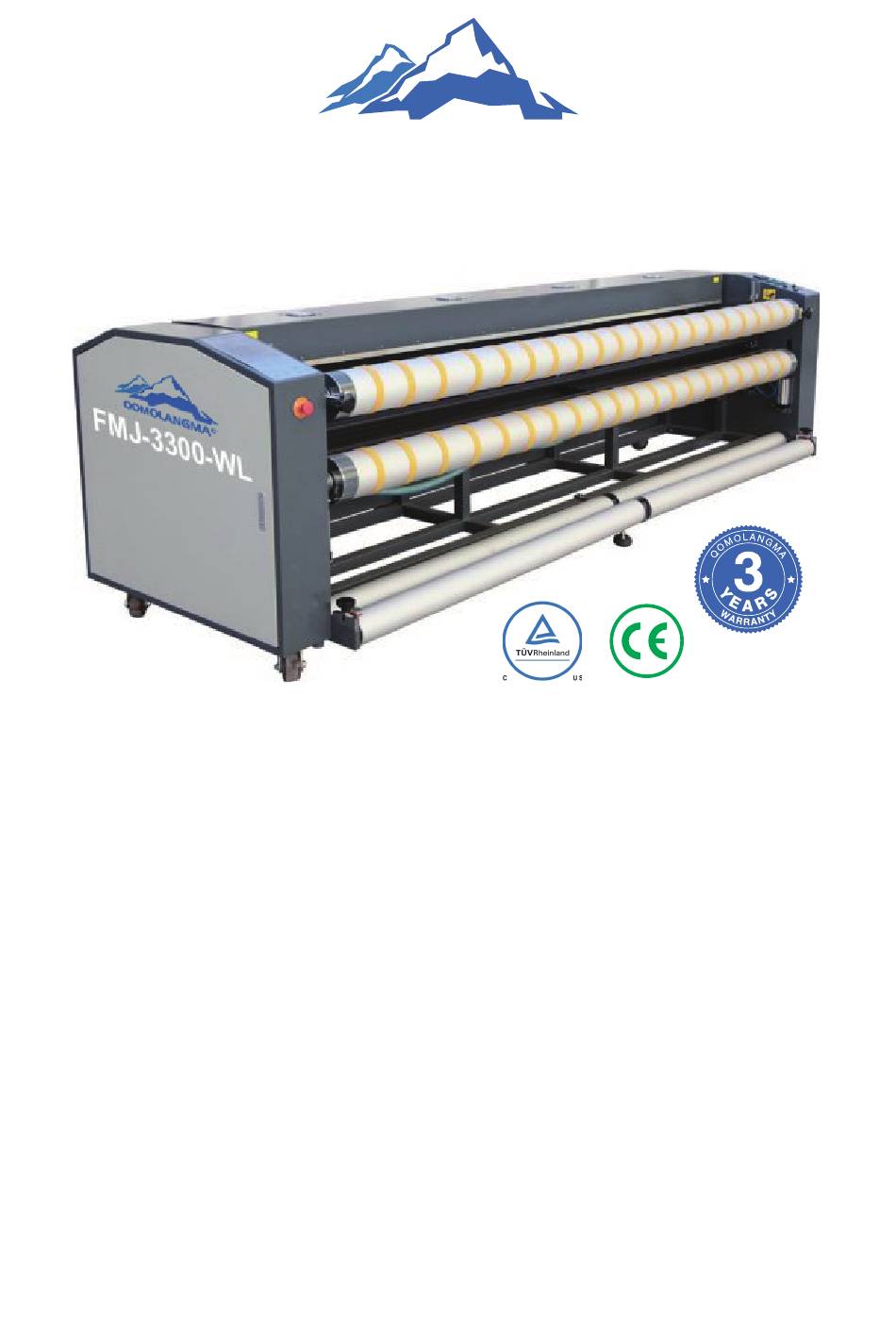

- Page 1 QoMoLAnGMA LIQuId coAtInG MAcHInE ® FMJ - 33 00- WL user Manual Please read this manual carefully before operat ion...
- Page 2 Choosing this liquid laminator and liquid film with high quality, you will get a first-level advert isement picture and benefit from it greatly. Before operat ing FMJ-3300-WL liquid laminator, please read the instruct ion carefully in order to operate correctly the machine. Our company will also provide free-charge training for operator.
- Page 3 Ⅱ. data Sheet Model FMJ-3300-WL Max. Coat ing Width 3200mm (126in) Max. Laminat ing Thickness 32 microns Max. Laminat ing Speed 0.5m - 1.5m (19.685in - 59in) / min Laminat ing Temperature 100°C - 120°C (212°F - 248°F) Max. Heat ing Temperature 150°C (302°F)
- Page 4 Fig. 2 (Back View) Photograph Illumination 1. Power wire 2. Main switch 3. Right side frame 4. Drying box 5.Guiding roller 6. Roller for collect ing picture 7. Cooler 8. Left side frame 9. Emergency switch 10. joint inlet for air compressor 11.
- Page 5 Heater Control Switch: Press lower posit ion of the switch to heat with the 2 drying boxes, at same t ime the fan in the drying boxes begin to work; press upper posit ion of the button to heat with the right drying box; Press “OFF” in middle of the button will stop heat ing.
- Page 6 This will make the thickness of laminat ing film under 0.01mm and obtain opt imum laminat ing speed. FMJ-3300-WL Liquid Laminator Process Liquid film supply: Press the switch for the liquid pump. Turn on the four valves supplying liquid. Liquid will flow out.
- Page 7 Emergency button ① If the temperature is found too high (this may cause burning the picture), and without t ime to change the temperature sett ing value, you can lift up the drying boxes to avoid from burning the picture. ②...
- Page 8 Check regularly whether each rotat ing components running well. In some condit ions, it is needed to dismount ing for cleaning and coat ing lubricat ing grease. The water retained in air compressor system of this machine (in right side) shall be cleaned out regularly.
-
Page 9: Warranty Card
WArrAnty cArd ModEL Lot # BuyEr dAtE SELLEr notes The warranty card should be filled by seller and kept by buyer. Alterat ions are prohibited. The guarantee period is one year, and will be charged with material and labor cost after 24 months. iii.
