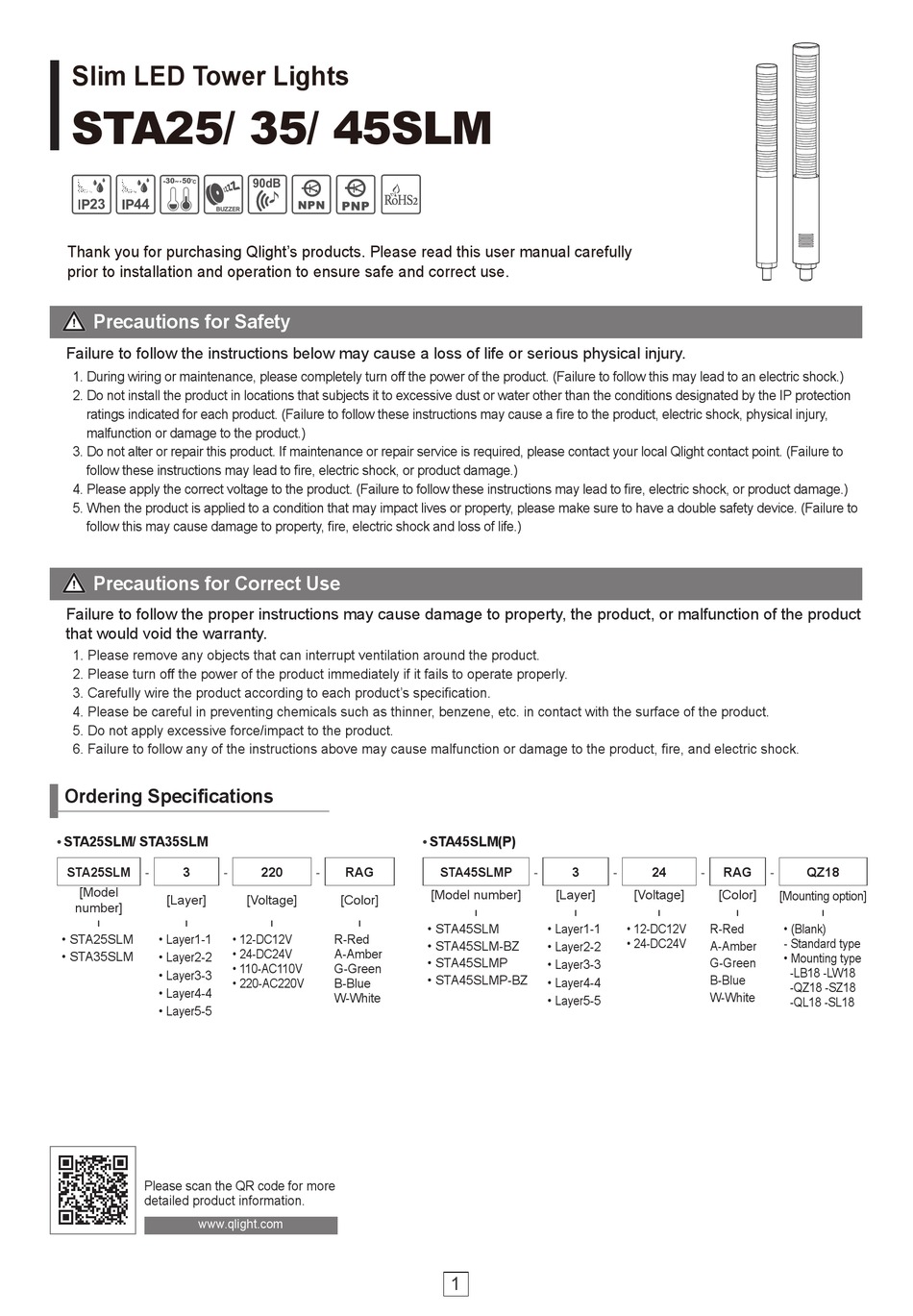

Slim LED Tower Lights
STA25/ 35/ 45SLM
30
50
23
44
Thank you for purchasing Qlight's products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.

Precautions for Safety

Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. During wiring or maintenance, please completely turn off the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a fire to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
follow these instructions may lead to fire, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to fire, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
follow this may cause damage to property, fire, electric shock and loss of life.)

Precautions for Correct Use

Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the product
that would void the warranty.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn off the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product's specification.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
6. Failure to follow any of the instructions above may cause malfunction or damage to the product, fire, and electric shock.

Ordering Specifications

STA25SLM/ STA35SLM
STA25SLM
-
3
-
[Model
[Layer]
number]
|
|
• STA25SLM
• Layer1-1
• STA35SLM
• Layer2-2
• Layer3-3
• Layer4-4
• Layer5-5
Please scan the QR code for more
detailed product information.
www.qlight.com
90dB
220
-
RAG
[Voltage]
[Color]
|
|
• 12-DC12V
R-Red
• 24-DC24V
A-Amber
• 110-AC110V
G-Green
• 220-AC220V
B-Blue
W-White
STA45SLM(P)
STA45SLMP
-
3
[Model number]
[Layer]
|
|
• STA45SLM
• Layer1-1
• STA45SLM-BZ
• Layer2-2
• STA45SLMP
• Layer3-3
• STA45SLMP-BZ
• Layer4-4
• Layer5-5
1
-
24
-
RAG
-
[Voltage]
[Color]
[Mounting option]
|
|
• 12-DC12V
R-Red
• (Blank)
• 24-DC24V
- Standard type
A-Amber
• Mounting type
G-Green
B-Blue
W-White
QZ18
|
-LB18 -LW18
-QZ18 -SZ18
-QL18 -SL18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STA25SLM and is the answer not in the manual?

Questions and answers

Summary of Contents for Qlight STA25SLM

  • Page 1 3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to follow these instructions may lead to fire, electric shock, or product damage.) 4.
  • Page 2 Product Specifications STA25SLM STA35SLM • • Model Model Layer Voltage Current Certificate Weight Color Layer Voltage Current Certificate Weight Color number number AC/DC12V 0.080A AC/DC12V 0.100A AC/DC24V 0.040A AC/DC24V 0.050A 0.19kg R-Red 0.38kg R-Red AC110V 0.020A AC110V 0.020A AC220V 0.020A AC220V 0.020A...
  • Page 3 Dimensions (Units : mm) STA25SLM STA45SLM STA45SLM-BZ Ø25 Ø45 LAYER LAYER M23x 2.5 THREAD M20 x 2.5 THREAD STA35SLM STA45SLMP STA45SLMP-BZ Ø35 Ø45 LAYER LAYER M20 x 2.5 THREAD Ø18 M18x 1.5 THREAD...
  • Page 4 Wiring Instructions • STA25SLM, STA35SLM, STA45SLM(P) can be wired by using both external contact and transistor. • In case of wiring by transistor, please make sure if it is NPN type or PNP type. Please carefully follow wiring instruction below.
  • Page 5 • If the product is installed in locations that subject it to excessive dust or water other than the designated IP protection rating indicated, it may cause malfunction or damage to the product. • For further information, please visit our website (www.qlight.com).
  • Page 6 Mounting Accessories (Sold Separately) • Please refer to the dimensions below for installation of mounting brackets ■ STA45SLMP - Pole Mounting Type Model Dimensions STA45SLMP Ø18 Ø18 M18x1.5 THREAD 2-Ø8.5 HOLES 18mm SCREW & NUT LB18 4-Ø5 HOLES Ø18 Ø28 Ø18 4-Ø5 HOLES 1/2"...
  • Page 7 Product installation direction ■ Install the product in accordance with the manual. Otherwise rainwater or moisture may penetrate into the product. ㆍBEACON/SIGNALING LIGHT ※ For products with a protection rating of less than IPX4, please install it vertically. Power cord inlet part shall not be facing the sky. ㆍ...
  • Page 8 Factory | 185-25, Mukbang-ro, Sangdong-myeon, Gimhae-si, Gyeongsangnamdo, Korea Tel. +82-55-328-1111(Toll free. +82-80-328-1111) Qlight OverSEAs Sales Dept | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel : +82-51-620-4100 Qlight Public Relations & Marketing Team Office | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel. +82-51-245-0017 Qlight USA, Inc. www.qlight.com www.qlightusa.com | sales@qlightusa.com 3003 North First Street, Suite #341, San Jose, CA 95134 USA Tel.
