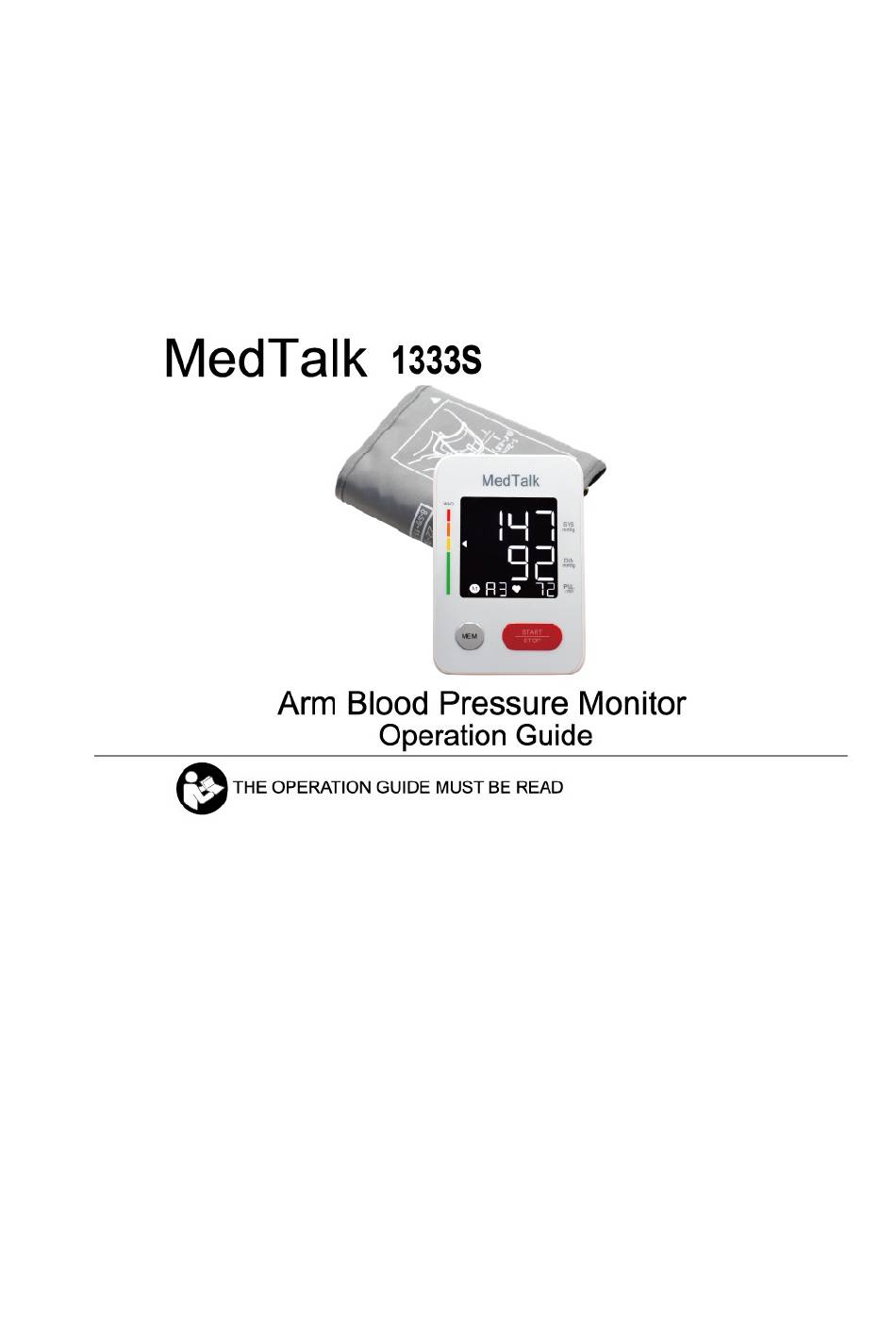

MODEL 1333S Arm Blood Pressure Monitor (ELECTRONIC SPHYGMOMANOMETER) OPERATION GUIDE __________________________________________________________________________ INDEX IMPORTANT INFORMATION ................. 1 CONTENTS AND DISPLAY INDICATORS ............. 1 INTENDED USE ....................2 PACKAGE CONTENTS .................. 2 CONTRAINDICATION ..................2 PRODUCT DESCRIPTION ................2 SPECIFICATIONS ................... 3 NOTICE ...................... -
Page 3: Important Information
IMPORTANT INFORMATION NORMAL BLOOD PRESSURE FLUCTUATION All physical activity, excitement, stress, eating, drinking, smoking, body posture and many other activities or factors (including taking a blood pressure measurement) will influence blood pressure value. Because of this, it is mostly unusual to obtain identical multiple blood pressure readings. -
Page 4: Intended Use
INTENDED USE Fully Automatic Electronic Sphygmomanometer is for use by medical professionals or at home and is a non-invasive blood pressure measurement system intended to measure the diastolic and systolic blood pressures and pulse rate of an adult individual by using a non-invasive technique in which an inflatable cuff is wrapped around the upper arm. -
Page 5: Specifications
SPECIFICATIONS 1. Product name: Arm Blood Pressure Monitor 2. Model: 1333S 3. Classification: Internally powered,Class II,Type BF applied part,IP21,No AP or APG,Continuous operation 4. Machine size: Approx.139.4mm×93.8mm×41.8mm( 5 1/2″x 3 11/16″x 1 21/32″) 5. Cuff circumference:22cm-30cm(8 21/32 ″ - 11 13/16 ″ ), 30cm-42cm(11 13/16 ″ -16 17/32″)(Optional),42cm-48cm(16 17/32″- 18 29/32″)(Optional),22cm-36cm(8 21/32″-... - Page 6 6. Please always relax at least 1 or 1.5 minutes between measurements to allow the blood circulation in your arm to recover. Prolonged over-inflation (cuff pressure exceed 300 mmHg or maintained above15 mmHg for longer than 3 minutes) of the bladder may cause ecchymoma of your arm.
- Page 7 17. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 8: Setup And Operating Procedures
SETUP AND OPERATING PROCEDURES 1. BATTERY LOADING AND AC ADAPTER LOADING a. Open battery cover at the back of the monitor. b. Load four “AA” size batteries. Make sure the batteries are inserted according to the positive and negative marks("+"and"-") printed in the battery housing. c. -
Page 9: Voice Setting
button “ MEM ” can change time format. Press the button “ START ” repeatedly, the year, month, day, hour and minute will blink in turn. While the number is blinking, press the button “MEM” to increase the number. Keep on pressing the button "MEM", the number will increase fast. -
Page 10: Applying The Cuff
Avoid compression or restriction of the connection tubing during measurement， which may cause inflation error, or harmful injury due to continuous cuff pressure. APPLYING THE CUFF Pulling the cuff end through the medal loop (the cuff is packaged like this already), turn it outward (away from your body) and tighten it and close the Velcro fastener.See picture5-1. -
Page 11: Taking Your Blood Pressure Reading
a. Be seated with your feet flat on the floor, and don’t cross your legs. b. Place palm upside in front of you on a flat surface such as a desk or table. c. The middle of the cuff should be at the level of the right atrium of the heart. Lying Down Measurement a. -
Page 12: Displaying Stored Results
8. DISPLAYING STORED RESULTS Picture 8-1 Picture 8-2 Picture 8-3 Picture 8-4 Picture 8-5 Picture 8-6 Picture 8-7 In Standby Mode,press “MEM” button to display the stored results. The current memory bank and the amount of results in this bank will be displayed. Press “START”... -
Page 13: Deleting Measurements From The Memory
9. DELETING MEASUREMENTS FROM THE MEMORY When any result is displaying, keeping on pressing button “MEM” for three seconds, all results will be deleted. Press the button “MEM” or “START”, the monitor will turn off. Picture 9-1 Picture 9-2 10. ASSESSING HIGH BLOOD PRESSURE FOR ADULTS The following guidelines for assessing high blood pressure (without regard to age or gender) have been established by the World Health Organization (WHO). -
Page 14: Troubleshooting (1)
12. TROUBLESHOOTING (1) PROBLEM POSSIBLE CAUSE SOLUTION The cuff position was not Apply the cuff correctly and correct or it was not properly try again tightened Review the “BODY POSTURE DURING Body posture was not correct MEASUREMENT” sections during testing of the instructions and LCD Display shows re-test. - Page 15 LCD shows Device parameter checking error “Er 8” LCD shows Pressure sensor parameter error “Er A” Incorrect operation or strong Take out batteries for five minutes, response electromagnetic interference. and then reinstall all batteries. when you press button or load battery.
-
Page 16: Maintenance
MAINTENANCE Do not drop this monitor or subject it to strong impact. Avoid high temperature and solarization. Do not immerse the monitor in water as this will result in damage to the monitor. If this monitor is stored near freezing, allow it to acclimate to room temperature before use. -
Page 17: Warranty Information
Symbol for “ENVIRONMENT PROTECTION – Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local Authority or retailer for recycling advice”. Symbol for “MANUFACTURER” Symbol for “COMPILES WITH MDD93/42/EEC REQUIREMENTS” Symbol for “DATE OF MANUFACTURE”... - Page 18 ELECTROMAGNETIC COMPATIBILITY INFORMATION Table 1 - Emission Phenomenon Compliance Electromagnetic environment RF emissions CISPR 11 Home healthcare environment Group 1, Class Harmonic IEC 61000-3-2 Home healthcare environment distortion Class A Voltage IEC 61000-3-3 Home healthcare environment fluctuations and Compliance flicker Table 2 - Enclosure Port Phenomenon Basic EMC...
- Page 19 800-960 Pulse modulation 18Hz, 28V/m 1720 1700-1990 Pulse modulation 217Hz, 28V/m 1845 1970 2450 2400-2570 Pulse modulation 217Hz, 28V/m 5240 5100-5800 Pulse modulation 217Hz, 9V/m 5500 5785 Table 4 – Input a.c. power Port Phenomenon Basic EMC Immunity test levels standard Home Healthcare Environment Electrical fast...
