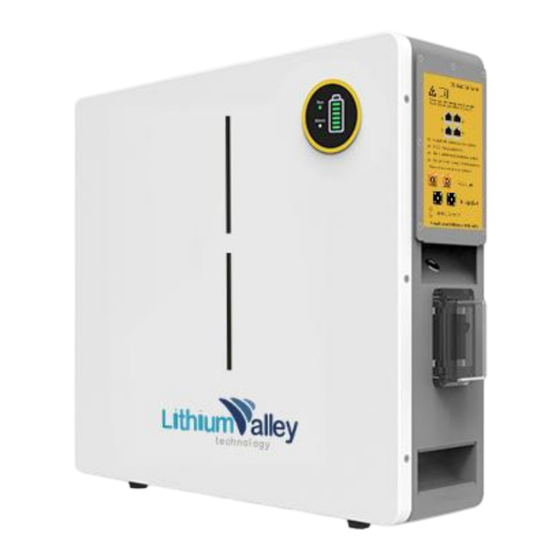

Lithium Valley LV-BAT-W5.12Ac Operation Manual

Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual
LV-BAT-W5.12Ac
LV-BAT-W5.12Ac
Operation Manual
CONTENTS
1.
2.
1.
2.
3.
4.
1.
1.
2.
2.
3.
1.
2.
4.
1.
2.
4.1
4.2
1-2
3
3
4
4
5
6
6
7
7
7
7-8
9
9
9
9
10
10
10
11-14
15
15
16

Advertisement

Table of Contents
loading

Related Manuals for Lithium Valley LV-BAT-W5.12Ac

Summary of Contents for Lithium Valley LV-BAT-W5.12Ac

  • Page 1: Table Of Contents

    LV-BAT-W5.12Ac Operation Manual CONTENTS 1 Technical Data 2 Product Overview Brief Introduction Interface Introduction Switch ON/OFF LED Indicator Definition CAN / RS485 Port RS232 Port 3 Installation Guide Checking Before Installation Checking Outer Packing Materials Checking Deliverables Tools Installation requirements...

  • Page 2: Technical Data

    Performance Nominal Voltage 51.2 Vdc TECHNICAL DATA Nominal Capacity 100Ah Battery Energy 5120 Wh Charge Voltage 55.68~56.16Vdc Discharge Voltage 45.6-56.16 Vdc NOTE Nominal Charge/Discharge Current Operating current derating according to Nominal Charge/Discharge Power 5000W cell voltage and battery temperature. Max Charge / Discharge Current 100A Max Charge / Discharge Power 5000W...

  • Page 3: Product Overview

    For multiple LV-BAT-W5.12Ac in parallel, switch ON rocker switch on all batteries, long discharge state and balance state. press (more than 3 seconds) ON/OFF button of MASTER battery, LED will flash, battery system will automatically encode and assign ID to each slave battery, then Multiple LV-BAT-W5.12Ac can be connected in parallel to expand capacity and...

  • Page 4: Led Indicator Definition

    Discharge master pack will shut down after all slave packs shut down(Sleep mode) . Battery Level Indicator For single LV-BAT-W5.12Ac, switch OFF rocker switch (near positive/negative connector). For multiple LV-BAT-W5.12Ac in parallel, switch OFF rocker switch on Light Light Light MASTER battery first.

  • Page 5: Installation Guide

    C a r to n S u p p o r t i n g structure W al l b r ac k et INSTALLATION Pearl w o o l GUIDE B at t er y Pearl w o o l Installation flow chart H a n g i n g b r ac k et Check Before...

  • Page 6: Tools

    3.2 Tools 3.4 Installation Instructions 3.4.1 Dimensions Model Tools Knife Measuring tape Socket wrench （10/16mm） Installation Rubber mallet Cross Screwdriver Hammer drill（8mm） ESD gloves Safety goggles Anti-dust respirator Protection Safety shoes Minimum mounting distance between battery pack and equipment: 3.3 Installation requirements 3.3.1 Installation environment requirements •...

  • Page 7: Installation Procedure 11-14

    STEP 3 3.4.2 Installation Procedure Hang LV-BAT-W5.12Ac on the wall bracket and tighten it STEP 1 Drill the hole with an 10mm drill bit as follows and fix the wall bracket to the wall. Fastening plater(M4*20) STEP 2 STEP 4 Install the hanging bracket.
  • Page 8 STEP 5 STEP 7 When multiple batteries are connected in parallel, follow the following wiring mode. Connect power cable. MASTER SLAVE to PCS CAN port to PCS B- to PCS B+ to PCS B+ to PCS B- to PCS CAN port STEP 6 Connect communication cable.

  • Page 9: Maintenance

    MAINTENANCE Recharge Requirements When Over Discharged 4.1 Recharge Requirements During Normal Storage Battery should be stored in an environment with temperature range between -10°C ~+45°C, Over discharged (90% DOD) battery should be recharged according to following and maintained regularly according to following table with 0.5C (25A) current till 40% SOC table, otherwise over discharged battery will be damaged.
