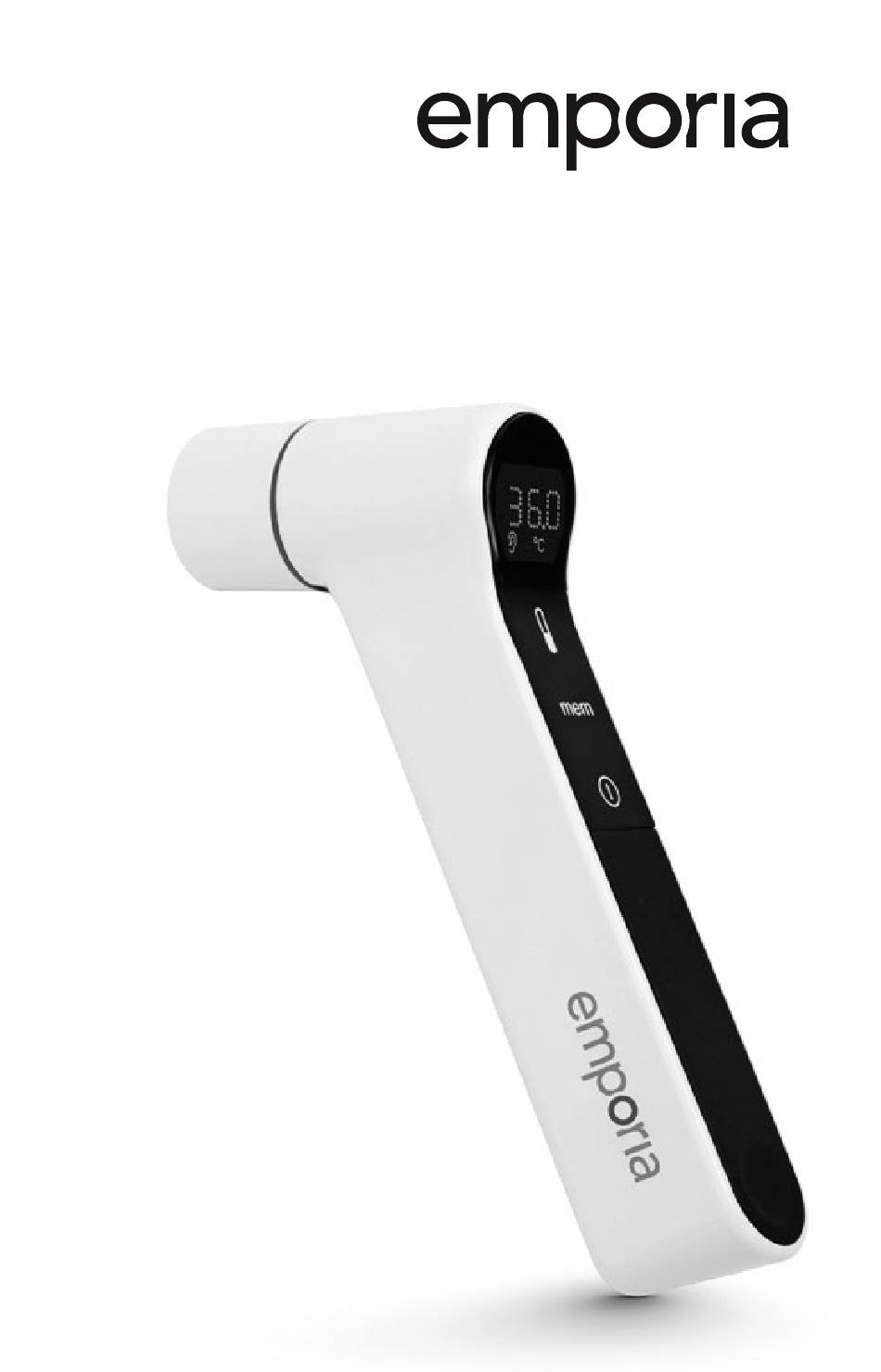

Page 1 INFRARED THERMOMETER Contactless temperature measurement QUICK-START GUIDE...
Page 2 WELCOME Thank you for choosing the Emporia ›Infrared thermometer‹. To use this product properly, please read the instructions and safety precautions carefully before use. Scope of delivery · Infrared thermometer · 2 × 1.5 V AAA batteries · Quickstart Guide >...
Page 3: Table Of Contents
TABLE OF CONTENTS Product introduction ............04 · Intended use · Scope of application · Features About body temperature ............ 05 · The human body temperature Device description ..............06 Battery installation ..............07 · Insufficient voltage warning Settings ..................08 ·...
Page 4: 04 Product Introduction
04 PRODUCT INTRODUCTION Intended use Infrared Forehead Thermometer intended to measure human body temperature by measuring ear canal or forehead. Scope of application It is suitable for displaying the body temperature of the measured object by measuring the heat radiation in the ear canal or forehead.
Page 5: About Body Temperature
ABOUT BODY TEMPERATURE Depending on the measurement method used, different values are obtained. Therefore, the WHO provides refer- ence values for the ›normal‹ human body temperature. Measurement methods Normal body temperature Anal temperature: 36.6 ~ 38°C Oral temperature: 35.5 ~ 37.5°C Axillary temperature: 34.7 ~ 37.3°C Cochlear temperature:...
Page 6: Device Description
DEVICE DESCRIPTION 01 Head cover 02 Probe 03 Display (screen) 04 Measurement button 05 Memory button 06 Power button (main switch) 07 Battery cover Memory storage Sound on Battery indicator Messurement result Ear temperature messurement Forehead temperature messurement Temperature unit (C = celsius, F = fahrenheit) Objects messurement...
Page 7: Battery Installation
BATTERY INSTALLATION The procedure Press the indentation at the bottom of the battery cover, it should automatically spring open. To remove inserted batteries, press firmly on the upper end of the battery › – ‹. Insert two 1.5 V AAA batteries. Pay attention to the polarity. Insufficient voltage warning If the battery voltage is insufficient, the LCD display will show ›...
Page 8: Settings
SETTINGS Sound function: switch on/off Press the Memory button when the unit is switched on to switch the sound on or off. The screen shows icon, i.e. the sound is switched on, a short beep sounds to confirm. Press the Memory button again, the icon disappears, i.e.
Page 9: Temperature Measurement
TEMPERATURE MEASUREMENT Measuring the ear temperature Remove the Head cover. Press the Power button to switch on. · The display shows the last measured value. · The icon appears on the display. Carefully insert the thermometer into your ear canal and press the Measurement button.
Page 10: 10 Appendix
10 APPENDIX Frequently asked questions Display Reasons Solutions If the temperature of the If the sensor is not properly target object is higher than the placed in the ear canal or the measuring range (higher than measurement distance is too 43°C for the ear), the display far during measurement, the shows ›HI‹.
Page 11: Troubleshooting
APPENDIX Troubleshooting Problems Reasons Solutions There is no display when The battery is empty. Replace the batteries. the unit is switched on. The polarity of the The polarity of the batteries is wrong. batteries corresponds to that in the battery compartment.
Page 12: Service Centre
· This guarantee applies to new devices purchased in the European Union. The guarantor is emporia telecom GmbH + CoKG, Industriezeile 36, A-4020 Linz. · New devices and their components that show a defect due to manufac- turing and/or material faults within 12 months of purchase will be replaced...
Page 13: Conditions Of Use
APPENDIX Precautions · Depending on the activated mode, the device measures only the body temperature or the surface of objects. · Ask your doctor to explain the measured value of your body temperature. · Do not use the device for any purpose other than taking body temperature. ·...
Page 14 APPENDIX Proper use 1. It can be dangerous for patients to make treatment decisions based on measurement results; please follow the doctor's instructions. · Independent decisions by the patient could lead to a worsening of the condition. 2. Do not touch the infrared sensor with your hands or blow air on it with your mouth.
Page 15 APPENDIX Caution 1. Do not use this product on people suffering from external inflammation of the ear canals, otitis media or any other ear condition. · It would be possible to cause an aggravation by doing so. 2. Do not use this product immediately after swimming, bathing or if there is water in the ear.
Page 16: Technical Data
APPENDIX Technical data · Model: EMP-THERMO-22 (PG-IRT1603) · Dimension: 31 × 175 × 72 mm · Weight: approx. 77 g (without batteries) · Measuring range: 34°- 43° C (93.2-109.4° F) · Object temperature: 0°- 93.2° C (32-199.7° F) · Resolution ratio: 0.1°...
Page 17: Declaration Of Conformity
Shenzhen Pango Medical Electronics Co., Ltd; No.25 1st Industry Zone, Fenghuang Road, Xikeng Village, Henggang Town, Longgang District, Shenzhen, 518115 Guang- dong, P. R. CHINA Importer: EMPORIA Telecom GmbH & Co. KG Industriezeile 36 · 4020 Linz · Austria Website: www.emporia.eu Model: EMP-THERMO-22 (PG-IRT1603)
Page 18: Manufacturer Directive And Declaration
APPENDIX Manufacturer directive and declaration > Electromagnetic emission This infrared thermometer (EMP-THERMO-22) can be used in an electro- magnetic environment specified below. The customer or user must ensure that the product is used in the appropriate environment. Electromagnetic Directive Compliance Environment –...
Page 19 APPENDIX > Electromagnetic immunity This infrared thermometer (EMP-THERMO-22) can be used in an electro- magnetic environment specified below. The customer or user must ensure that the product is used in the appropriate environment. Test level Electromagnetic Compliance Immunity test IEC 60601 environment –...
Page 20 APPENDIX Recommended distance: d = [ ∕ ]√P d = [ ∕ ]√P 80-800 MHz d = [ ∕ ]√P 800 MHz-2.7 GHz If P is the maximum emitted energy of the transmitter in watts (W) specified by the manu- facturer, then d is the recommended distance in Radiated RF...
Page 21 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength at the location where the Infrared Thermometer (EMP-THERMO-22) is used exceeds the RF compliance levels specified above, the Model EMP-THERMO-22 (PG-IRT1603) should be observed to verify normal operation. If abnormal operation is observed, additional measures may be necessary, such as realignment or relocation of the model EMP-THERMO-22 (PG-IRT1603).
Page 22 APPENDIX > Recommended distances This Infrared Thermometer (EMP-THERMO-22) is intended for use in an electromagnetic environment where RF interference is controlled. The customer or user can help avoid electromagnetic interference by maintaining a minimum distance between the portable and mobile RF...
Page 23 APPENDIX Importer: Emporia Telecom GmbH & Co KG Industrizeile 36 · 4020 Linz · AUSTRIA EC-Representative: Lotus NL B.V. Koningin Julianaplein 10, 1e Verd, 2595AA,The Hague, NETHERLANDS Manufactur: Shenzhen Pango Medical Electronics Co., Ltd No.25 1 Industry Zone, Fenghuang Road,...
Page 24 FR Vous trouverez ici le mode d'emploi dans d'autres langues : Le istruzioni per l'uso in altre lingue sono disponibili qui: NL Gebruiksaanwijzingen in andere talen vindt u hier: https://www.emporiamobile.com/ manual/emp-thermo-22 EMPORIA Telecom Industriezeile 36 GmbH & Co. KG 4020 Linz · Austria customercare@emporia.at www.emporia.eu...
