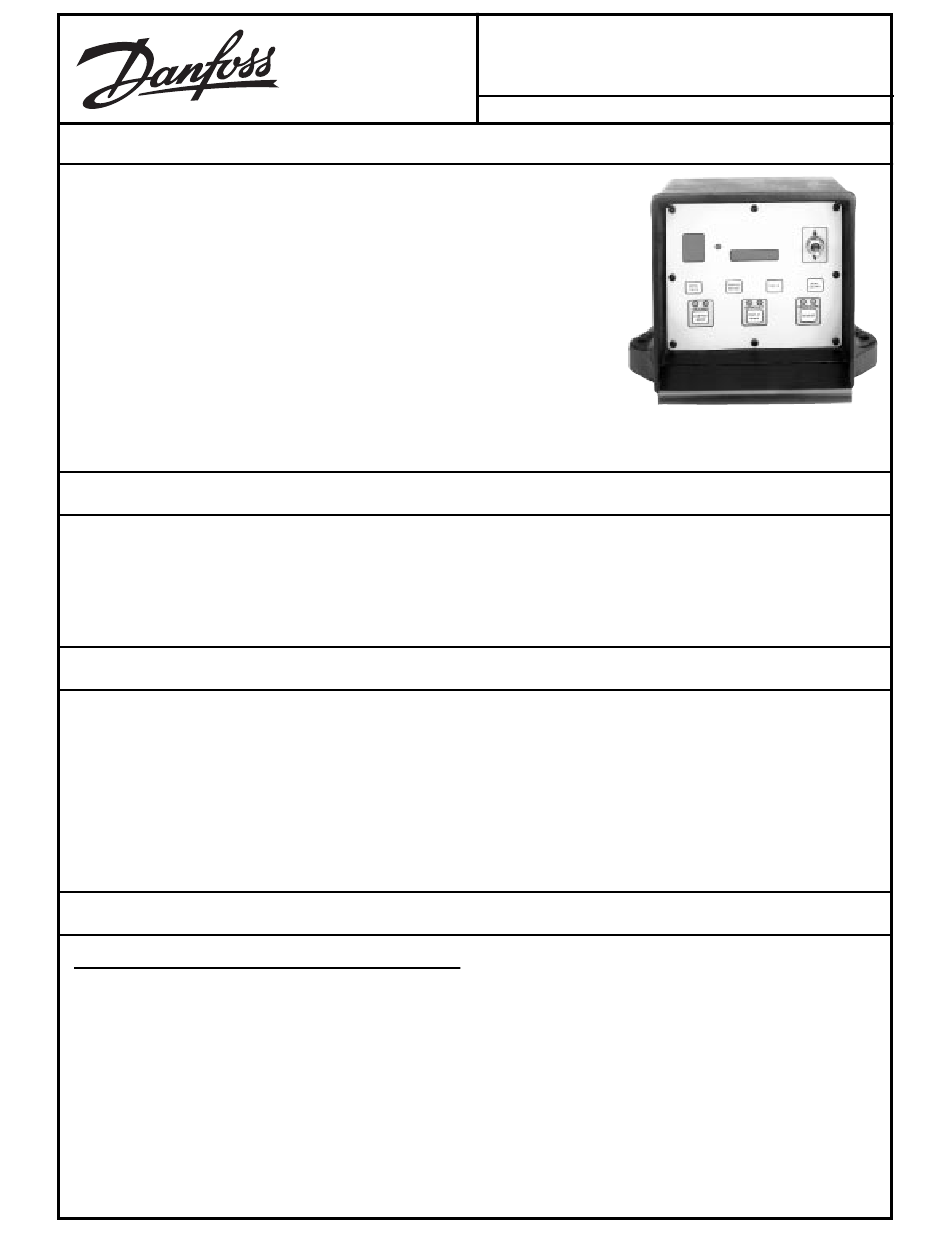

Danfoss KGS Quick Start Manual

DESCRIPTION
The Road Sentry console is a microprocessor-based controller with inputs and
outputs suitable for grade and slope machine positioning systems. The operator
interface has switches and displays to allow users to set up, operate and configure
the console as well as provide continuous operating information.
When used in the Road Sentry control system, the KGS positions both sides of a
paving or planing machine to achieve a controlled, flat road surface. Automatic
positioning is possible by measuring a grade reference and/or a gravity (slope)
reference. Manual operator positioning of either side is also possible.
The KGS console may be configured for different machine types and operating
preferences using a hidden access feature. The configuration variables may be
accessed with switch inputs for field adjustment or pre-set at the factory per customer
specification.
The console is intended to be permanently mounted and wired. There is a built-in motion switch to activate the valve drives.
It is equipped with a timer which may be actuated by a switch or a speed pickup.
SYSTEM CONFIGURATION
The Road Sentry system consists of one KGS operator
console for each side of the machine, one MCX104A Slope
Sensor, which may be used by either side, and one or two
grade sensors for one or both sides. See the Road Sentry
System Configuration Diagram. The grade sensors may be
a MCX103 rotary wand and shoe type, or a non-contacting
FEATURES
• Interchangeable wand or ultrasonic grade sensors
• Easy setup and improved information available to op-
erator
• High intensity LED displays
• CAN network for communication with other controllers
and ultrasonic sensors
• Cast aluminum package with built-in vandal cover
ORDERING INFORMATION
RELATED PRODUCTS AND ACCESSORIES
1. KUS ULTRASONIC SENSOR
A remote mounted non-contacting grade sensor com-
patible with the Road Sentry Console. See Bulletin
95-9053.
2. MCX103A1110 WAND SENSOR
A remote mounted wand and shoe sensor, plug compat-
ible with the KUS Ultrasonic Sensor. See Bulletin 95-8991.
3. MCX104A1018 SLOPE SENSOR
A remote mounted slope sensor compatible with the
Road Sentry Console. See Bulletin 95-8996.
© Danfoss, 2013-09
KGS
Road Sentry Console
BLN-95-9055
KUS ultrasonic type. There is an option for a front-rear dual
slope sensor configuration using two MCX104A sensors.
The virtual position of the sensor input to the controller may
be adjusted at the controller.
• Drives KVF Servovalves, on/off valves or proportional
solenoid valves
• Fault recognition with diagnostics
• Full electrical and environmental protection
• Fewer electrical accessories and reduced machine wiring
possible
4. KW01031
Coil cord for use with the KUS or MCX103A1110. Two
foot retracted to 10 foot extended. 14-pin straight MS
connector on one end and 10-pin straight MS connector
on the other.
5. KW01037
Coil cord for use with KUS or MCX103A1110. Two foot
retracted to 10 foot extended. 14-pin straight MS con-
nector on one end and 11-pin, 1/4-turn straight connector
on the other.
6. KG04005
Follower arm assembly. Ten inch wand length.
.
BLN-95-9055
.
Issued: July 1996
